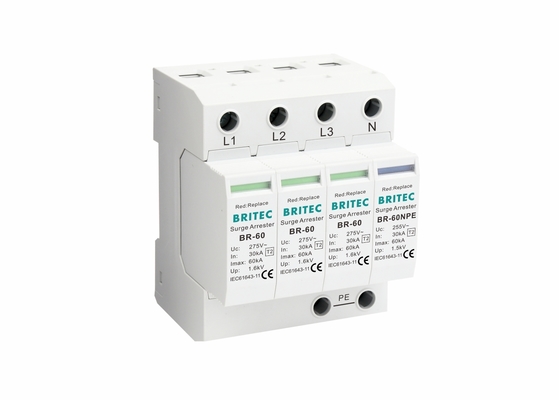

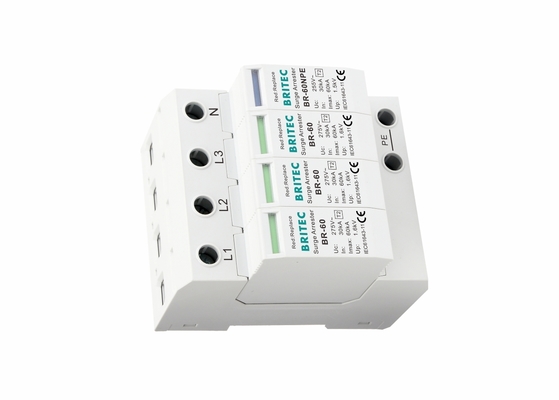

60kA SPD Industrial AC Surge Protection Device Product description:
• The Industrial Power Surge Protector BR-60 3+1 meet the type 2 requirement class according to IEC 61643-11.
• Consisting of a base part and MOV pluggable protection modules.
• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
• Surge protector belonging to (8/20 waveform) for AC 50 / 60Hz, TT and TN-S power supply system.
• If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary.
• It protect to indirect and direct lightning effect or other transient over voltage
• High arresting capacity up to 60 kA (8/20μs)
• Core components are strictly screened, stable performance and reliable operation.
• Visual status display
• Module is designed and installed conveniently and can be replaced directly.
• Available with optional remote signalling
• Vibration-proof
• Labelled connections
• Usable in systems with lightning protection class 2
60kA SPD Industrial AC Surge Protection Device Technology characteristic:
| |
BR-60 3+1 |
| Max. continuous operating a.c. voltage Uc |
275V/255V |
| Voltage protection level Up |
≤1.5kV |
| Nominal discharge current (8/20us) In |
30kA |
| Max. discharge current (8/20us) Imax |
60kA |
| Response time tA |
≤25ns |
| Cross-section area (Min.) |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
| Max. backup fuse |
200A |
| Operating temperature range Tu |
-40℃—80℃ |
| Relative Humidity |
≤95%RH |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
Dimension:
60kA SPD Industrial AC Surge Protection Device Application:
For using in the lightning protection zones concept at boundary 1-2.
60kA SPD Industrial AC Surge Protection Device Working principle of product:
Under normal working condition, the lightning protection module is in a high resistance state. When the power supply line has lightning invasion or operation transient overvoltage, the lightning protection module will immediately pass through the response speed of nanosecond level, and limit the lightning overvoltage or transient overvoltage to the voltage range allowed by the electrical equipment, thus protecting the normal operation of the electronic equipment. After that, the lightning protection module quickly returns to the high impedance state without affecting the normal power supply of the grid.
Same parameters as eaton surge trap type 2 3 phase spd tvss.
Certificate:
Company Information:
Wenzhou Britec Electric Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage.
Workshop:
Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
