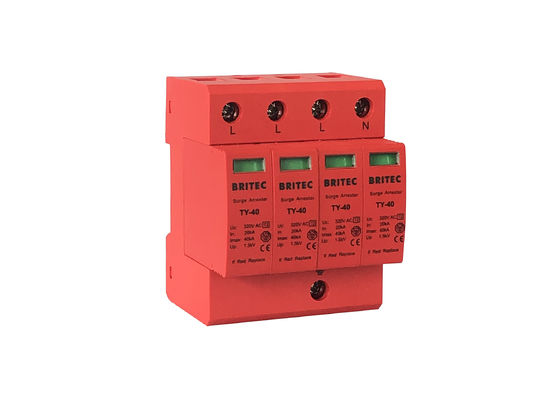

TUV Type 2 Surge Protection Device Arrester IP20 Impact Vibration proof

TUV Type 2 Surge Protection Device Arrester IP20 Impact Vibration proof

  • TUV Type 2 Surge Protection Device Arrester IP20  Impact Vibration proof
  • TUV Type 2 Surge Protection Device Arrester IP20  Impact Vibration proof
TUV Type 2 Surge Protection Device Arrester IP20  Impact Vibration proof
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: TY-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Type: Class II
Max Input Voltage: 150V / 275V / 320V / 385V / 440V In: 20kA
Max Discharge Current: 40kA Poles Number: 4P
Matrial: Thermal Plastic TA: ≤25ns
Tu: -40℃...+80℃ Item: Surge Protective Device
High Light:

TUV Type 2 Surge Protection Device

,

TUV type 2 surge arrester

,

IP20 type 2 surge arrester



Surge Protective Devices Class II Surge Protection Device AC Lightning Protection Device SPD



Surge Protective Devices Class II Surge Protection Device Description:

TY-40 type 2 is designed to protect electric installations and sensitive equipment against indirect surges with ensuring a low protection level (Up).
High discharge capacity and low residual voltage
It is characterized by its capacity to safely discharge current with 8/20 µs wave form.



Surge Protective Devices Class II Surge Protection Device Product Details:



  TY150 40 4P TY275 40 4P TY320 40 4P TY385 40 4P TY440 40 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage           Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)                 In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)                   Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                                   Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                            Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                                 tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                          Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Surge Protective Devices Class II Surge Protection Device Main benefits:

Imax 40kA
Over-temperature protection
IP20, UL94 V0

Operating conditions:

1. Altitude: <2000m
2. Extend range: -40 ~ +80°C
3. Relative air humidity: in the condition of indoor temperature 30% - 90%
4. No conspicuous shaking or impact vibration
5. No explosion risk, no corroding gas or any other medium that may destroy



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment



Certificate:



TUV Type 2 Surge Protection Device Arrester IP20  Impact Vibration proof 0



Company profile:



Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 17 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.



TUV Type 2 Surge Protection Device Arrester IP20  Impact Vibration proof 1



Laboratory equipment:



TUV Type 2 Surge Protection Device Arrester IP20  Impact Vibration proof 2



Shipping:



TUV Type 2 Surge Protection Device Arrester IP20  Impact Vibration proof 3



FAQ:



1. How can I get a quotation?

--Kindly provide us your details request, leave us an inquiry or email and we will response promptly!



2. How to pay for order?

--T/T, Paypal, L/C, ect.



3. How can I trust you and your company?

--We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 17 years ago, customers always make highly complimentary remarks



4. What’s the process of order?

--Send us Inquiry→get quotation→payment done→mass production.



5. When can I expect the customized product to be finished?

--Sample: 10 working days (Standard).

--Bulk order: 20 working days (Standard).



6. Delivery & Shipment

--Air shipping, Couirer (DHL, UPS, FEDEX, TNT, EMS, ect ), Sea shipment(FCL/LCL).
