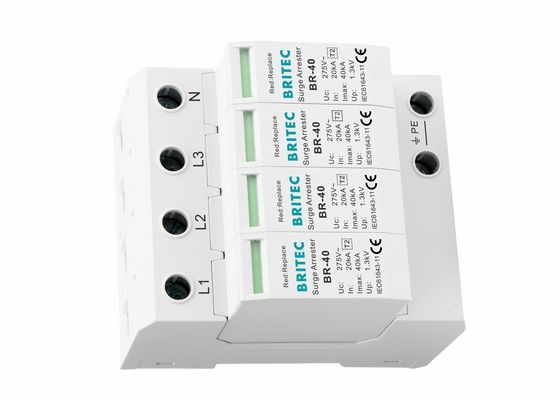

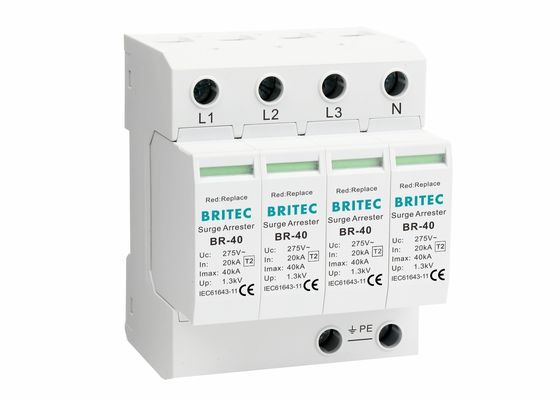

TUV TNS Type 2 Surge Protection Device Pluggable Module Surge Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	TY-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Type:	Power Surge Arrester	Application:	AC System
Material:	Thermal Plastic UL94-V0	Test Standards:	IEC 61643-11 / EN61643-11
AC:	150V / 275V / 320V / 385V / 440V	In:	20kA
Imax:	40kA	Poles Number:	4P
Operating Temperature:	-40℃—80℃	TA:	≤25ns
High Light:	TUV Type 2 Surge Protection Device , TNS Type 2 Surge Protection Device , TNS type 2 surge protector

4 Pole Surge Protection Device 20KA-40KA SPD 320V Lightning Arrester 4P Electric Protector

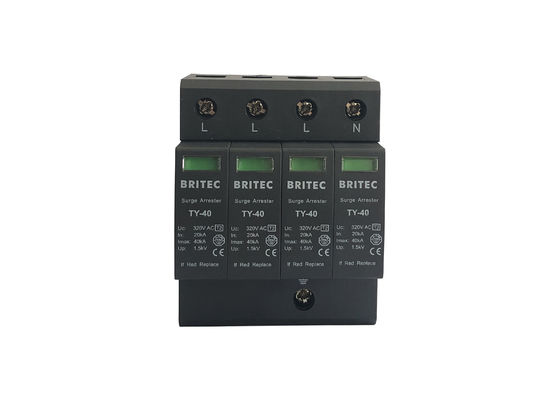

4 Pole Surge Protection Device 20KA-40KA SPD 320V Lightning Arrester Product description:

1. Protecting low voltage equipment from surge damages.

2. Mainly applicable to the residence, the third industry and the industrial and mining enterprises.

3. Applied in modular SPD Class II (Class C) for TNS power supply system.

4. With the power status indication, it indicates the working state of surge protector.

5. Designed according to IEC 61643-1/GB 18802.1.

4 Pole Surge Protection Device 20KA-40KA SPD 320V Lightning Arrester Product Details:

	TY150 40 4P	TY275 40 4P	TY320 40 4P	TY385 40 4P	TY440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm2	4mm2	4mm2	4mm2	4mm2
Cross-section area (Max.)	35mm2	35mm2	35mm2	35mm2	35mm2
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

4 Pole Surge Protection Device 20KA-40KA SPD 320V Lightning Arrester Main character:

1. Three-phase protection for TN-S system

2. With 35mm standard DIN-rail mounting

3. Pluggable module, easy for installation and maintenance

4. Connecting copper stranded conductor is 4~35mm²

5. High discharge capacity, quick response

6. IP20, UL94 V0

7. Green window will change when fault and also provide remote alarm control at the same time

Use of attention:

1. The grounding path should be as short as possible, and the length should not exceed 1.5 meters.

2. The protected equipment must have good grounding, and the grounding impedance is in accordance with the relevant national standards.

3. After correct installation, it can work steadily for a long time. If it is found that the transmission performance of the system is reduced or the signal is interrupted due to the cause of surge protection, it should be maintained or replaced in time.
