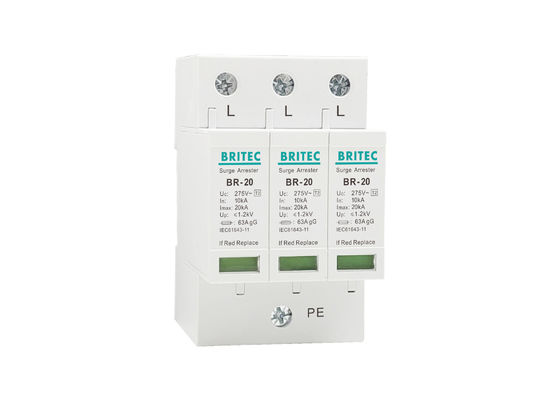

AC 3P 275V Type 2 Surge Protection Device For Power Distribution

Large Image : AC 3P 275V Type 2 Surge Protection Device For Power Distribution

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-20 3P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 25 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	500000 Piece/Pieces Month

Contact Now

AC 3P 275V Type 2 Surge Protection Device For Power Distribution

Description

Item Name:	Surge Protector	Class:	Class II
Pole Number:	3P	In:	10kA
Imax:	20kA	Uc:	275V
Up:	≤1.2kV	Tu:	-40℃-80℃
Application:	AC System	Surge Protector Type:	T2 8/20us
Keyword:	Lightning Protection
Highlight:	SPD Ac surge protector , 275V ac surge protector , SPD ac voltage protector

AC Surge Arresters 3P 10KA~20KA Surge Protection Device General:

1: BR-20 series SPD is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc. power supply system of AC 50/60HZ.

2: Class II / Type 2 surge arrester.

3: Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc.

4: Consisting of a base part and 3 MOV plug-in protection modules.

5: This SPD to protect from direct and indirect lightning impulse and other transient over voltage

AC Surge Arresters 3P 10KA~20KA Surge Protection Device Technology characteristic:

	BR-20 275 3P
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	10kA
Max. discharge current (8/20us) Imax	20kA
Voltage protection level Up	≤1.3kV
Response time tA	≤25ns
Max. backup fuse	63A gG
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Dimension	3mods
Test standards	IEC 61643-1

Dimension:

AC 3P 275V Type 2 Surge Protection Device For Power Distribution 0

AC Surge Arresters 3P 10KA~20KA Surge Protection Device Feature:

- The core parts are metal oxide varistor components with high discharge capacity.

- For using in the lightning protection zones concept at boundary 1-2.

- Low residual voltage and quick response.

- Surge Protection Devices (referred to as SPD’s) provide protection against surge current resulting from direct or indirect lightning strikes or similar surge voltages.

- Reliable control.

- The SPD functions to conduct the surge voltage / current to earth and effectively prevents the destruction of downstream equipment.

- With remote signaling contact for control device.

- Plug in replacement module unit allows for easy replacement when necessary.

- Fault indication via red mark in the inspection window.

AC Surge Arresters 3P 10KA~20KA Surge Protection Device Application:

• It is used to protect the branch distribution of intelligent building, electric power, communication, security and other industries

• Surge protective devices are used for lightning and overvoltage protection in AC50/60Hz, 230/400V.

We can provide products with the same parameters as eaton spd surge protective device, schneider electric spd catalog and phoenix spd catalog.

About us:

Quality is for the sake of our first consideration, we have plenty of various SPD, and our workers work in our factory over 21 years, we are professional in manufacturing various surge protection devices, including the power and signal type.

Our certification:

Packing&Shipping:

Our products will be packed as follow: white box inside, brown carton outside~
Shipping:By air, by sea or by express up to customer.

FAQ:

Q1: Are you trading company or manufacturer?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is within 5 days if the goods are in stock, or it is less than 30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples?

A: Yes, we could offer the sample.

Q4: What is your terms of payment?

A: 30% T/T in advance, balance before shippment.

Q5: What is the MOQ of an order?
A: We accepts 100 unit as trial order.

Q6: How about customization?
A: ODM/OEM business partner will be warmly welcome. Please contact us for more details.

Q7: Where is your factory located?
A: Our factory is located in Wenzhou, Zhejiang, China.
