Name: AC 6kA 230V Led Lights Surge Protection Device Class III Type 3
Brand: BRITEC
SKU: BR275-6-L
Price: 1 USD
Availability: InStock
Rating: 4.9 (140 reviews)

Home Products Surge Protection Device

AC 6kA 230V Led Lights Surge Protection Device Class III Type 3

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR275-6-L

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	LED Surge Protective	Condition:	New
Supply Type:	Manufacturer	Un:	230V
Uc:	275V	In:	3kA
Imax:	6kA	Uoc:	6kV
Housing Material:	UL94-V0	Environment:	Outdoor
High Light:	230V lighting surge protector , 6kA lighting surge protector , 6kA led light surge protector

230 Volt Lights Protector Device AC 6kA Lighting Surge Protection Modules Protecting Your New Luminaires

230 Volt Lights Protector Device AC 6kA Lighting Surge Protection Feature:

• Surge Protectors, capable of managing a surge of up to 6kV.

• Britec offers surge protectors designed to be installed at different points on the lighting network such as streetlights, the base of poles, and street cabinets.

• Inserted between line voltage and the LED driver/module or ballast/lamp system, LED lighting surge protection provides system-wide protection, eliminating the need for internal fixture components that are rated to handle large spikes in input voltage.

230 Volt Lights Protector Device AC 6kA Lighting Surge Protection Product Details:

	BR275-6-L
SPD classification according to EN61643-11	Type 3
SPD classification according to IEC 61643-11	Class III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Max. continuous operating d.c. voltage Uc	300V
Nominal discharge current (8/20us) In	3kA
Combined impulse Uoc	6kV
Voltage protection level Up	≤1. 2kV
Response time tA	≤25ns
Operating temperature range Tu	-40°C~ +80°C
Operating state / fault indication	LED
Enclosure materail	Thermal plastic UL94-V0
Degree of protection	IP20

Dimension:

AC 6kA 230V Led Lights Surge Protection Device Class III Type 3 0

Why is protection needed?

• The increased use of LED based lighting in outdoor applications introduces unique challenges to fixture reliability. While fixture components are designed to handle variations in input power, being connected directly to the main power lines introduces complications when it comes to power surges. Because lightning strikes, switching and other events can be far more severe directly on the power lines, these components need additional protection. An LED surge suppressor protects your most sensitive components against line surges and transients.

230 Volt Lights Protector Device AC 6kA Lighting Surge Protection Description:

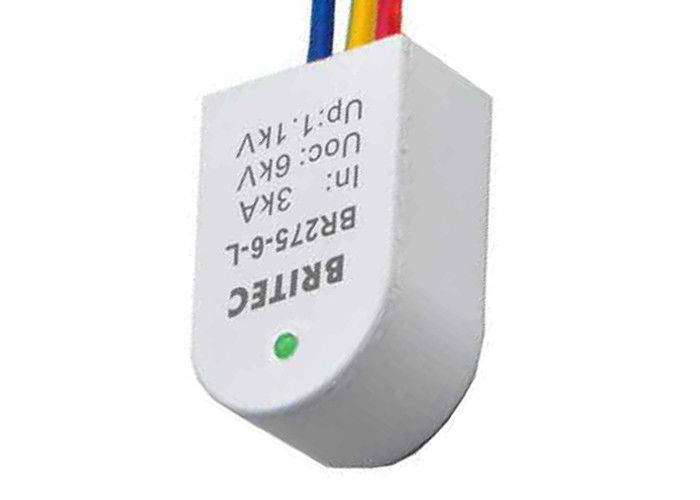

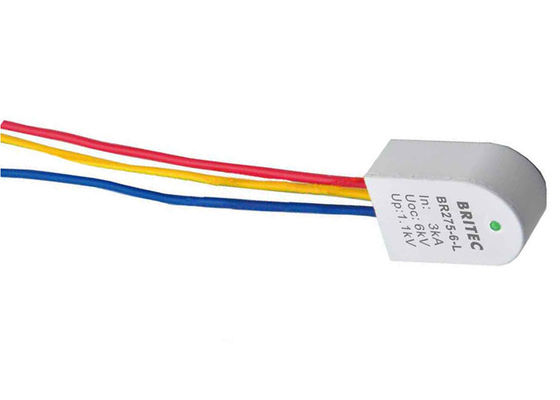

• LED Lights Surge Protection Device BR275-6 series is a self-protected device specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.

• Maximum Lightning Surge Current: 6kA.

• The LED Lights Surge Protection Device features a built-in LED indicator that notifies when replacement of the module is needed.

230 Volt Lights Protector Device AC 6kA Lighting Surge Protection Advantages:

1). We have our own factory.

2). Same design, better quality; Same quality, better price; Same price, better after-sale service.

3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce the defective percentage effectively, control the quality.

4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.

5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish long-term cooperative relationship.

6). Various Style, suitable for customers' demand

7). We can do OEM&ODM, produce according to your original sample or pictures.

Packaging & Shipping:

• Standard packing for keeping your products safe

• Supply the packing as customer’s requirements

• Different transportation ways for your choice.

• FOB Port:Ningbo,Shanghai

• Delivery Time:15-30 days against the deposit.

• Payment Term:30% T/T in advance,the balance before shippment.

AC 6kA 230V Led Lights Surge Protection Device Class III Type 3 1

Company Information:

We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!

Certificate:

Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.

FAQ:

Q1: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years experience.

Q2: Do you have any MOQ for order?
A: MOQ is 100pcs.

Q3: What's your terms of payment?
A: 30% T/T, balance before shipment.

Q4: Can you customize my products or put my logo on your products?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.

Q5: What's the lead time?
A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.
