| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR TY-40R 1P |
| Minimum Order Quantity: | 200 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Test Standards: | IEC 61643-11 / EN61643-11 | Uc: | 150V / 275V / 320V / 385V / 440V |
|---|---|---|---|
| In: | 20kA | Material: | Thermal Plastic UL94-V0 |
| Imax: | 40kA | TA: | ≤25ns |
| Tu: | -40℃...+80℃ | Weight Per Piece: | 0.125kg |
| Permissible Humidity (operation): | 5 % ... 95 % | Mounting On: | 35mm Din Rail |
| High Light: | 40kA Type 2 Surge Protection Device,EN61643-11 Type 2 Surge Protection Device,40kA type 2 spd |
||

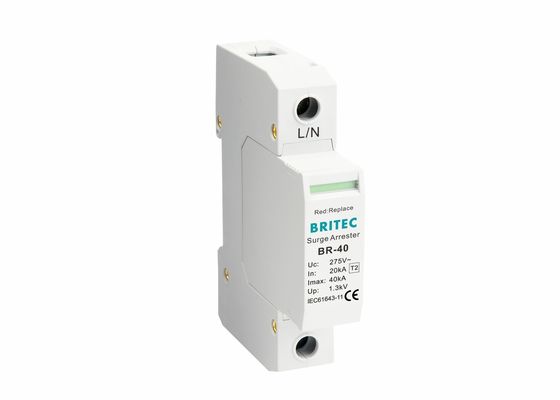

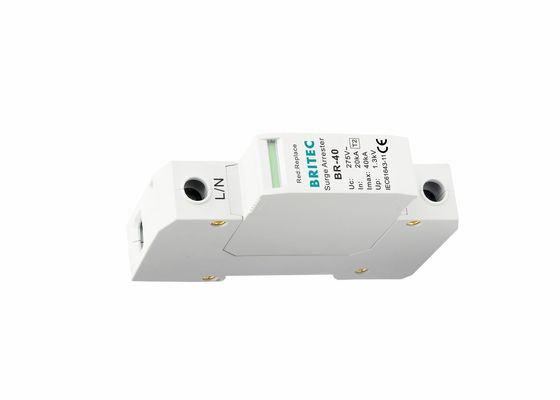

New Surge Protection Device Class C Lightning Protector with 40 kA Discharge According to EN 61643-11
Surge Protection Device Class C Lightning Protector Product Details:
| TY150 40R 1P | TY275 40R 1P | TY320 40R 1P | TY385 40R 1P | TY440 40R 1P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V | 440V |
| Nominal discharge current (8/20us) In | 20kA | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current(8/20μs) Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Max. backup fuse | 125A | 125A | 125A | 125A | 125A |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | ||||
| Enclosure material | Thermal plastic UL94-V0 | ||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
Technology characteristic:
Our Services:
Installation:
Certification:
Company Profile:
Wenzhou Britec Electric Co., Ltd, is specialized in making surge protection device. Our products mainly includes AC power surge protector series, DC surge protective series, data lightning arrester series, LED lightning protection series. Our products are popular in China and also sold to Europe and Southeast Asia, the Middle East, South America and other countries with high appreciation. Britec focuses on improving technical strength to meet special need by our customers. Britec also attaches a great importance to providing professional knowledge and rich culture for the staff, with it's continuous investment in technology and people, it has possesses a number of senior technical and very professional service team. We pay much attention to the quality of the production, from raw material suppliers estimation to the final finished product checking, it has established strict quality assurance system to promise high quality of the products.
Delivery:
Lead time is mostly depends on order quantity. Usually, 20 days and goods in stock can be sent out within 7 working days after the payment reached, by UPS / DHL / TNT / EMS / FedEX or other way you preferred.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: If we have enough stock for delivering within 7 days, if not have stock, mass production is around 20 days.
Q3: What's your after-sales service?
A: We provide technical support for you, also can help you to solve your customers' problem.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by TNT, DHL, UPS, FedEx or EMS. It usually takes 7 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on your product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
