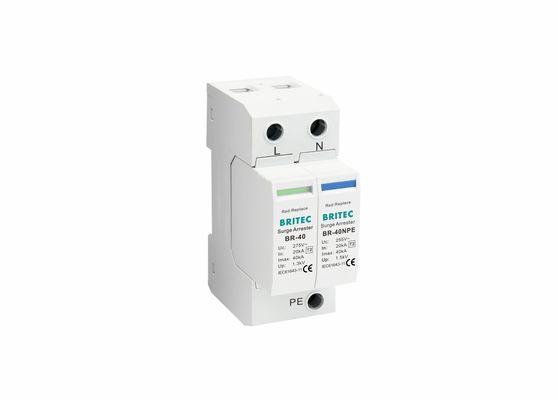

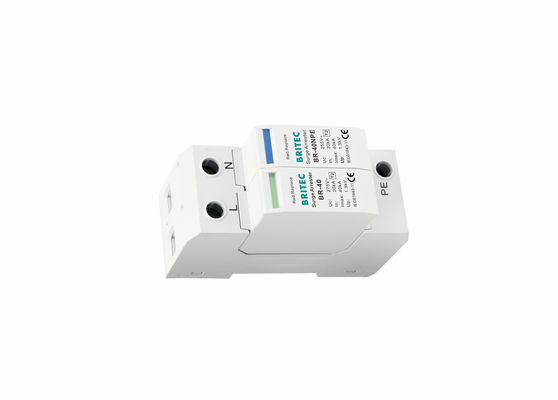

IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase

IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase

  • IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase
  • IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase
IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: TY-40 320 1P+NPE
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Indoor/outdoor: Indoor
Phase: Single Phase Rated Voltage: 230V
Maximum Operating Voltage: 150V / 275V / 320V / 385V / 440V Uc(N-PE): 255V
In: 20kA Imax: 40kA
TA(N-PE): ≤100ns Mounting: Din Rail
Highlight:

IEC 61643-11 Class II Surge Protector

,

230Vac Class II Surge Protector

,

230Vac ac power surge protector



230 Vac MOV 40 kA Power Supply Class II AC Surge Protector DIN-Rail IEC 61643-11



230 Vac MOV 40 kA Power Supply Class II AC Surge Protector Product Description:

These are suitable for second level of protection in supply distribution panels.
TY-40 OEM Customized 320V 1P+NPE Imax 40kA AC Power Supply SPD is designed according to IEC61643 standard.
They are installed at the origin of the low voltage system or close to sensitive equipment to protect against transient voltages coupled into the low voltage network.



Single-Phase MOV 40 kA AC Surge Protection Device Product Details:



  TY150 40 1P+NPE TY275 40 1P+NPE TY320 40 1P+NPE TY385 40 1P+NPE TY440 40 1P+NPE

SPD classification according to EN61643-11

Type 2 Type 2 Type 2 Type 2 Type 2

SPD classification according to IEC61643-11

Class II Class II Class II Class II Class II

Max. continuous operating a.c. voltage               Uc

150V 275V 320V 385V 440V

Max. continuous operating a.c. voltage[N -PE]    Uc

255V 255V 255V 255V 255V

Nominal discharge current (8/20us)                      In

20kA 20kA 20kA 20kA 20kA

Max. discharge current(8/20μs)                        Imax

40kA 40kA 40kA 40kA 40kA

Voltage protection level                                       Up

≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV

Voltage protection level 5kA                                Up

≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV

Voltage protection level [N-PE]                            Up

≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV ≤1.5kV

Follow current extinguishing capability[ N-PE]a.c.Ifi

100Arms 100Arms 100Arms 100Arms 100Arms
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                                      tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Response time [N-PE]                                          tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
Operating temperature range                               Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃

Operating state / fault indication

   green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:



IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase 0



230 Vac MOV 40 kA Power Supply Class II AC Surge Protector KEY FEATURES:

End of Life Indicator (Red & Green).
It is accordance with the criterion of low-voltage Surge Protective Devices-Part 1: Surge Protective Devices Performance Requirements and Test Method of Low-voltage Power Distribution System.
Mechanically coded cartridges to avoid cartridge replacement errors.
With good sealing, it is designed as module and 35mm DIN-Rail Mounting.
Dual position of Din-rail clip for Installation.
Temperature control circuit breaker and built-in over-current protective circuit, the modular SPD can release automatically to avoid fire danger when it breaks down.
Protection in small module width.
Our AC surge protector / SPD provides overvoltage protection for your equipment and supports long-term system reliability by absorbing high amounts of transient energy while maintaining a low clamping voltage.
Faulty cartridges can be replaced without changing the entire SPD.
This industrial surge protector for AC helps prevent damage from VAC overvoltage that can be caused by lightning surge and other strong electrical power spikes.
Cartridges can be replaced with mains voltage ON.
Our electrical surge protection unit is rated for indoor use.
All cartridges are marked with characteristics for ease of maintenance.
TY-40 TVSS indoor AC surge protector is for 230 Vac applications
Option to remotely monitor the status of the surge protector.
Single-phase surge protector din-rail for lightning protection and other spikes in electrical power has maximum amperage of 40 kA.
Simplified cabling thanks to a single terminal for monitoring all poles.

230 Vac MOV 40 kA Power Supply Class II AC Surge Protector Applicable Scope:

It can be installed in the low voltage power distribution cabinet/box of buildings, to protect all kinds of power equipment in the single phase power distribution system between LPZ1 and LPZ2.
For example, low voltage general electricity Cabinet and/or distribution board of buildings, outdoor electricity cabinet/distribution box, any circumstance need to record the lightning leakage, power supply system: TT, TN.

230 Vac MOV 40 kA Power Supply Class II AC Surge Protector Advantage:

1. CE,TUV,CB,ISO9001 Certificates
2. More than 17 years, manufacture experience
3. 90% of our products are exported to Europe, south America, Africa and Asian other countries.
4. Strong technological capacity, advanced production testing equipment.



About us:



Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.



IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase 1



Shipping:



IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase 2



Certificate:



IEC 61643-11 DIN Rail 230Vac MOV Class II Surge Protector Single Phase 3



FAQ:





1. When can I pick up my goods after purchase?

A: We usually arrange the delivery within 30 work days after purchase of SPDs. It takes about 7 work days to your place by express. If you want further info, you can contact us.



2: Can we get samples and how long can get them?
A: Yes, samples could be offered, delivery time 10 days. But the sample fee and freight for express is on buyer’s account. You can also call your local express to pick up samples from our office.


3: Can you produce customized product?
A: Yes. The color, logo could all be customized according to your personalized requirements.



4: What is your MOQ?
A: Our MOQ is 100pcs, depends on the product you need.



5: Which payment way is workable?
A: T/T, PayPal for your selection.
