Name: 4P 275V Transient Voltage SPD Type 2 Surge Protection Device 40kA
Brand: BRITEC
SKU: TY-40 4P
Price: 1 USD
Availability: InStock
Rating: 4.5 (174 reviews)

Home Products Type 2 Surge Protection Device

4P 275V Transient Voltage SPD Type 2 Surge Protection Device 40kA

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	TY-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	150V / 275V / 320V / 385V / 440V
In:	20kA	Imax:	40kA
Poles Number:	4P	TA:	≤25ns
Mounting On:	35mm Din Rail	Color:	White
Power:	AC	Item:	Surge Arrester
High Light:	4P Type 2 Surge Protection Device , 275V Type 2 Surge Protection Device , 275V spd surge protection device

40KA type 2 Single Phase Surge Protective Devices Transient Voltage Protection Din Rail

40KA type 2 Single Phase Surge Protective Devices Transient Voltage Protection Feature:

• The surge arrestors TY-40 meet the type 2 requirement class according to IEC 61643-11.

• 35mm electrical lead rail installation

• These devices protect low-voltage consumer systems from overvoltage of all types and are available in single-pole to four-pole versions.

• 8/20us wave form, low residual voltage

• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.

• Remote signaling port, remote alert

• If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary.

40KA type 2 Single Phase Surge Protective Devices Transient Voltage Protection Product Details:

	TY150 40 4P	TY275 40 4P	TY320 40 4P	TY385 40 4P	TY440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

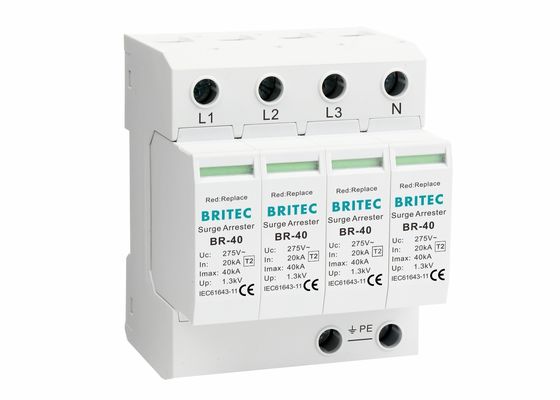

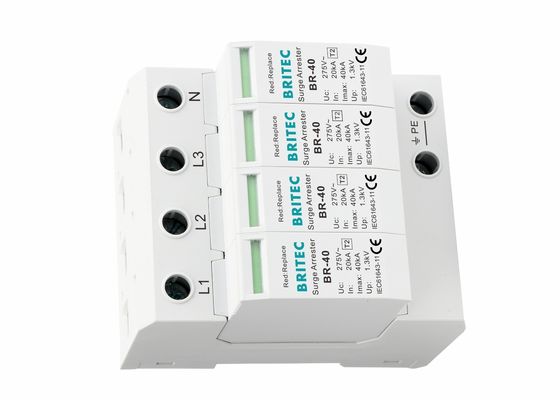

Product picture:

4P 275V Transient Voltage SPD Type 2 Surge Protection Device 40kA 0

40KA type 2 Single Phase Surge Protective Devices Transient Voltage Protection Description:

+ Connectable surge arrestor

+ Built in over current fuse protector, and thermal induced breaker

+ High arresting capacity

+ High energy SPD, no follow current

+ Visual status display

+ Degradation automatic release

+ Available with optional remote signalling

+ TY-40 module series surge protector (SPD) is designed according to the IEC Standard

+ Vibration-proof

+ The maximum discharging currents (IMAX 8/20) of each line could be 40kA.

+ Simple standard hat rail mounting

+ It is suitable for the 220/380V power distribution system lightning protection in all classes.

+ Labelled connections

+ Britec Company can manufacture various products with different working Voltage classes and lightning current discharge capacity.

+ Voltage encoding

40KA type 2 Single Phase Surge Protective Devices Transient Voltage Protection Applicable Scope:

1. Low voltage main power distribution cabinet or distribution box of the buildings

2. Type 2 Surge Arresters provide protection against overvoltage originating from switching and the secondary effects of lightning strikes.

3. Floor distribution box of buildings

4. These devices will discharge current having an 8/20μs waveform and provide a low voltage protection level of ≤1.5kV (Up) for sensitive electronic equipment exceeding the requirements for category II equipment identified

5. Out-door power distribution cabinet/Box.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.

• In areas where storms are frequent, it is strongly recommended to install additional protection systems.

Certificate:

Company profile:

Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 17 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.

4P 275V Transient Voltage SPD Type 2 Surge Protection Device 40kA 2

Laboratory equipment:

Shipping:

FAQ:

1. How can I get a quotation?

--Kindly provide us your details request, leave us an inquiry or email and we will response promptly!

2. How to pay for order?

--T/T, Paypal, L/C, ect.

3. How can I trust you and your company?

--We are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 17 years ago, customers always make highly complimentary remarks

4. What’s the process of order?

--Send us Inquiry→get quotation→payment done→mass production.

5. When can I expect the customized product to be finished?

--Sample: 7 working days (Standard).

--Bulk order: 20 working days (Standard).

6. Delivery & Shipment

--Air shipping, Couirer (DHL, UPS, FEDEX, TNT, EMS, ect ), Sea shipment(FCL/LCL).
