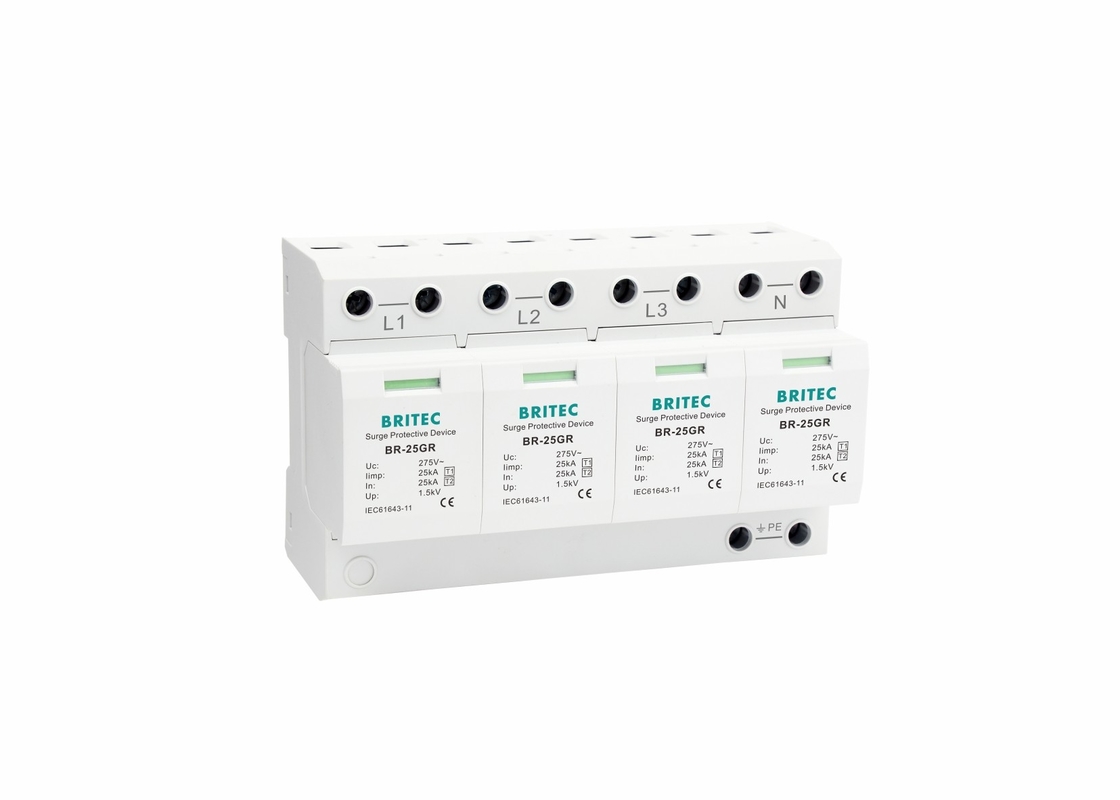

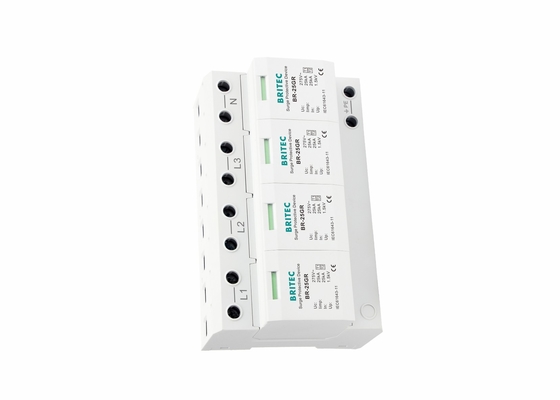

Name: IP20 25kA Type 1 SPD Class B Surge Protection Surge protective Device
Brand: BRITEC
SKU: BR-25GR 4P
Rating: 5 (170 reviews)

Home Products Surge Protection Device

IP20 25kA Type 1 SPD Class B Surge Protection Surge protective Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-25GR 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Product Name:	Surge Protective Device	Class:	SPD Classification According To EN61643-11 Type One
Pole Number:	4P	Uc:	385V
Iimp:	25kA	In:	25kA
Protection:	IP20	Tu:	-40℃-80℃
Warranty:	2 Years	Type:	Ac Surge Protector
Highlight:	25kA Class B Surge Protection Device , IP20 Class B Surge Protection Device , 25kA Type 1 SPD

Three Phase Class 1 SPD Surge Protection AC Class B Surge Arrester

Three Phase Class 1 SPD Surge Protection Product Description:

Type 1 Surge Protection Devices provide input protection for plants in areas with high levels of lightning strikes, and are typically installed in main distribution switchboards to protect against direct lightning strikes. In order to ensure optimum protection, Type 1 Surge Protection Devices discharge very high currents to earth, providing the best possible peak voltage protection (Up) to the installation. Our all products made from high quality of raw material and advance technology.

Three Phase Class 1 SPD Surge Protection Technology characteristic:

Specification	BR-25GR 4P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to EN61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	385V
Lightning impulse current (10/350µs) limp	25kA
Norminal discharge current (8/20µs) In	25kA
Maximum discharge current (8/20µs) Imax	100kA
Voltage protection level Up	≤2.0kV
Follow current extinguishing capability a.c. lifi	5kA rms
Max. backup fuse	315A gG
Response time tA	≤100ns
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20

Dimension:

IP20 25kA Type 1 SPD Class B Surge Protection Surge protective Device 0

Three Phase Class 1 SPD Surge Protection Feature:

• The impulse current of 25kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection.

• Visual indication: LED turns red when replacement is required

• Low residual voltage and quick response.

• Dual position of Din-rail clip.

• The early creation of the electric arc by its electronic ignition device reduces the protection level Up to an optimum value of 2.0kV.

• Lightning surge protector with compact construction design

• Spark gap technology

• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.

Type 1 Lightning Current Arresters are designed for use at the origin of the electrical installation in the main switchboard, for high risk areas that have the probability of a direct lightning strike:

• Where the occurrence of the direct lightning strike to the overhead lines between the last pole and the entrance of the installation is to be taken into consideration.

• Or where the structure is equipped with lightning rods.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Installation:

• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.

• Suitable as the first step of protection in incoming power supply panels and areas with greater exposure to the atmosphere, where installations are usually provided with an external lightning protection system.

• Type 1 is placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

About us:

Wenzhou Britec Electric Co.,Ltd. founded in 2003. After 17-years developing, Britec has become a professional SPD supplier who is focusing on offering excellent ONE-STOP service. Our ONE-STOP concept is not only supplying the whole range of products which are needed by customers with competitive pricse, but also with reliable quality and stable delivery time. With our experienced team, we are helping customers with different kinds of solutions on their projects. Now we have more than 50 customers from more 21 countries around the world. Our codes of conduct is to win-win with our customers based on our loyal service, so we can be your best partner in China. Welcome to visit our company and it will be a great honor that we can get your precious suggestion to us. Any demand or interest to surge protection device, please do not hesitate to contact us for more detail information. Thank you!

IP20 25kA Type 1 SPD Class B Surge Protection Surge protective Device 1

Certificatte:

Shipping:

FAQ:

Q1: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What about the lead time?
A: Sample needs 7 days, mass production time needs 20 days for order quantity more than.

Q3: Do you have any MOQ limit for a order?

A: Yes, our MOQ is 100pcs.

Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by TNT, DHL, UPS, FedEx etc. It usually takes 7 days to arrive. Airline and sea shipping also optional.

Q5: How to proceed an order for product?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
