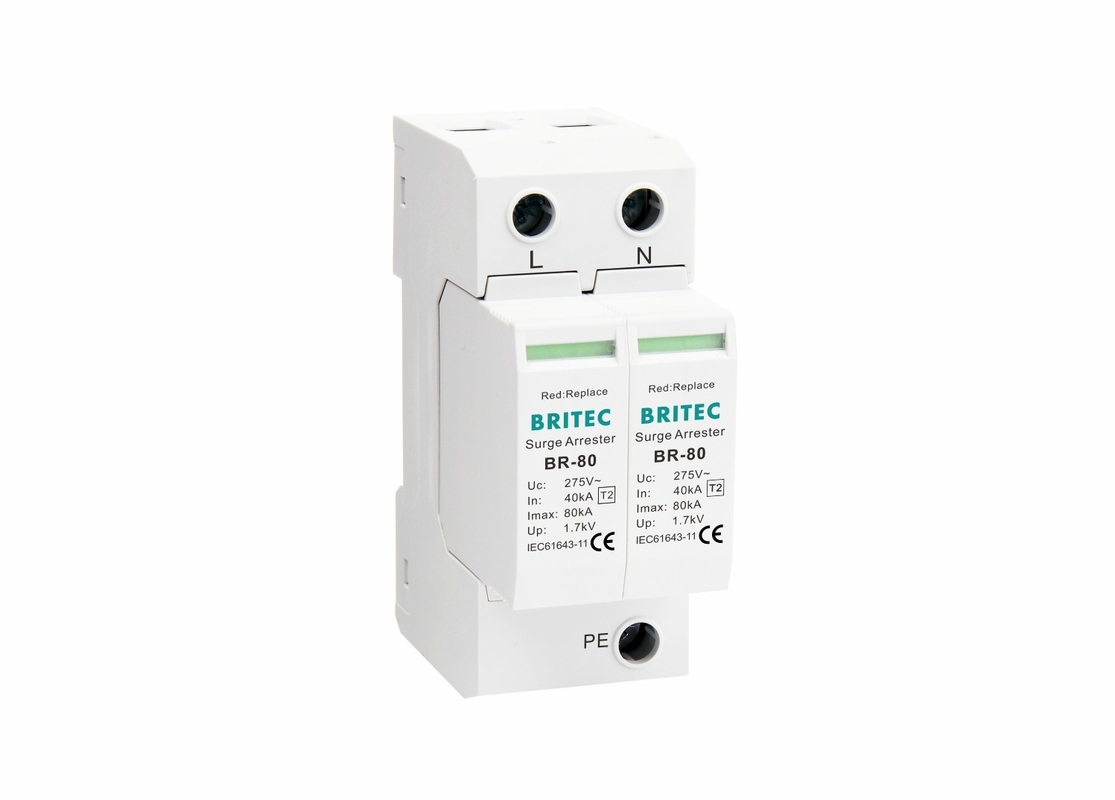

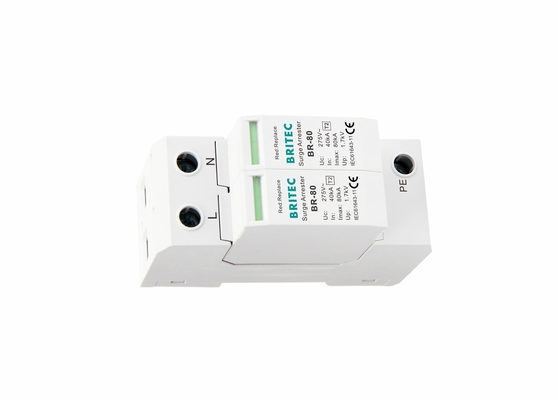

80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester

80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester

  • 80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester
  • 80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester
80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-80 275 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Device Type: 2P Surge Protection Device
Phase: Single Phase Pole Number: 2P
AC: 275V In: 40kA
Imax: 80kA Material: Thermoplastic UL94-V0
Protection: IP20 Tu: -40℃—80℃
Highlight:

2P Lightning Surge Protector

,

80ka Lightning Surge Protector

,

80ka class 2 surge arrester

80ka 2P 275V AC Class II Surge Protection Device SPD for Industrial Power Lightning Protector



80ka 2P 275V AC Class II Surge Protection Device SPD Description:

Class II AC surge protector designed for low-voltage power supply system protection against surges at the boundaries from lightning protection zone 1-2 and higher.
Type 2 is designed to protect electric installations and sensitive equipment against indirect surges with ensuring a low protection level (Up).
Quick thermal response and perfect circuit cutoff function due to special thermal disconnector design with arc extinguishing device.
It is characterized by its capacity to safely discharge current with 8/20 µs wave form.
2 poles.
Employs 'MOV' metal oxide varistor technology
High surge current capability with 8/20 us waveform, Imax 80kA.
The surge protector has a large flow rate, a low residual voltage and a fast response time
Visual status indication and optional remote signal contact.
The structure is rigorous and the work is stable and reliable
Comply with IEC 61643-11.


80ka 2P 275V AC Class II Surge Protection Device SPD Parameters:



Model Name BR-80 275 2P
Brand BRITEC
Product Type Surge Protection Device
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max. Continuous Voltage                                                                       Uc 275V
Max. discharge current (8/20µs)                                                         Imax 80kA
Nominal discharge current (8/20µs)                                                       In 40kA
Voltage protection level                                                                          Up ≤1.7kV
Max. backup fuse 200A gG
Response time                                                                                        tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Manufacturer Guarantee 2 Years Guarantee
No. of Phases Single-Phase
Number of Poles two poles
Operation temperature range -40 ~ +80 degree
Remote control contacts Optional



Dimension:



80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester 0



80ka 2P 275V AC Class II Surge Protection Device SPD Application:

AC mains, Service entrance, AC/DC Drives, Process industries, PLC etc.
T2 SPDs are available in specific multi-pole versions for all distribution systems.

Selection of surge protector:

The grading of the surge protector (commonly known as lightning protection) is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.

Our Services:

1) Reply inquiry in 24 hours.
2) Answer your question detailed.
3) Freight forwarder: faster, safer, and convenient.
4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.



Company profile:



Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.



80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester 1



Our certificate:



80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester 2



Packing&Shipping:


Our products will be packed as follow: box inside, carton outside~
Shipping: By sea, by air or by express up to customer



80ka 2P 275V AC Class II Lightning Protection Surge Protector Arrester 3



FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer.



Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. Or it is 15~30 days if the goods are not in stock, it is according to quantity.



Q: How about discount?
A: Price is based on products and order quantity.



Q: Do you accept sample order?
A: Yes sure, please contact us for details.
