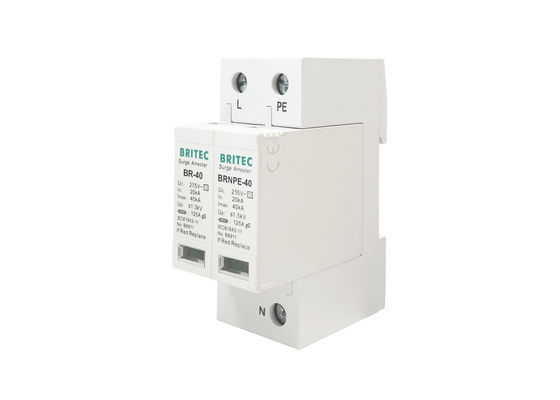

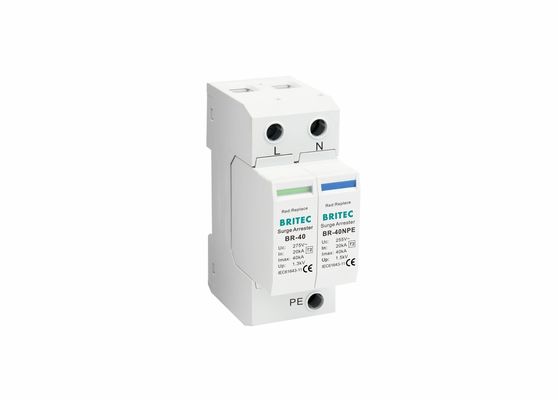

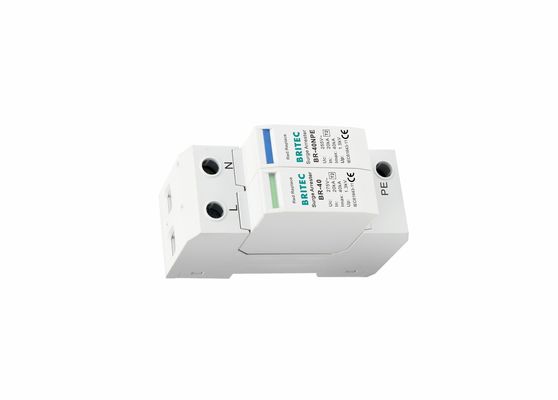

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-40 1P+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Indoor/outdoor:	Indoor
Service Type:	One Phase	Uc:	150V / 275V / 320V / 385V / 440V
Uc(N-PE):	255V	In:	20kA
Imax:	40kA	TA:	≤25ns
TA(N-PE):	≤100ns	Mounting:	Din Rail
High Light:	275V mov surge arrester , Class C mov surge protector , 40kA mov protection device

Single-Phase MOV 40 kA AC Surge Protection Device SPD Class II DIN-Rail IEC 61643-11

Single-Phase MOV 40 kA AC Surge Protection Device Product Description:

• 40kA 275V Type 2 Class C AC Surge Protection Device.

• Our offered surge protector is designed by utilizing the top grade material and the most advanced techniques.

• Surge Arrester for Single Phase Supply.

• Single phase.

• Surge voltage arrester for mounting on DIN rail.

• Low residual voltage and quick response

• Also available in different voltage rating.

• Reliable control thanks to Thermo Dynamic Control disconnector.

Single-Phase MOV 40 kA AC Surge Protection Device Product Details:

	BR150 40 1P+NPE	BR275 40 1P+NPE	BR320 40 1P+NPE	BR385 40 1P+NPE	BR440 40 1P+NPE
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Max. continuous operating a.c. voltage[N -PE] Uc	255V	255V	255V	255V	255V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability[ N-PE]a.c.Ifi	100Arms	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8251	B8253	B8255	B8257	B8370
Order Code (With remote signaling)	B8252	B8254	B8256	B8258	B8371

Dimension:

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester 0

Single-Phase MOV 40 kA AC Surge Protection Device Use:

• A surge protector attempts to limit the voltage supplied to an electric device by either blocking or shorting to ground any unwanted voltages above a safe threshold.

• For using in the lightning protection zones concept at boundary 1-2.

• Prevent all kinds of electronic and electrical equipment from being damaged by lightning overvoltage.

• Use to prevent electrical equipment due to lightening

• To protect electrical appliances.

• We offer this surge protector is available for single phase systems.

Single-Phase MOV 40 kA AC Surge Protection Device Features:

• Strong construction.

• With remote signaling contact for control device.

• Easy to operate.

• Fault indication via red mark in the inspection window.

• Effective functioning

• Minimal maintenance.

• Precisely designed

• Excellent performance

• Longer life

Single-Phase MOV 40 kA AC Surge Protection Device Advantage:

1. CE,TUV,CB,ISO9001 Certificates

2. More than 17 years, manufacture experience

3. 90% of our products are exported to Europe, south America, Africa and Asian other countries.

4. Strong technological capacity, advanced production testing equipment.

About us:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester 1

Shipping:

Certificate:

40kA 275V Type 2 Class C Mov Surge Protector Lightning Arrester 3

FAQ:

1. When can I pick up my goods after purchase?

A: We usually arrange the delivery within 30 work days after purchase of SPDs. It takes about 7 work days to your place by express. If you want further info, you can contact us.

2: Can we get samples and how long can get them?
A: Yes, samples could be offered, delivery time 10 days. But the sample fee and freight for express is on buyer’s account. You can also call your local express to pick up samples from our office.

3: Can you produce customized product?
A: Yes. The color, logo could all be customized according to your personalized requirements.

4: What is your MOQ?
A: Our MOQ is 100pcs, depends on the product you need.

5: Which payment way is workable?
A: T/T, PayPal for your selection.
