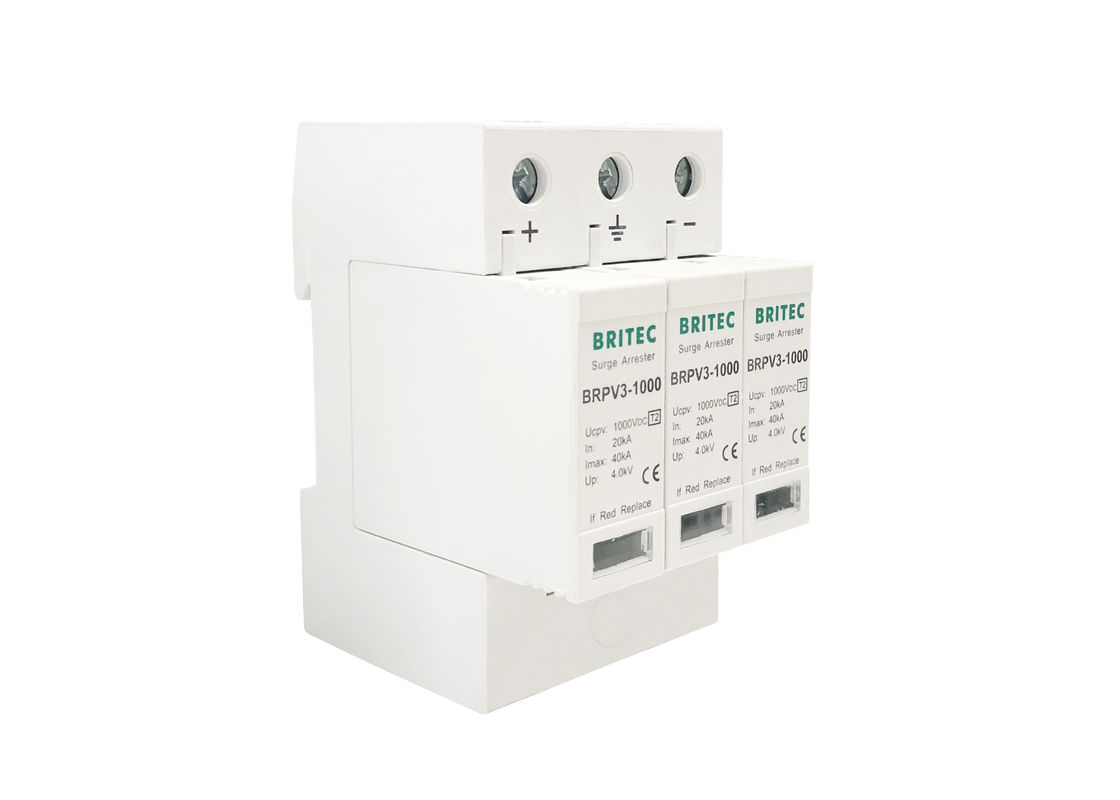

1000V Class II Power DC Lightning Arrester SPD Type 2 Solar PV Surge Protection
1000V Class II Power DC Lightning Arrester SPD Description:
• BRPV series PV Surge Protective Device 40KA DC 1000V SPD suitable for the new energy wind power generation system, its working voltage covers 600V, 1000Vand 1500V.
• BRPV3-1000 type 2 solar PV surge arresters/SPD is designed to protect DC powered equipment against lightning surge voltages in photovoltaic power supply network, such as inverters, combiner boxes and charge controllers.
• The protection flow is large, the residual pressure is very low, and the response time is fast.
• It utilizes high energy metal oxide varistors/MOV
• Photovoltaic DC surge protector is a lightning protection product designed for the solar photovoltaic system based on the relevant standards.
• With the power status indication, it indicates the working state of surge protector.
• It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.
• It has high lightning discharge capability, and the maximum discharge current of each module reaches 40KA.
1000V Class II Power DC Lightning Arrester SPD Product Details:
| |
BRPV3 1000 |
| SPD classification according to EN61643-11 |
Type 2 |
| SPD classification according to EN50539-11 |
Class II |
| Max. continuous operating dc voltage Ucpv |
1000V |
| Nominal discharge current (8/20us) In |
20kA |
| Max. discharge current (8/20us) Imax |
40kA |
| Voltage protection level [(DC+/DC-)→PE] Up |
≤4.0kV |
| Response time tA |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
| Cross-section area (Min.) |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermal plastic UL94-V0 |
| Degree of protection |
IP20 |
| Order Code |
B8010 |
| Order code(With remote signal) |
B8012 |
Technology characteristic:
1000V Class II Power DC Lightning Arrester SPD Features:
• Module design, convenient installation, with easy electric maintains operation.
• Type 2 surge protector for photovoltaic system
• The lightning protector uses the multilevel protection circuit, selects the brand components and uses the advanced production technology.
• Imax - 40kA/pole (8/20 waveform)
• Ucpv - 1000V DC
• Up -4.0kV
• Built-in over current and over heat, temperature control open circuit technology
• High energy anti-surge components MOV
• Adopt independent intelligence property right and high performance sensitivity resistance plates
• Failure status indicator, green/red
• Small creepage current, fast response time, remnant low voltage.
• DIN rail mounting, pluggable module, convenient replacement
• With remote connection, can realize remote control.
1000V Class II Power DC Lightning Arrester SPD Use of attention:
1. Connect the grounding wire of the lightning protector to the ground wire of the lightning protection system.
2. Surge protector is installed with 35MM standard guide rail
3. Determine the discharge current path
4. Lightning arrester must be reliably connected to the ground wire of the lightning protection system, and the connection line is short, thick and straight.
Working principle of product:
In the solar photovoltaic system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters, which will cause serious consequences for the operation of the photovoltaic system. The photovoltaic lightning arrester is specially developed for this purpose. The lightning protection module of the DC power supply, once the high voltage, and endanger the insulation of the protected equipment, the lightning arrester acts immediately, and the high voltage impact current is directed to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.
