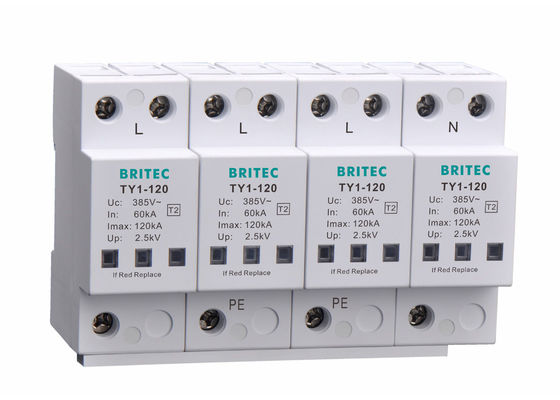

IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD

IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD

  • IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD
  • IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD
IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: TY1-120 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: AC SPD Type: 4 P Surge Protection Device
Safety Standard: IEC 61643-11 Modules: 4
Rated Voltage: AC 385V Imax: 120kA
Installation: Din Rail Weight (g): 1000G
Application: AC System Size: Small
Highlight:

120ka power Surge Protection Device

,

IEC61643-11 power Surge Protection Device

,

120ka MOV Surge Protection Device

120ka Power Surge Protector 3-Phase MOV Class II SPD 385 Vac Voltage Device


120ka Power Surge Protector 3-Phase MOV Class II SPD Details:

120kA 385V Type 2 Class C AC Surge Protection Device, Surge Arrester, AC SPD, Surge Arrester for 3 Phase Supply.
Surge Protection Device for transient electrical over-voltages.
Core components are strictly screened, stable performance and reliable operation.
Class 2 SPD for typical waveforms of 8/20 μs
Surge voltage arrester for mounting on 35 din rail.
End of Life indicator light.
Option to remotely monitor the status of the surge protector.
Employs 'MOV' metal oxide varistor technology.
A surge protector attempts to limit the voltage supplied to an electric device by either blocking or shorting to ground any unwanted voltages above a safe threshold.
TY1-120 series surge protective device basis GB18802.1 as well as IEC61643-1 design and production, suitable for AC TT, TN and other power systems. Prevent all kinds of electronic and electrical equipment from being damaged by lightning overvoltage.
Also available in different voltage range.



120ka Power Surge Protector 3-Phase MOV Class II SPD Technology characteristic:


 TY1-120 4P
SPD classification according to IEC61643-11Class II
Max. continuous operating a.c. voltage                  Uc385V
Nominal discharge current (8/20us)                        In60kA
Max. discharge current(8/20μs)                          Imax120kA
Voltage protection level                                          Up≤2.5kV
Max. backup fuse315A gG
Degree of protectionIP20
Enclosure materialThermal plastic UL94-V0
Response time                                                        tA≤25ns
Operating temperature range                                 Tu-40℃-80℃
Relative Humidity≤95%
For mounting on35mm Din rail
Color  White, Gray, Black, Red, Yellow and Customized
Operating state / fault indicationgreen / red
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
OEMYes


Dimension:

IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD 0



120ka Power Surge Protector 3-Phase MOV Class II SPD Features:

Easy to operate.
The surge protector has a large flow rate, a low residual voltage and a fast response time.
Low output residual pressure to further ensure safety.
With a power status indication indicating the working status of the surge protector.
Long service life.
The structure is rigorous and the work is stable and reliable.
Built-in overheating and temperature control circuit breaker
Excellent functionality.

120ka Power Surge Protector 3-Phase MOV Class II SPD Product introduction:

Britec provides safety protection for all kinds of electronic equipment, instruments and communication lines. It is mainly used to limit overvoltage and discharge electric current.
Surge protector is usually connected with protected equipment. When overvoltage is generated, it can play the role of shunting and voltage limiting. To prevent excessive current and voltage damage to equipment, play the role of protection devices.

Notice of product:

1. Determination of discharge current path
2. Grounding lines should be short, thick and straight, so as to reduce the influence of distributed inductors on the ability of lightning electromagnetic pulse.
3. This product needs no special maintenance. The lightning arrester should be checked regularly, especially in the thunderstorm season and the whole thunderstorm period. When the system fails to suspect the lightning arrester, the lightning arrester can be dismantled and rechecked. If the system is restored to normal after the restoration to the state before use, the lightning arrester has been damaged and must be replaced immediately.


Our Company:

Wenzhou Britec Electric Co.,Ltd. established since 2003, is one professional SPD manufacturer in Zhejiang Province, China. We are located in Yueqing city. We specialize in design,manufacture and sell all variety of high quality surge protection products. Our specialty is to provide the customized products, and OEM/ODM products, etc. Here we are sincerely hope to establish one good long-term business relationship with customer through this opportunity, based on equal, mutual beneficial and win-win business from now till the future.

IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD 1

Production process:

IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD 2

Certification:

IEC61643-11 120ka 3 Phase MOV Power Surge Protection Device SPD 3

FAQ:

1)Q: Who are we ?
A: We are a professional factory, we currently have customers in more than 50 countries and regions around the world.

2)Q: Can I print our logo on the products and change the color of products?
A: Yes,all color and pattern available, we can also do OEM servise.

3)Q: Can i get a sample?
A: Of course, but you may need to pay sample charge which will be returned after any order signed.
4)Q: What certificates your products have?
A: Most of our products have CE, TUV and CB certificates. Don't worry about the quality!

5)Q: What's your delivery time?
A: Usually it can be within 30 days!

6)Q: What is your accept payment method?
A: We can accept TT, Paypal. 30% deposit and 70% before shipment!
