110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation

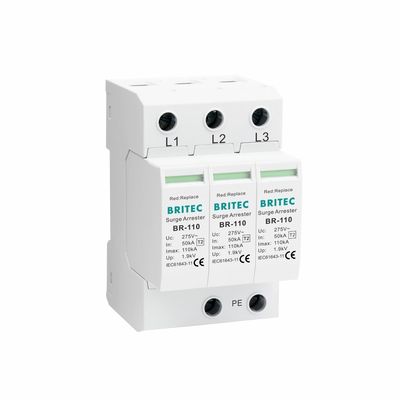

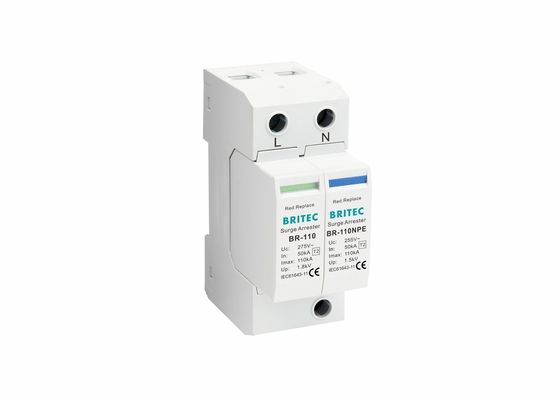

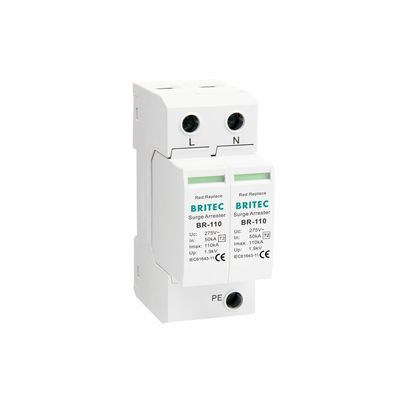

Large Image : 110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CE/CB
Model Number:	BR-110 385 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 30 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	100000 Piece/Pieces Month

Contact Now

110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation

Description

Connection Diagram:	TN-S	Uc:	385 V
In:	50 KA	Imax:	110 KA
Up:	2.5 KV	Modules:	4
Installation:	Din Rail	Weight (g):	1000G
Application:	AC System	Size:	Small
Highlight:	120ka power Surge Protection Device , IEC61643-11 power Surge Protection Device , 120ka MOV Surge Protection Device

IEC61643-11 110ka 3 Phase MOV Power Surge Protection Device SPD

Type 2 AC surge arrester designed for low-voltage power supply system protection against surges at the boundaries from lightning protection zone 1-2 and higher. This surge protection device provides reliable protection against transient electrical over-voltages.

Product Specifications

Model	BR-110 385 4P
SPD Classification (IEC61643-11)	Class II
Max. Continuous Operating Voltage (Uc)	385V
Nominal Discharge Current (8/20μs) In	50kA
Max. Discharge Current (8/20μs) Imax	110kA
Voltage Protection Level Up	≤2.5kV
Max. Backup Fuse	160A gG
Degree of Protection	IP20
Enclosure Material	Thermoplastic UL94-V0
Response Time tA	≤25ns
Operating Temperature Range	-40℃ to 80℃
Relative Humidity	≤95%
Mounting	35mm Din rail
Available Colors	White, Gray, Black, Red, Yellow and Customized
Operating State / Fault Indication	Green / Red
Cross-section Area (Min.)	4mm²
Cross-section Area (Max.)	35mm²
OEM Service	Yes

Product Dimensions

Key Features

Easy to operate and install
High discharge capacity with low residual voltage
Fast response time for optimal protection
Visual power status indication
Long service life and reliable performance
Rugged construction with stable operation
Built-in overheating and temperature control circuit breaker
Remote monitoring capability

Product Introduction

Britec surge protection devices provide comprehensive safety protection for electronic equipment, instruments, and communication lines. These devices are primarily used to limit overvoltage and discharge electric current, effectively shunting and voltage limiting during surge events to prevent damage to connected equipment.

Installation & Maintenance Notice

Proper determination of discharge current path is essential
Grounding lines should be short, thick, and straight to minimize distributed inductance effects
Regular inspection recommended, especially during thunderstorm seasons
If system failure is suspected, inspect the surge protector and replace if damaged

About Our Company

Wenzhou Britec Electric Co., Ltd., established in 2003, is a professional SPD manufacturer located in Zhejiang Province, China. We specialize in designing, manufacturing, and selling high-quality surge protection products, including customized and OEM/ODM solutions.

Production Process

Certifications

Frequently Asked Questions

Who are we?

We are a professional factory with customers in more than 50 countries and regions worldwide.

Can I print our logo on the products and change the color?

Yes, all colors and patterns are available, and we provide comprehensive OEM services.

Can I get a sample?

Yes, samples are available with a charge that will be refunded after order placement.

What certificates do your products have?

Our products hold CE, TUV, and CB certificates, ensuring high quality standards.

What's your delivery time?

Standard delivery is within 30 days.

What payment methods do you accept?

We accept TT and PayPal with 30% deposit and 70% balance before shipment.
