| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-40 2P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Lightning Arrester | Type: | Surge Protection Device |
|---|---|---|---|
| Kinds: | Type 2 | Pole: | 2P |
| In: | 20kA | High Discharge Current: | 40kA |
| Better Protection: | 1.3kV | Tu: | -40℃-80℃ |
| Compact Size: | Type-2 Protection In Small Module Width | Application: | Surge Protective Device Is Suitable For Single-phaseTN System |
| High Light: | 1.3kV ac surge arrester,2P type 2 surge arrester,1.3kV type 2 surge arrester |
||

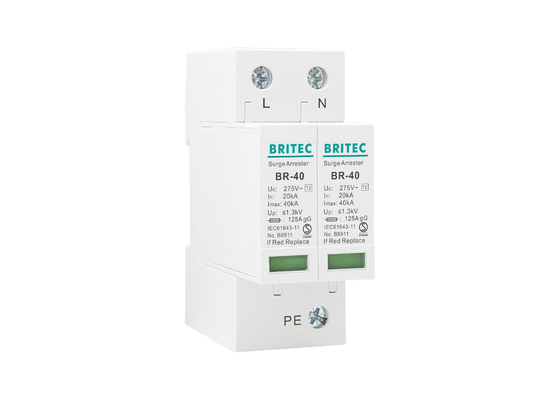

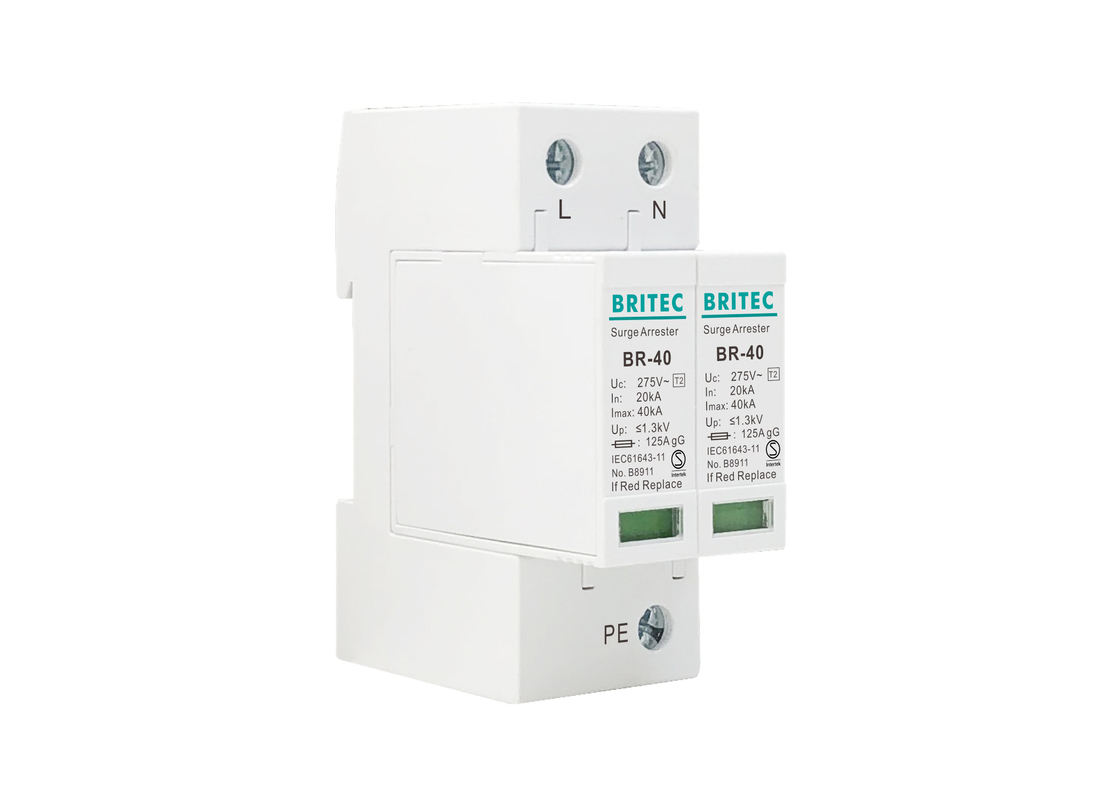

20 kA to 40 kA 1 Phase Type 2 AC Surge Protection Devices Double Pole Plastic
20 kA to 40 kA 1 Phase Type 2 AC Surge Protection Devices Technology characteristic:
| Specification | BR-40 2P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Max. discharge current (8/20µs) Imax | 40kA |
| Norminal discharge current (8/20µs) In | 20kA |
| Voltage protection level Up | ≤1.3kV |
| Max. backup fuse | 125A gG |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state/fault indication | green/red |
| Enclosure material | Thermal plastic |
Dimension:
20 kA to 40 kA 1 Phase Type 2 AC Surge Protection Devices Product Description:
Remote Signaling Contact:
• Option to remotely monitor the status of the surge protector.
• Simplified cabling thanks to a single terminal for monitoring all poles.
Company profile:
Britec Electric was founded in the year 2003. We are instrumental in manufacturing, trading, exporting, and supplying SPD products to our client’s at most reasonable rates. Our range of products is highly demanded & appreciated in the market because of their sturdy construction premium quality, excellent performance, and long functional life. Before dispatch, our products are checked on varied quality factors to attain utmost client’s satisfaction and to assure the supreme quality.
Shipping:
Certifications:
FAQ:
Q: Are You A Factory Or Trading Company?
A: We are a manufacturer with export license.
Q. How Could I Get A Sample?
A: Generally, we offer samples in 10 days while customer pay the sample fee and shipping cost.
Q. Could You Print Custom LOGO For Items?
A: Yes, we accept customized logo.
Q. Do You Accept OEM Or ODM In Your Factory?
A: Absolutely Yes. Welcome to inquiry OEM & ODM service at any time.
Q: What's Your MOQ?
A: We accept both large and small orders. And for some of the items we have stocks.
Q. What Payment Terms Do You Accept?
A: We usually accept T/T payment terms, but other payment terms also can be accepted after we both confirmed.
Q: What's The Time Of Warranty.
A: We offer 2 years warranty.
Q. How Does Your Factory Do Regarding Quality Control?
A: Quality is priority. Britec always pay great attention to quality control. All raw material we used are environmental-friendly.
