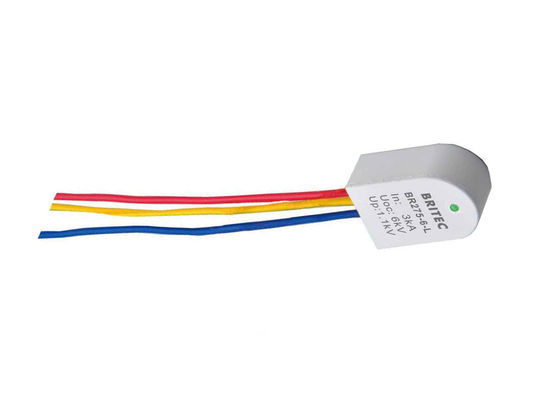

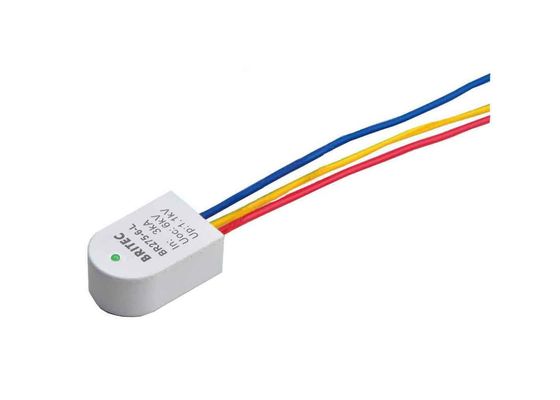

EN61643-11 Street Lamps 6kA LED Light Surge Protection Device

EN61643-11 Street Lamps 6kA LED Light Surge Protection Device

  • EN61643-11 Street Lamps 6kA LED Light Surge Protection Device
  • EN61643-11 Street Lamps 6kA LED Light Surge Protection Device
EN61643-11 Street Lamps 6kA LED Light Surge Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR275-6-L
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: LED Surge Protective Environment: Outdoor
Protection Level: Type 3 Size: Small
Un: 230V In: 3kA
Imax: 6kA Uoc: 6kV
Tu: -40℃-80℃ Housing Material: UL94-V0
High Light:

6kA LED Surge Protection Device


EN61643-11 led surge protector


6kA LED Light surge protector


Surge protection for LED street lamps 6kA light arrester device China New design


Surge protection for LED Product Description:


Energy saving LED lights used as street lighting is becoming increasingly popular. But their free-standing poles are at risk in two ways: From lightning and from surge voltages via the power supply. For the protection of sensitive electronic drivers and LED lights inside street lamps, Britec has now developed a tailor-made surge arrestor. The type 3 arrestor BR275-6 has a high level of conducting capacity of up to 6 kA. Having a very low protection level of below 1.2 kV, it is also suitable for the protection of very sensitive electronic components. Thanks to its compact design, the housing can be mounted in the pole end area or in the street lamp head. The arrestors BR275-6 fulfill the requirements for type 3 protective devices according to the current EN 61643-11 product norm.

Surge protection for LED Product Details:


SPD classification according to EN61643-11 Type 3
SPD classification according to IEC 61643-11 Class III
Nominal a.c. voltage                                                  Un 230V
Max. continuous operating a.c. voltage                     Uc 275V
Max. continuous operating d.c. voltage                     Uc 300V
Nominal discharge current (8/20us)                            In 3kA
Combined impulse                                                   Uoc 6kV
Voltage protection level                                              Up ≤1. 2kV
Response time                                                            tA ≤25ns
Operating temperature range                                     Tu -40°C~ +80°C
Operating state / fault indication LED
Enclosure materail                    Thermal plastic UL94-V0
Degree of protection IP20



EN61643-11 Street Lamps 6kA LED Light Surge Protection Device 0

Surge protection for LED Application:


• Specifically for LED signage and traffic light manufacturers, including parking garage lighting, digital signage.
Outdoor and Commercial LED Lighting
Roadway lighting
Traffic lighting
Digital signage
Wall wash lighting
Parking garage lighting
Flood lighting
Tunnel lighting
Street lighting


Surge protection for LED Features:


• Build-in LED Indication saves maintenance time by identifying replacement need.
New designed LED lighting surge protection module.
Thermally Protected.
Metal oxide varistor (MOV) thermal protection.
From 3kA to 6kA Maximum Discharge Current (Imax), 8/20μs.
Full protection mode.
IEC 61643-11/EN 61643-11 recognized.

Surge protection for LED Advantages:

1). We have our own factory.

2). Same design, better quality; Same quality, better price; Same price, better after-sale service.

3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce

     the defective percentage effectively, control the quality.

4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.

5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish

     long-term cooperative relationship.

6). Various Style, suitable for customers' demand

7). We can do OEM&ODM, produce according to your original sample or pictures.


Packaging & Shipping:


• Standard packing for keeping your products safe

• Supply the packing as customer’s requirements

• Different transportation ways for your choice.

• FOB Port:Ningbo,Shanghai

• Delivery Time:15-30 days against the deposit.

• Payment Term:30% T/T in advance,the balance before shippment.


EN61643-11 Street Lamps 6kA LED Light Surge Protection Device 1

Company Information:


We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!

EN61643-11 Street Lamps 6kA LED Light Surge Protection Device 2
Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.
EN61643-11 Street Lamps 6kA LED Light Surge Protection Device 3


Q1: Are you a manufacturer or trading company?
  A: We are a manufacturer of SPDs with more than 17 years experience.

Q2: Do you have any MOQ for order?
  A: MOQ is 100pcs.


Q3: What's your terms of payment?
  A: 30% T/T, balance before shipment.


Q4: Can you customize my products or put my logo on your products?
  A: Yes, we offer OEM and ODM services. Please inform us formally before production.


Q5: What's the lead time?
  A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your

      requirement, we will do our best to deliver the goods in time.
