| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-40 275 3P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Device | Type: | Ac Surge Protector |
|---|---|---|---|
| Brand Name: | Britec | Operating Frequency: | 50/60Hz |
| Part Number: | BR-40 | In: | 20kA |
| Imax: | 40kA | Pole Number: | 3P |
| Tu: | -40℃-80℃ | Protection: | IP20 |
| High Light: | SPD 3 pole surge protector,275VAC 3 pole surge protector,SPD type 2 surge protector |
||

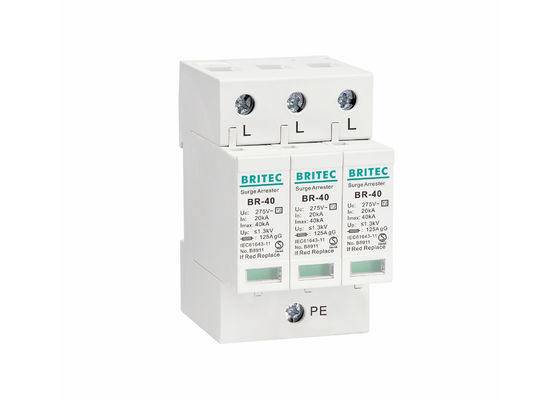

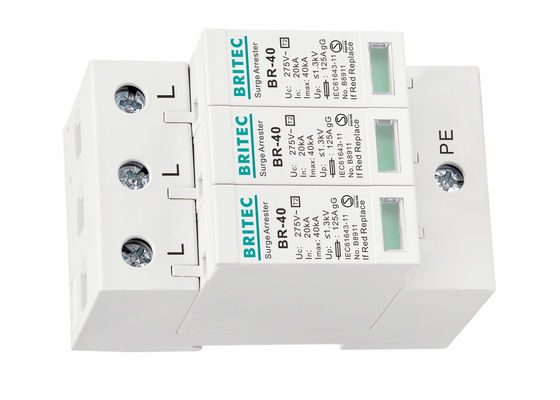

AC 3P 20KA~40K 275VAC Class C SPD Manufacturer 3 Pole Surge Protection Device
AC 3P 20KA~40K 275VAC Class C SPD Technology characteristic:
| Specification | BR-40 275 3P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Max. discharge current (8/20µs) Imax | 40kA |
| Norminal discharge current (8/20µs) In | 20kA |
| Voltage protection level Up | ≤1.3kV |
| Max. backup fuse | 125A gG |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state/fault indication | green/red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| Enclosure material | Thermal plastic UL94-V0 |
Dimension:
AC 3P 20KA~40K 275VAC Class C SPD Application:
Company information:
Quality is for the sake of our first consideration, we have plenty of various SPD, and our workers work in our factory over 17 years, we are professional in manufacturing various surge protection devices, including the power and signal type.
Production process:
Certification:
Packaging & Shipping:
Packing: carton or as the customers’ requests.
Shipping: Small order: By express, TNT, DHL, UPS, FEDEX, and EMS.
Large order: By sea or by air.
Choose the best and convenient way for you need.
Delivery time: 15-30 days after payment in advance.
FAQ:
1. What are our advantage to start business with you ?
(1) Prompt delivery. The delivery time is about 20 days.
(2) Reasonable price. We can provide you high quality with competitive price.
(3) Variety choices. Our products are divided into economical series and premium series. We can fulfill a variety of requirements for you and bring best benefits for each other.
2. What about the MOQ ?
We can provide you any quantity you need.
3. Do you have the specific QC department ?
Of course we have the specific QC department. Our company applies strict quality control system and service system.
4. What about the warranty?
We are quite confident in our products. We have special quality control department who will 100% check each goods before shipment,and we can assure you all the goods sent out are in good conditions. When customers receive the goods in 15 days, if unfortunately, there occurs broken ones, please tell us and show us the detailed proof so we can check it and give certain replacement in the next order.
5. How to order samples?
We can provide samples, but you need to afford the sample cost and freight. If you place an order next time, we will return the samples cost to you.
