Name: Low Voltage 1.5kV 3P 60ka Mov Type 2 Surge Protection Device Surge Protector
Brand: BRITEC
SKU: BR-60 3P
Rating: 4.9 (149 reviews)

Home Products Type 2 Surge Protection Device

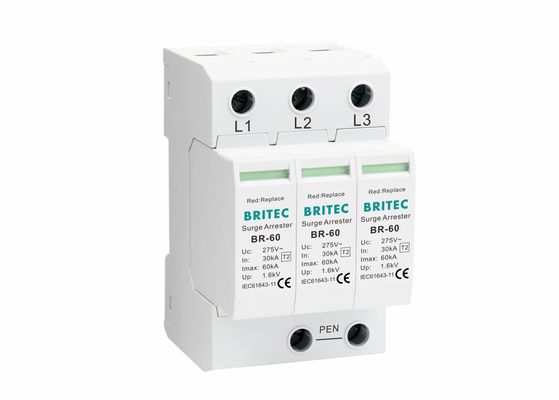

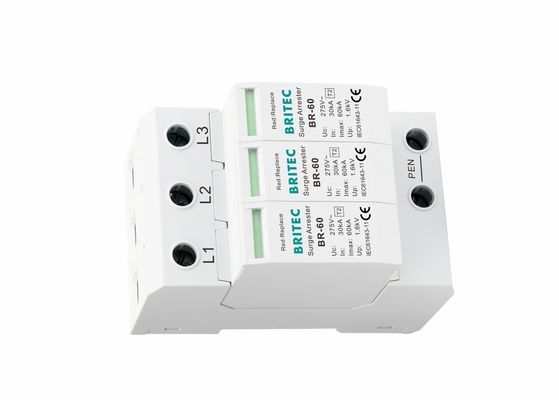

Low Voltage 1.5kV 3P 60ka Mov Type 2 Surge Protection Device Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-60 3P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protector	Structure:	MOV
Uc:	275V	Pole Number:	3P
In:	30kA	Imax:	60kA
Up:	≤1.5kV	Application:	AC System
Surge Protector Type:	T2 8/20us	Operation Voltage:	Low Voltage
Highlight:	1.5kV Type 2 Surge Protection Device , 60ka mov protection device , 3P mov surge protector

60ka 3P AC Surge Protector Protection Device 3 Phase SPD Low-Voltage House Arrester

60ka 3P AC Surge Protector Protection Device Features:

• Clss C/ II Surge protector consisting of 3 base part and MOV plug-in protection modules.

• High energy MOV inside.

• Low residual voltage and quick response.

• Reliable control.

• With remote signaling contact for control device.

• Fault indication via red mark in the inspection window.

60ka 3P AC Surge Protector Protection Device Technology characteristic:

	BR-60 275 3P
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	30kA
Max. discharge current (8/20us) Imax	60kA
Voltage protection level Up	≤1.5kV
Response time tA	≤25ns
Max. backup fuse	200A
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Dimension	3mods
Test standards	IEC 61643-1

Dimension:

Low Voltage 1.5kV 3P 60ka Mov Type 2 Surge Protection Device Surge Protector 0

60ka 3P AC Surge Protector Protection Device Application:

• For using in the lightning protection zones concept at boundary 1-2.

• It protect to indirect and direct lightning effect or other transient over voltage.

• Surge arrester is suitable for lightning and surge protection in AC 50/60Hz.

• For AC power line of house, bank, and telecom tower and so on.

Why chosse us?

1. 17years export experience, professional design team, supply you best quality, best service and best shipment.

2. We focus on service, once receive your order, we will try our best to satisfy you within 24hours.

3. Quality reliable, and make progress at any time to satisfy different customers requirement.

4. Accept customized item, special design for package as well.

6. Cover all kinds of surge protectors, cooperate with us can get all you need.

About us:

Quality is for the sake of our first consideration, we have plenty of various SPD, and our workers work in our factory over 17 years, we are professional in manufacturing various surge protection devices, including the power and signal type.

Our certification:

Packing&Shipping:

Our products will be packed as follow: white box inside, brown carton outside~
Shipping:By air, by sea or by express up to customer.

FAQ:

Q1: Are you trading company or manufacturer?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is within 5 days if the goods are in stock, or it is less than 30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples?

A: Yes, we could offer the sample.

Q4: What is your terms of payment?

A: 30% T/T in advance, balance before shippment.

Q5: What is the MOQ of an order?
A: We accepts 100 unit as trial order.

Q6: How about customization?
A: ODM/OEM business partner will be warmly welcome. Please contact us for more details.

Q7: Where is your factory located?
A: Our factory is located in Wenzhou, Zhejiang, China.
