|Place of Origin:||China|
|Model Number:||BR-25GR 4P|
|Minimum Order Quantity:||100 Piece/Pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||L/C, D/A, T/T, Western Union|
|Supply Ability:||50000 Piece/Pieces Month|
|Item Name:||Surge Suppressor||Type:||Ac Power Supply Protection|
Iimp 25kA oltage surge protector,
Iimp 25kA panel surge protector,
Imax 100kA voltage surge protector

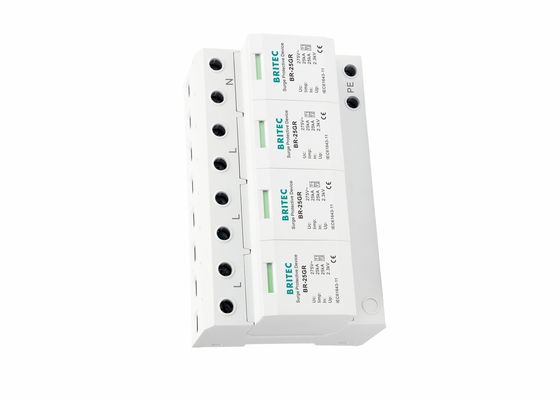

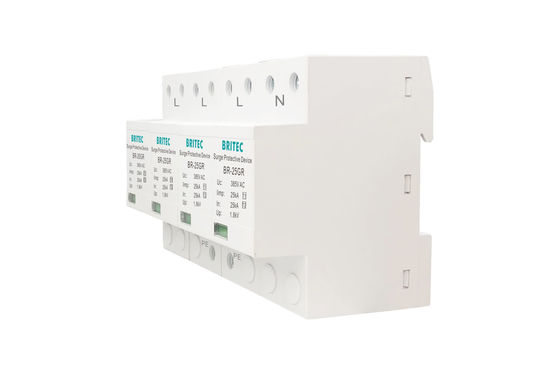

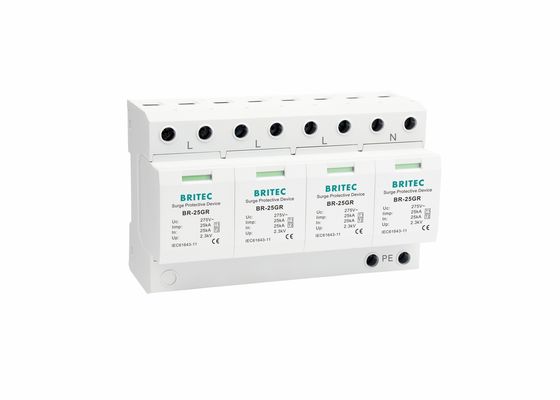

Best Price 25kA Surge Suppressor for 385V Power Supply Protection
25kA Surge Suppressor Product Description:
BR-25GR series surge protectors are suitable for ordinary AC power supply lightning and surge protection systems. The installation position is in the entire power supply system of the AC circuit to protect the impact of indirect lightning current, or other transient overvoltage and transient surges.
25kA Surge Suppressor Product capability parameter:
|Item name||Surge Arrester|
|SPD dassification according to EN61643-11||Type 1 + Type 2|
|SPD dassification according to EN61643-11||Class I + Class II|
Max continuous 0perating a.c. voltage Uc
|Lightning impulse current (10/350µs) limp||25kA|
|Norminal discharge current (8/20µs) In||25kA|
|Maximum discharge current (8/20µs) Imax||100kA|
|Voltage protection level Up||≤1.8kV|
|Follow current extinguishing capability a.c. lifi||5kA rms|
|Max. backup fuse||315A gG|
|Response time tA||≤100ns|
|Operating temperature range Tu||-40℃—80℃|
|Cross-section area (Min.)||4mm2|
|Cross-section area (Max.)||35mm2|
|For mounting on||35mm Din rail|
|Enclosure material||Thermal plastic UL94-V0|
|Degree of protection||IP20|
