Place of Origin: | China |
Brand Name: | BRITEC |
Certification: | CE |
Model Number: | BR-12.5M-320 4P |
Minimum Order Quantity: | 200 piece / pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | 15-30 days after payment |
Payment Terms: | T/T |
Supply Ability: | 50000 pieces per month |
Item Name:: | Surge Protector | Size Of Pole: | 18mm |
---|---|---|---|
Pole Number:: | 4P | Phase Number: | Three Phase |
Standard:: | IEC61643-11 | Uc: | 320V |
Iimp: | 12.5kA | Imax: | 50kA |
Up: | ≤1.3kV | Class: | Type 1+2 |
Highlight: | 4P household surge protector,18mm house power surge protector,18mm household surge protector |

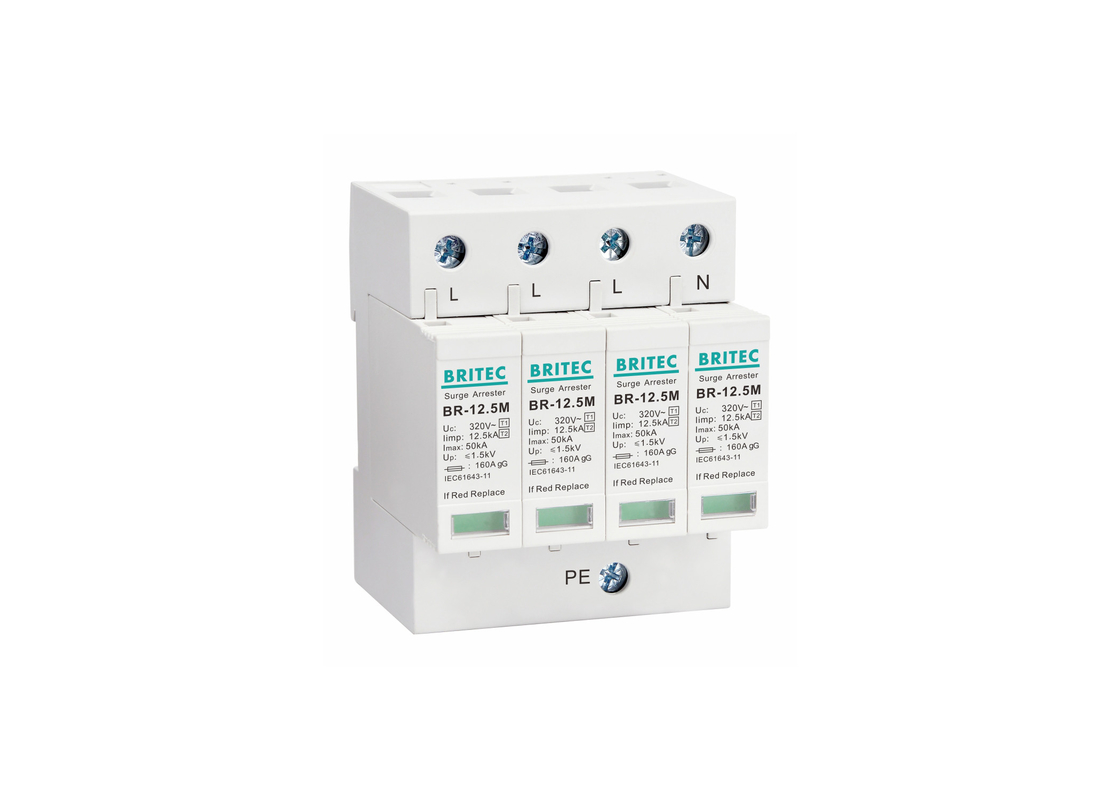

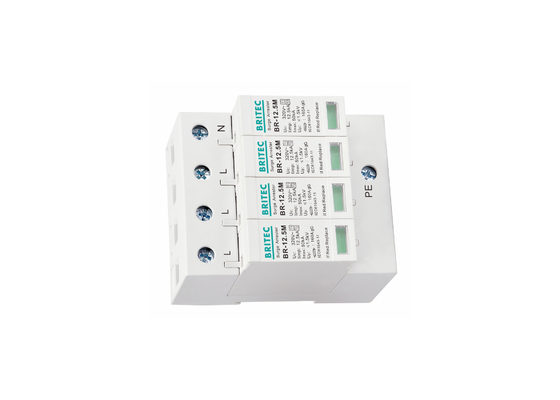

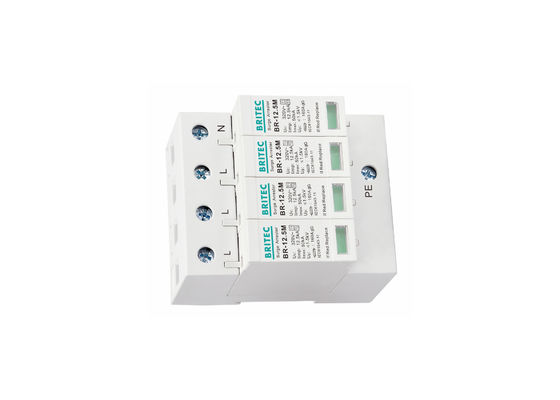

320V Three Phase 4P Voltage Protection Device Surge Protector
Surge Protector Product Details:
BR-12.5M-320 4P | |
SPD classification according to EN 61643-11 | Type 1 + Type 2 |
SPD classification according to IEC 61643-11 | Class I + Class II |
Max. continuous operating a.c. voltage Uc | 320V |
Lightning impluse current (10/350us) Iimp | 12.5kA |
Nominal discharge current (8/20us) In | 20kA |
Max. discharge current (8/20us) Imax | 50kA |
Voltage protection level Up | ≤1.5kV |
Voltage protection level 5kA Up | ≤1.2kV |
Max. backup fuse | 160A gG |
Response time tA | ≤25ns |
Operating temperature range Tu | -40℃—80℃ |
Operating state / fault indication | green / red |
Cross-section area (Min.) | 4mm2 |
Cross-section area (Max.) | 35mm2 |
For mounting on | 35mm Din rail |
Enclosure material | Thermal plastic UL94-V0 |
Degree of protection | IP20 |
Technology characteristic:
About Shipping:
1. DHL / UPS / FedEx / TNT, Door-to-Door.
2. By Air or by Sea, for FCL/LCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.
Company information:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing city, Zhejiang province, is a comprehensive international manufacturer & trading company for SPD products. Most of our products are sold to Sweden, Denmark, Germany, United Kingdom, French, Italy, Spain, France, Hungary, Slovakia, Croatia, Canada, Mexico, Brazil, Argentina, Australia, New Zealand, South Korea, Hongkong, Japan, Singapore, Malaysia, Thailand, Indonesia, Israel, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.
Certificate:
FAQ:
Q1: Are you a factory?
A: YES, our factory in Zhejiang established in 2003.
Q2: Certificates for the lightning arrester?
A: TUV, CE, CB etc.
Q3: Warranty for the surge protector?
A: 2-5 Years warranty depends on customers requests.
Q4: Can I have our LOGO on the products and packages?
A: Yes. But with MOQ for color box design.
Q5: How to deal with the faulty?
A: Our products are produced in a strict quality control system and the defective rate is less than 0.2%. If a Quality problem happens, Return/Refund policy according to warranty agreement.
