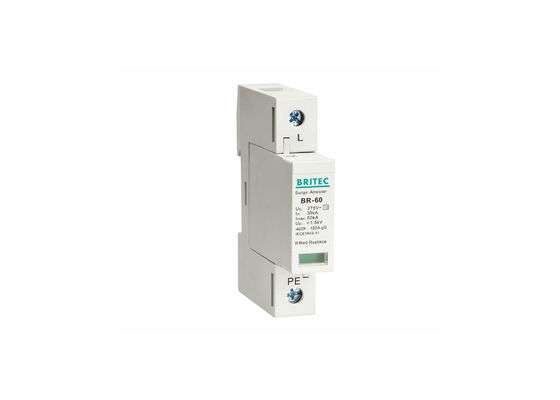

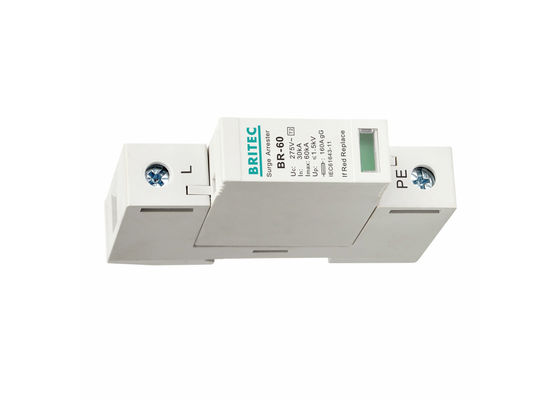

Class II DIN Rail Mounted SPD 60kA T2 Surge Arrester Class C Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR275-60 1P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protection Device	Type:	Type 2 Class C
Phase:	Single Phase	Pole Number:	1P
Uc:	275V	In:	30kA
Imax:	60kA	Protection:	IP20
Product Name:	AC SPD	Tu:	-40℃-80℃
High Light:	60kA T1+T2 Surge Arrester B+C , 60kA type 2 surge protection device , SPD T1+T2 Surge Arrester B+C

BRITEC Electric Type 2 Class C Surge Protection Device 60kA Single Phase AC SPD 275V

BRITEC Type 2 Class C Surge Protection Device Features:

• Modular SPD.

• Type 2.

• SPD BR-60 is for low-voltage power supply 275V, Imax 60kA.

• DIN Rail Mounted Fitting.

• The core parts are metal oxide vristor components with high discharge capacity.

• Supplied with replaceable cartridges and operational indicator.

• Remote signaling contact for control device: optional.

• Switching surge arresters Type 2 & Class C according to EN 61643-11 & IEC 61643-1 for the lightning protection zone 1-2 consisting of din mountable.

BRITEC Type 2 Class C Surge Protection Parameters:

Model Name	BR275-60 1P
Brand	BRITEC
Product Type	Surge Protection Device
SPD dassification according to EN61643-11	Type 2
SPD dassification according to IEC61643-11	Class II
Max. Continuous Voltage Uc	275V
Max. discharge current (8/20µs) Imax	60kA
Norminal discharge current (8/20µs) In	30kA
Voltage protection level Up	≤1.5kV
Max. backup fuse	200A gG
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Manufacturer Guarantee	2 Years Guarantee
No. of Phases	Single-Phase
Number of Poles	one pole
Operation temperature range	-40 ~ +80 degree
Remote control contacts	Optional

Dimension:

BRITEC Type 2 Class C Surge Protection Application:

• BR-60 surge protective device are suitable for lightning and surge protection in AC 50/60Hz.

• Protects connected equipment against overvoltage from switching and the secondary effects of lightning strikes.

• Protects electronics from damage or destruction due to overvoltage.

• Used in AC power line of house, bank, telecom tower and so on.

BRITEC Type 2 Class C Surge Protection Advantage:

• Low residual voltage and quick response.

• Reliable control.

• Fault indication via red mark in the inspection window.

Noted:

We also can supply more of product for low--voltage power system lightning protection, surge protective device with Imax=80kA, 100kA, 200kA etc.

Company profile:

Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.

Class II DIN Rail Mounted SPD 60kA T2 Surge Arrester Class C Surge Protection Device 1

Our certificate:

Class II DIN Rail Mounted SPD 60kA T2 Surge Arrester Class C Surge Protection Device 2

Workroom:

Class II DIN Rail Mounted SPD 60kA T2 Surge Arrester Class C Surge Protection Device 3

FAQ:

Q1: What is the MOQ of each item?
A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.

Q2: Do you have any guarantee for products?
A: Yes, sure. All products have two years guarantee.

Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection device.

Q4: How to control the quality?
A: Each product must be test before shipment. Our production line full with professional skills and strict stardars.

Q5: How long does it take to delivery?
A: If have stock, within 1 week we can finished all the delivery. If no have stock, normally around 3 weeks, depends on order.
