Name: OEM 40kA T2 275V Energy Home SPD Surge Arrester Device Surge Protection
Brand: Britec Electric Co., Ltd.
SKU: BR-40 1+1
Price: 27.00 USD
Availability: InStock

Home Products Type 2 Surge Protection Device

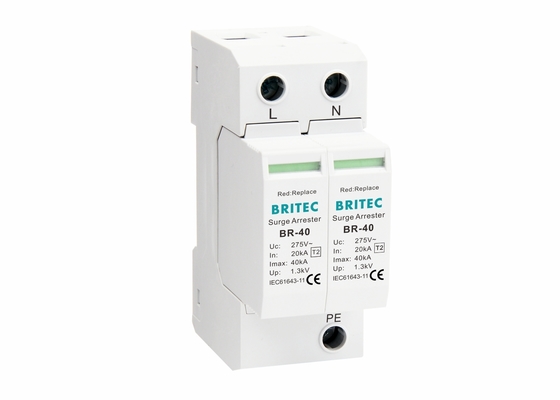

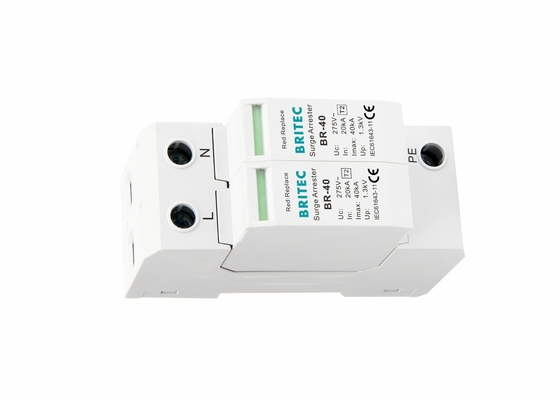

OEM 40kA T2 275V Energy Home SPD Surge Arrester Device Surge Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE
Model Number:	BR-40 1+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 25 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	500000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protection Device	Type:	Ac Surge Protector
Material:	Plastic	Pole Number:	1+1
Uc:	275V/255V	Imax:	40kA
Brand Name:	Britec	Certificate:	TUV/CE/ROHS/ISO9001
Tu:	-40℃-80℃	Delivery Time:	Shipped In 25 Days After Payment
Highlight:	SPD Surge Arrester Device , 50kA Surge Arrester Device

OEM 40kA T2 275V Energy Home SPD Surge Arrester Features:

• Designed according to IEC 61643-1/GB 18802.1.

• It adopts 35mm standard rail.

• Single-pole + NPE lightning current arrester.

• There is a failure release mounted in the module of surge protection device.

• Pluggable module, easy for installation and maintenance.

• Adopt hermetical GDT technology.

• High discharge capacity, quick response.

• Extremely low voltage protection level.

• Green window will change when fault and also provide remote alarm control at the same time.

• After strict screening of high-quality lightning protection chips, the reliability is higher.

• 20ka 40ka spd

OEM 40kA T2 275V Energy Home SPD Surge Arrester Technology characteristic:

Specification	BR-40 1+1
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 2
SPD dassification according to IEC61643-11	Class II
Max continuous 0perating a.c. voltage Uc	275V/255V
Max. discharge current (8/20µs) Imax	40kA
Nominal discharge current (8/20µs) In	20kA
Voltage protection level Up	≤1.3kV/≤1.5kV
Response time tA	≤25ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enlcosure material	Thermoplastic UL94-V0

Dimension:

OEM 40kA T2 275V Energy Home SPD Surge Arrester Device Surge Protection 0

OEM 40kA T2 275V Energy Home SPD Surge Arrester Application:

• Protecting low voltage equipment against lightning and surge damages.

• Applied in PSD Class II (Class C) for various power supply system.

• It protects against the lightning or other transient overvoltage.

• Suitable for power supply systems such as equipment end protection, terminal distribution box and internal information front section.

Our price is cheaper than abb spd type 2 and legrand spd price.

Office & factory:

Our factory is located in Yueqing city, Zhejiang province, a half's drive from our office, which is specialize in export of SPDs. Having a independent mould workshop, we have developed various SPD.

OEM 40kA T2 275V Energy Home SPD Surge Arrester Device Surge Protection 1

Our factory:

OEM 40kA T2 275V Energy Home SPD Surge Arrester Device Surge Protection 2

Certification:

FAQ:

Q1. About MOQ:

A: If the model you wanted is in stock in our warehouse, only lowest MOQ needs to be teached.

Q2. About logo.

A: In our usual practice, both OBM and OEM are welcomed.

Q3. About samples:

A: We provide samples for test, but the sample fee and freight are on your account.

Q4. About quality:
