| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR-15DP 275 2P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Lightning Surge Arrester | Type: | Type2 |
|---|---|---|---|
| Pole Number: | 2P | Uc: | 275 V AC |
| Imax: | 15kA | Enclosure: | Thermalplastic UL94-VO |
| Certificate: | TUV/CE/ROHS/ISO9001 | Tu: | -40℃-80℃ |
| Application: | Surge Protective Device Is Suitable For Single-phase System | Warranty: | 2 Years |
| High Light: | 5kw type 2 surge protector,275v type 2 surge protector |
||

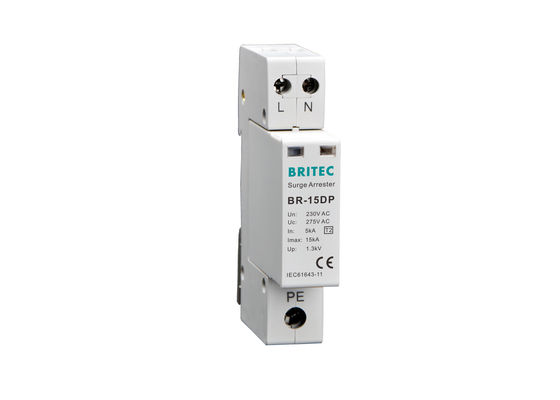

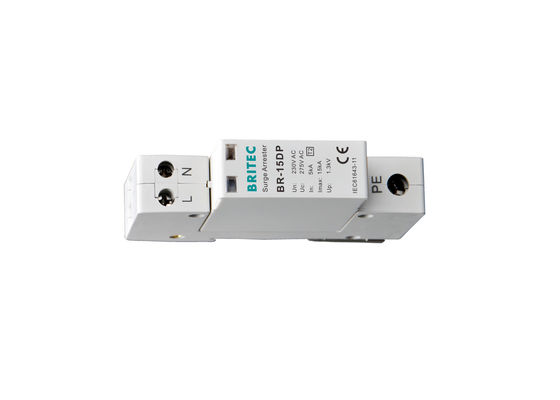

AC Surge Protector Surge Protective Device 5ka-15ka Power Surge Protection 275V
AC 5ka 15ka Power 275V Type 2 Surge Protector Technology characteristic:
| Specification | BR-15DP 275 2P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Max. discharge current (8/20µs) Imax | 15kA |
| Norminal discharge current (8/20µs) In | 5kA |
| Voltage protection level Up | ≤1.3kV |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 2.5mm² |
| Cross-section area (Max.) | 16mm² |
| Enclosure material | Thermal plastic UL94-V0 |
Dimension:
AC 5ka 15ka Power 275V Type 2 Surge Protector Application:
For using in the lightning protection zones concept at boundary 1-2.
AC 5ka 15ka Power 275V Type 2 Surge Protector Advantages:
• Professional Service.
• Low MOQ.
• Fast Delivery.
• Quality Guarantee.
Our service:
• Pre-sale Services:
1. Provide free consulting, to resolve the confusion from customers.
2. Mining and carefully study customer's needs, provide detail and suitable design solutions.
• In-sale Services:
1. Try best to meet the reasonable demands by customers.
2. Cooperate friendly with client and satisfy our clients with best quality SPD.
• After-sale Services:
1. Provide 2-year guarantee for products.
2. A complete after-sale service system to help customers resolve the problems during the using time.
Company profile:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service. We sincerely and warmly expect customers and friends from the world to cooperate with us for mutual development and more prosperous future.
Shipping:
Our certifications:
FAQ:
Q1: What is MOQ?
A: 100pcs.
Q2: How to ship?
A: By sea, by air or express.
Q3: How to place a order?
A: Place order with saler; Make payment for deposit; Goods are finished, inform buyer to make payment for balance; Delivery.
Q4: What's your payment terms?
A: For samples, T/T 100% as deposit. For bulk orders, T/T 30% as deposit and T/T 70% before delivery.
