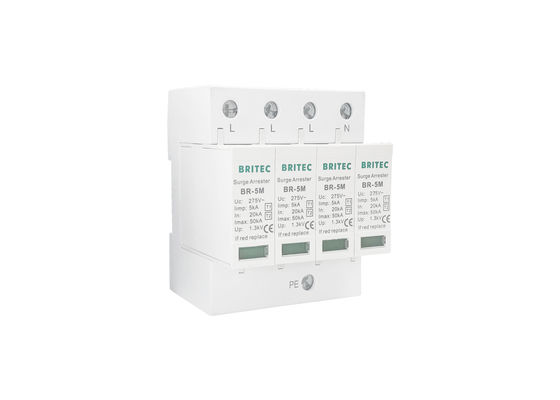

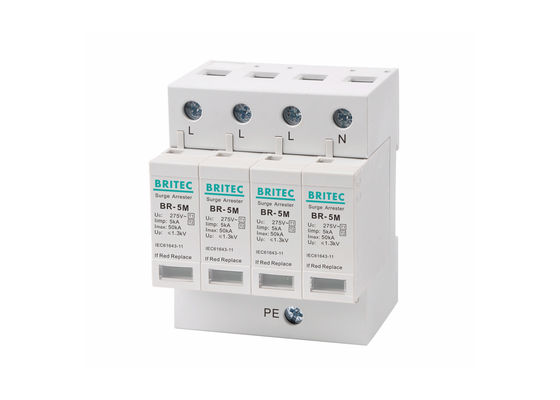

Type AC Voltage 3 Phase 5KA 4 Pole 275V Surge Protector SPD for Industrial Power Protection

Type AC Voltage 3 Phase 5KA 4 Pole 275V Surge Protector SPD for Industrial Power Protection
Type AC Voltage 3 Phase 5KA 4 Pole 275V Surge Protector SPD for Industrial Power Protection Type AC Voltage 3 Phase 5KA 4 Pole 275V Surge Protector SPD for Industrial Power Protection

Large Image :  Type AC Voltage 3 Phase 5KA 4 Pole 275V Surge Protector SPD for Industrial Power Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-5M 275 4P
Document: BR-5M 4P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces Month
Contact Now

Type AC Voltage 3 Phase 5KA 4 Pole 275V Surge Protector SPD for Industrial Power Protection

Description
Standards: IEC 61643:11 , IEC 62305 Model: B+C
Shipping Term: TNT DHL FEDEX UPS Number Of Positions: 4P
Mounting Type: DIN Rail Mount Enclosure Material: Thermoplastic, UL94 V‐0
Voltage: 275V Product Type: Type 1+2
Category: T1+T2 Combined Type Working Conditions: Temperature: -40 To 80℃
Highlight:

5KA power surge protector

,

275V power surge protector

Type AC Voltage 3 Phase Power Surge Protector BR-5M 5KA 4 Pole 275V SPD
Product Features
  • High energy surge protection
  • Pluggable replacement module for easy maintenance
  • Fast reaction rate: <25ns
  • Optional remote alarm interface
  • Clear failure detection indicator: green light indicates normal operation; red indicates replacement needed
  • Standard modular installation
Technical Specifications
BR-5M-275 4P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Protection modes 4P
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350μs) Iimp 5kA
Nominal discharge current (8/20μs) In 20kA
Max. discharge current (8/20μs) Imax 50kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Power supply system 3 phases TN-S system
Technology MOV
Format Plug-in modular
Operating temperature range Tu -40℃ to +80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material Thermoplastic UL94-V0
OEM Yes
Remote Signalling Optional
Frequency 50Hz to 60Hz
Product Dimensions
BR-5M-275 4P Surge Protector dimensional drawing
Applications

Applied to equipotential bonding of the main low voltage distribution boxes in buildings, providing overvoltage protection arising from Class B+C lightning strikes to power supply systems or operational faults. Compliant with standard IEC61643-1 and GB50343.

About Britec Electric

Wenzhou Britec Electric Co., Ltd. was founded in 2003. Britec is a SPD manufacturer located in Yueqing, Zhejiang, China. With 17 years of experience, Britec specializes in low voltage surge arrester development and design. Our products are widely used in electric power, communication, construction, and other industries, and are favored by many international customers.

Britec Electric facility overview
Manufacturing Workshop
Britec Electric production workshop
Certifications
Britec Electric quality certifications
Shipping & Logistics
Britec Electric shipping and packaging
Frequently Asked Questions
Q1: Are you a manufacturer or seller?
A1: We are a manufacturer. Our focus is providing the best quality products at competitive prices.
Q2: Can you manufacture products not shown in your catalogue?
A2: Yes. Our professional engineering team can design and develop custom molds to meet specific customer requirements. Our sales team provides comprehensive service from pre-sale to after-sale support.
Q3: Do you offer custom design services?
A3: Yes, our design team can create products according to your specific concepts and requirements.
Q4: What is your warranty policy?
A4: Warranty terms vary by product. Please contact us for specific warranty information for the product you're interested in.
Q5: What payment methods do you accept?
A5: We accept T/T and PayPal. Payments can also be made in RMB. Please ensure we receive the full invoice amount.
