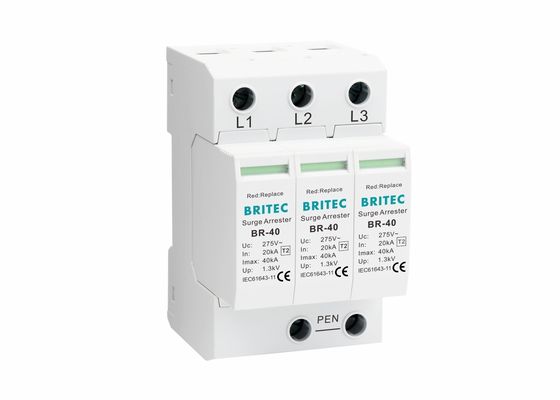

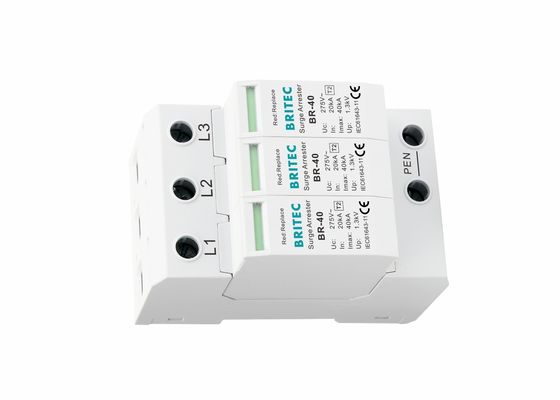

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA Surge Protection Device for Lightning Protection

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA Surge Protection Device for Lightning Protection
IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA Surge Protection Device for Lightning Protection IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA Surge Protection Device for Lightning Protection

Large Image :  IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA Surge Protection Device for Lightning Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE/TUV/CB/S
Model Number: BR-40 3P
Document: BR-40 3P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month
Contact Now

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA Surge Protection Device for Lightning Protection

Description
Mounting Support: 35mm Din Rail Response Time: <25 Nanoseconds
Warranty: 5 Years Operating Temperature Range: -40°C To +80°C
OEM: Yes EN Type: T2
System: TN-C Standards: EN61643-11/IEC61643-11
Pole Number: 3P Keyword: Lightning Protection
Highlight:

2 pole surge protector

,

type 2 surge protector

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA For General Protection
Product Features
  • BR-40 is the series of Type 2 / Class II devices for discharging voltage surges, in accordance with EN / IEC 61643-11
  • Built-in overheat short-circuit device
  • Failure detection indication
  • Optional remote signaling interface
  • 35mm Din rail mounting, standard modular design
  • Maximum discharge current (8/20μs): 40kA per phase
  • Nominal discharge current (8/20μs): 20kA per phase
  • Prewired complete unit consisting of a base part and plug-in protection modules
  • BR-40 3 poles surge arrester for use in TN-C systems
Technical Specifications
Parameter BR-40 150 3P BR-40 275 3P BR-40 320 3P BR-40 385 3P BR-40 440 3P
SPD classification (EN61643-11)Type 2Type 2Type 2Type 2Type 2
SPD classification (IEC61643-11)Class IIClass IIClass IIClass IIClass II
Max. continuous operating voltage Uc150V275V320V385V440V
Nominal discharge current In (8/20μs)20kA20kA20kA20kA20kA
Max. discharge current Imax (8/20μs)40kA40kA40kA40kA40kA
Voltage protection level Up≤0.8kV≤1.3kV≤1.5kV≤1.8kV≤2.0kV
Voltage protection level Up (5kA)≤0.6kV≤1kV≤1.2kV≤1.3kV≤1.5kV
Max. backup fuse100A gG100A gG100A gG100A gG100A gG
Response time tA≤25ns≤25ns≤25ns≤25ns≤25ns
Operating temperature range Tu-40℃-80℃-40℃-80℃-40℃-80℃-40℃-80℃-40℃-80℃
Operating state / fault indicationgreen / redgreen / redgreen / redgreen / redgreen / red
Cross-section area (Min.)4mm²4mm²4mm²4mm²4mm²
Cross-section area (Max.)35mm²35mm²35mm²35mm²35mm²
For mounting on35mm Din rail
Enclosure materialThermoplastic UL94-V0
Degree of protectionIP20IP20IP20IP20IP20
Dimensions
IEC 61643 Class II 3P Pluggable Type 2 SPD dimensional drawing
Applications

Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.

For LED lighting used in mobile communication base stations, microwave communications Bureau/Station, telecommunications room, industrial mining, civil aviation, financial, securities and other power systems, such as power distribution stations, power distribution rooms, power distribution cabinets, switch box and other various equipment that is important and vulnerable to lightning strikes.

Product Advantages
  • Selection of high-quality varistors, stable and reliable performance
  • High lightning current capability, 25ns response speed
  • Energy saving, environmental protection, easy installation, no special maintenance
  • Reversible chassis to allow cable entry from above or below
  • Fast delivery
Our Services
  • 22 years global leading profession manufacture of electrical products surge arrester
  • All products will be well packed before shipping
  • Standard packaging, and you can also tell us your own requirements on packaging
  • Faster delivery
  • Individually Tested Prior to Shipment
Certification
Product certifications and quality standards
Company Overview

Wenzhou Britec Electric CO., LTD is a manufacturer founded in 2003 which is a new products development, mass-producing and branding sales' company, specializing in surge protection device. Our factory have been granted ISO9001 management system certification and we have developed more than 100 types of products, our products have been approved by CE, TUV, and CB.

Factory View
Wenzhou Britec Electric factory facility overview
Production Line
Surge protection device production line equipment
Frequently Asked Questions
Q1. Can I have a sample order for SPDs?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 7-10 days, mass production time needs 3 weeks.
Q3. Do you have any MOQ limit for surge protector?
A: Yes, our MOQ is 100pcs.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by TNT DHL, UPS, FedEx or EMS. It usually takes 7 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print number on the surge protective device?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
