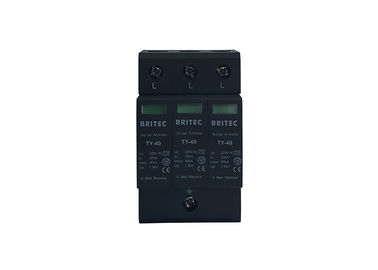

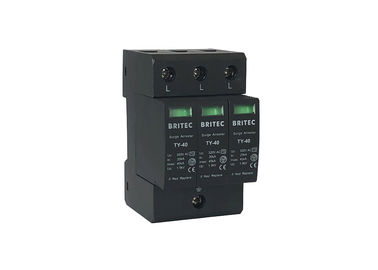

Name: IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA For General Protection
Brand: BRITEC
SKU: TY-40B 3P
Price: 1 USD
Availability: InStock
Rating: 4.6 (197 reviews)

Home Products Type 2 Surge Protection Device

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA For General Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	TY-40B 3P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	150V / 275V / 320V / 385V / 440V
In:	20kA	Imax:	40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Tu:	-40℃...+80℃
Type:	Class II	Pole No.:	3P
High Light:	2 pole surge protector , type 2 surge protector

IEC 61643 Class II 3P Pluggable 40kA Type 2 SPDs For General Protection

IEC 61643 Class II 3P Pluggable Type 2 SPD Feature:

• TY-40B is the series of Type 2 / Class II devices for discharging voltage surges, in accordance with EN / IEC 61643-11.

• Built-in overheat short-circuit device.

• Failure detection indication.

• Optional remote signaling interface.

• 35mm Din rail mounting, standard modular design.

• Maximum discharge current (8/20μs): 40kA per phase.

• Nominal discharge current (8/20μs): 20kA per phase.

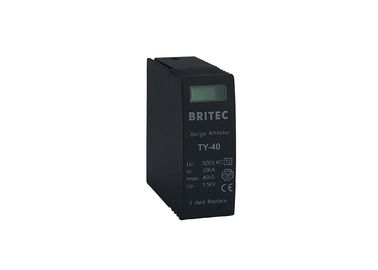

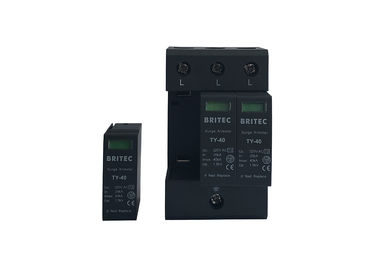

• Prewired complete unit consisting of a base part and plug-in protection modules.

• TY-40B 3 poles surge arrester for use in TN-C systems.

IEC 61643 Class II 3P Pluggable Type 2 SPD Product Details:

	TY150 40B 3P	TY275 40B 3P	TY320 40B 3P	TY385 40B 3P	TY440 40B 3P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20

Dimension:

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA For General Protection 0

IEC 61643 Class II 3P Pluggable Type 2 SPD Application:

• Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.

• For LED lighting used in mobile communication base stations, microwave communications Bureau/Station, telecommunications room, industrial mining, civil aviation, financial, securities and other power systems, such as power distribution stations, power distribution rooms, power distribution cabinets, switch box and other various equipment that is important and vulnerable to lightning strikes.

IEC 61643 Class II 3P Pluggable Type 2 SPD Advantage:

• Selection of high-quality varistors, stable and reliable performance.

• High lightning current capability, 25ns response speed.

• Energy saving, environmental protection, easy installation, no special maintenance.

• Reversible chassis to allow cable entry from above or below.

• Fast delivery.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Certification:

Company view:

Wenzhou Britec Electric CO., LTD is a manufacturer founded in 2003 which is a new products development, mass-producing and branding sales’ company, specializing in surge protection device. Our factory have been granted ISO9001 management system certification and we have developed more than 100 types of products, our products have been approved by CE, TUV, and CB.

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA For General Protection 2

Production line:

IEC 61643 Class II 3P Pluggable Type 2 SPD 40kA For General Protection 3

FAQ:

Q1. Can I have a sample order for SPDs?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 7 days, mass production time needs 3 weeks.

Q3. Do you have any MOQ limit for surge protector?
A: Yes, our MOQ is 100pcs.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by TNT DHL, UPS, FedEx or EMS. It usually takes 7 days to arrive. Airline and sea shipping also optional.

Q5. Is it OK to print number on the surge protective device?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
