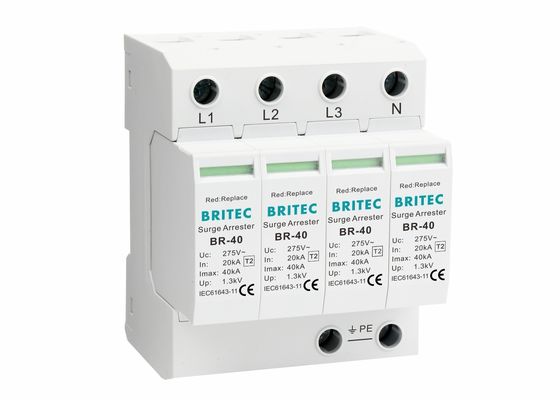

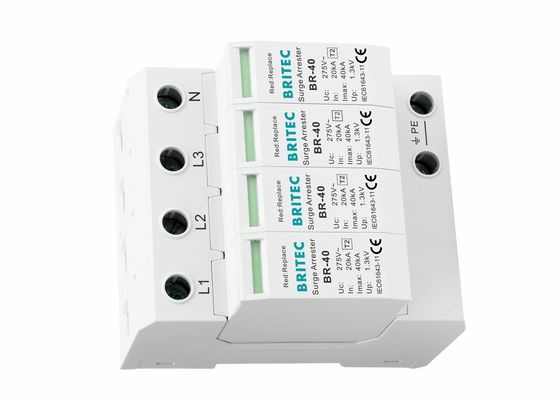

Type 2 Surge Arrester 4P 40kA Surge Protector with Reliable Performance

The 3 Phase Type 2 Surge Arrester 4P Type 2 Surge Protector delivers reliable performance with advanced surge protection technology for industrial and commercial applications.

• Type 2 surge arrestor with modular, monobloc and pluggable design
• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors
• Patented fast tripping mechanism for enhanced protection
• SEMKO approval and compliance with IEC 61643 international standards
• Modular design for standard 35mm DIN rail installation
• Connectable arrestor with cut-off unit and visual status display
• Plastic housing rated to UL94-V0

• For equipotential bonding in main and sub-distributions
• Protection of AC electrical networks from lightning, internally induced transients and external voltage transients
• Widely used in industry and automation, commercial and residential installations
• Suitable for second stage protection in supply distribution panels with Type 1 protection devices upstream
• First stage protection in commercial applications not exposed to direct strikes

• High discharge current capability
• Low voltage protection level (Up)
• Interchangeable modules with varistors
• IP20 protection rating
• Incorporates high energy varistor technology

• 22 years as global leading professional manufacturer of electrical surge protection products
• All products carefully packed before shipping
• Standard packaging with custom options available
• Fast delivery times
• Individual testing prior to shipment

Type 2 arresters must be installed into sub-distribution boards after main distribution boards containing Type 1 arresters. For proper operation between Type 1 and Type 2 arresters, at least 10-15m cable or wire distance is required, otherwise a decoupling coil must be installed between the two devices. Multiple surge diverters installed in a cascaded approach should be used to ensure adequate facility protection.
