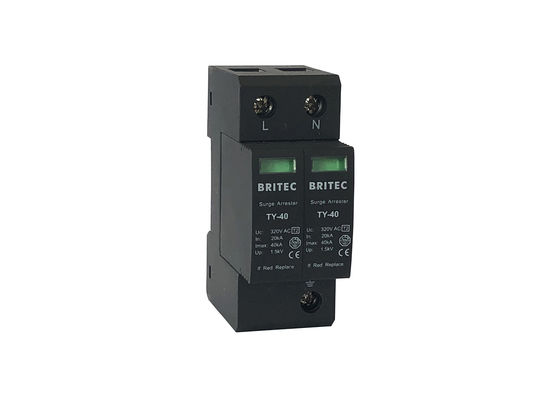

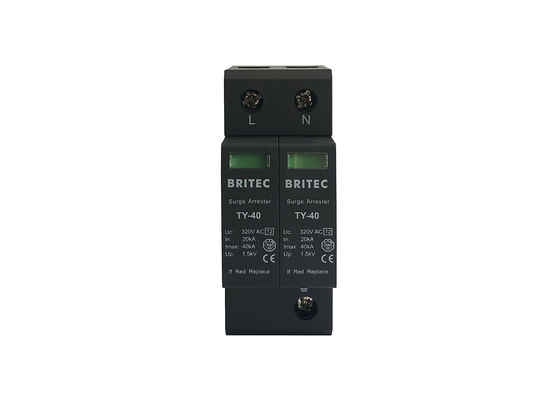

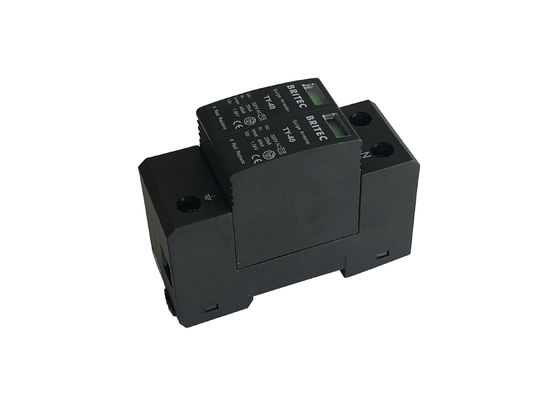

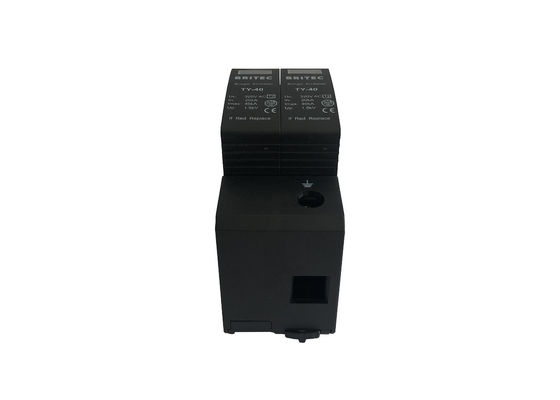

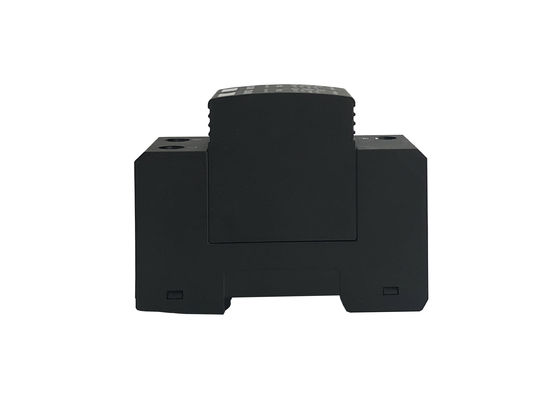

Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device

Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device

  • Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
  • Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
  • Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
  • Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
  • Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: TY-40B 2P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Enclosure: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Class: Type 2 Modular: Pluggable Design
High Light:

lightning surge arrester

,

type 2 surge protector



Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device



Type 2 Pluggable 2P Modular Surge Arrestor Feature:



• Model: TY-40B 2P.
• The green indicator flag in the inspection window shows the operating state of the protection modules.
• Remote monitoring switch signal can be achieved.
• IEC61643-11:2012 confirmed.
• Prewired complete unit consisting of a base part and plug-in protection modules.
• Modular surge arrester for use in single-phase TN-S systems.
• The compact protection modules incorporate the complete protective circuit as well as the monitoring and disconnection device.



Type 2 Pluggable 2P Modular Surge Arrestor Product Details:



  TY-40B150 2P TY-40B275 2P TY-40B320 2P TY-40B385 2P TY-40B440 2P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)              Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                            tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:



Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device 0



Type 2 Pluggable 2P Modular Surge Arrestor Application:



• Protects connected equipment against overvoltage from switching and the secondary effects of lightning strikes.
• This surge protection device is used to protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
• Protection against indirect lightning and direct lightning effects or other instant overvoltage surges, suitable for surge protection in residential, tertiary and industrial applications.



Type 2 Pluggable 2P Modular Surge Arrestor Advantage:



• High discharge capacity.
• High reliability.
• The plug-in protection module, Easy replacement.
• Protect the equipment's power system from lightning damage with stable performance.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment



Company profile:



Wenzhou Britec Electric Co.,Ltd. is founded in 2003, which is a professional SPD manufacturer. And through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.



Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device 1



Production line:



Type 2 Pluggable 2P Modular Surge Arrestor 320V 40KA Surge Protection Device 2



Installation:



• The line of surge arresters includes a full range of compact protectors for installation on DIN rail
• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly
• Installation must be performed only by electrically skilled operator
• If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)
