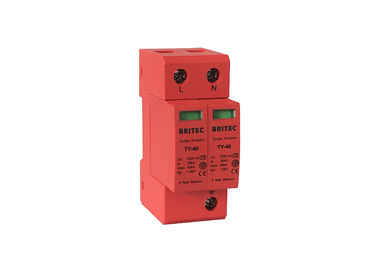

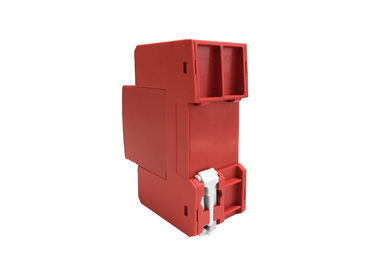

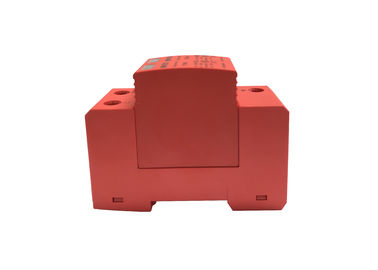

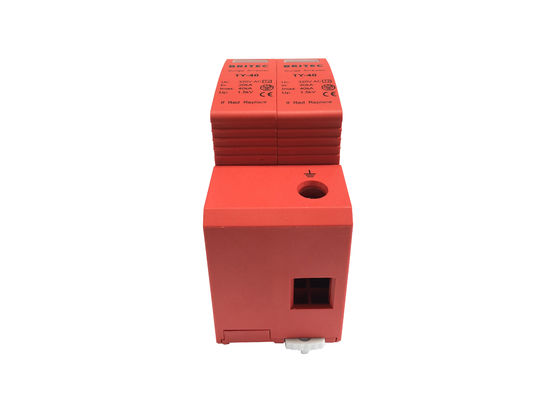

Pluggable 40kA 2P Type 2 Surge Protection Device Feature:
• Model: TY-40R 2P.
• Test standard: IEC 61643-11 / EN 61643-11.
• Mounting on 35 mm DIN rail.
• The green indicator flag in the inspection window shows the operating state of the protection modules.
• Optional remote changeover contact.
• Prewired complete unit consisting of a base part and plug-in protection modules.
Pluggable 40kA 2P Type 2 Surge Protection Device Product Details:
| |
TY-40R150 2P |
TY-40R275 2P |
TY-40R320 2P |
TY-40R385 2P |
TY-40R440 2P |
| SPD classification according to EN61643-11 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
| SPD classification according to IEC61643-11 |
Class II |
Class II |
Class II |
Class II |
Class II |
| Max. continuous operating a.c. voltage Uc |
150V |
275V |
320V |
385V |
440V |
| Nominal discharge current (8/20us) In |
20kA |
20kA |
20kA |
20kA |
20kA |
| Max. discharge current(8/20μs) Imax |
40kA |
40kA |
40kA |
40kA |
40kA |
| Voltage protection level Up |
≤0.8kV |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
| Voltage protection level 5kA Up |
≤0.6kV |
≤1kV |
≤1.2kV |
≤1.4kV |
≤1.6kV |
| Max. backup fuse |
125A gG |
125A gG |
125A gG |
125A gG |
125A gG |
| Response time tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
green / red |
green / red |
green / red |
green / red |
| Cross-section area (Min.) |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermal plastic UL94-V0 |
| Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
Dimension:
Pluggable 40kA 2P Type 2 Surge Protection Device Application:
• This surge arrester is applicable at the boundaries LPZ 0B - 1 and higher.
• for use in TN systems with floating remote signaling contact.
• This surge protection device is used to protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
• Protection against indirect lightning and direct lightning effects or other instant overvoltage surges, suitable for surge protection in residential, tertiary and industrial applications.
Pluggable 40kA 2P Type 2 Surge Protection Device Advantage:
• High discharge capacity due to heavy duty zinc oxide varistors.
• The compact protection modules incorporate the complete protective circuit as well as the monitoring and disconnection device.
• Easy replacement of protection modules without tools due to module locking system with module release button.
• The plug-in protection module can be replaced without the need to de-energise and without removing the distribution board cover.
Our Services:
• 15 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment
Certification:
Payment and shipping:
Installation:
• The line of surge arresters includes a full range of compact protectors for installation on DIN rail
• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly
• Installation must be performed only by electrically skilled operator
• If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)
