PV Surge Arrester
>

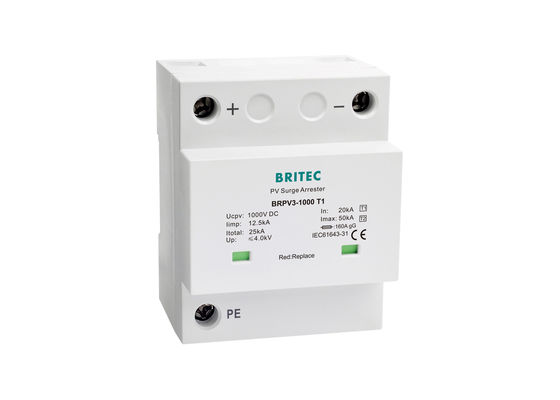

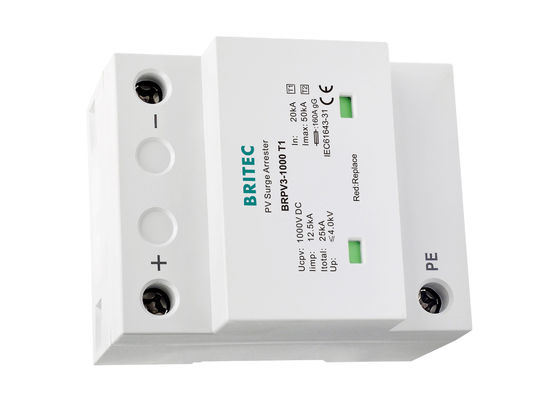

Class I Class II SPD PV Surge Arrester For Photovoltaic Systems 12.5kA 10 / 350us

Class I Class II SPD PV Surge Arrester For Photovoltaic Systems 12.5kA 10 / 350us

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3-1000T1
Detail Information
Place of Origin:
China
Brand Name:
BRITEC
Certification:
CE
Model Number:
BRPV3-1000T1
Test Standards:
EN61643-31 / IEC61643-31
Ucpv:
1000V
Iimp:
12.5kA
In:
20kA
Up:
≤4.0kV
Material:
Thermal Plastic UL94-V0
TA:
≤25ns
Mounting On:
35mm Din Rail
Tu:
-40℃...+80℃
Classification:
Type 1+Type 2 / Class I+Class II
Highlight:

High Light

Highlight:

dc surge arrester

,

dc surge suppressor

Trading Information
Minimum Order Quantity:
200 piece / pieces
Packaging Details:
EXPORT PACKING
Delivery Time:
15-30 days after payment
Payment Terms:
T/T
Supply Ability:
50000 pieces per month
Product Description



Class I Class II SPD for Photovoltaic Systems 12.5kA (10/350us)

Class I Class II SPD PV Surge Arrester Feature:



• Category: Class I + Class II / Type 1 + Type 2.
• Location of use: Photovoltaic systems - PV module side.
• Protection modes: (+) → PE, (-) → PE, (+) → (-).
• Protective elements: High energy MOV and GDT.
• Lightning impulse current(10/350us): 12.5kA.
• Leakage current: NO leakage current.
• Complies with: EN61643-31 and IEC 61643-31.
• The circuit is made up of two cascaded varistor levels, from the each by a temperature protection is protected.
• BRPV3-1000T1 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply networks.


Class I Class II SPD PV Surge Arrester Product Details:



   BRPV3-1000T1
SPD classification according to EN61643-31 Type 1+Type 2
SPD classification according to IEC61643-31 Class I+Class II
Max. continuous operating dc voltage                            Ucpv 1000V
Lightning impulse current (10/350us)                              Iimp 12.5kA
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 50kA
Voltage protection level [(DC+/DC-)→PE]                         Up ≤4.0kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Degree of protection IP20
Order Code B8002
Order code(With remote signal) B8004


Dimension:

Class I Class II SPD PV Surge Arrester For Photovoltaic Systems 12.5kA 10 / 350us 0

Class I Class II SPD PV Surge Arrester Application:


• Surge protection device for the protection of photovoltaic systems from direct and indirect lightning discharge.
• For photovoltaic systems on/on buildings with external lightning protection.
• Available for photovoltaic applications with a generator voltage of up to 1000 V.
• Available as type 1 and type 2 combined lightning current and surge arresters as well as type 2 only surge arrester protective devices.


Class I Class II SPD PV Surge Arrester Advantage:


• Compact design for space-saving installation.
• With operating display.
• Standard-compliant for prompt application.
• Visual display for checking the status directly on the device.
• Pluggable signal connection for remote status signaling.


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Why need pv surge arrester?



• PV systems must withstand weather conditions as they are located in highly exposed places.
• PV surge arrester ensure the best possible protection against temporary overvoltage to provide trouble-free operation throughout their working life. Protection of PV power plants/PV technologies for residential houses and for factories/Off grid PV technology.



Class I Class II SPD PV Surge Arrester Installation instruction:



These units must be installed in parallel on the DC networks to be protected and provide common mode protection. These protectors are recommended when a direct lightning strike is possible on the installation.



About us:



Britec Electric is specialized in designing, manufacturing and marketing low voltage surge arrester. With 17-year experience in SPDs and our expert R&D team, we quickly completed the design and testing of a series of surge protection products, which were all well-praised by our customers and industry professionals right after the release.
