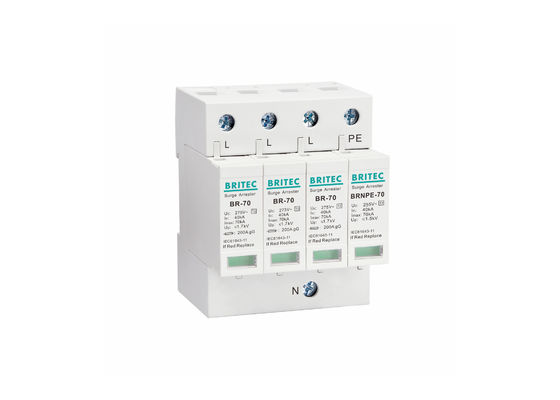

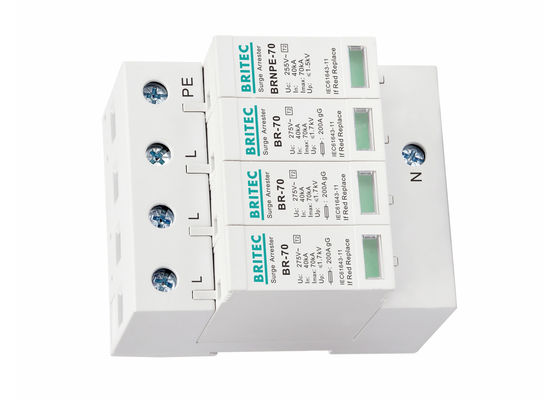

385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety

Large Image : 385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-70 3P+NPE
Document:	BR-70 3+1 1+1.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	100000 pieces per month

Contact Now

385V 70kA Pluggable Type 2 Surge Protection Device Lightning Arrester for AC Safety

Description

Uc:	385V	In:	40kA
Imax:	70kA	Tu:	-40℃...+80℃
Poles No.:	3+npe	Item:	Lightning Arrester
Keyword:	Lightning Protection	SPD Type:	Type 2 Class II
Poles:	3P+NPE	Mounting:	35mm DIN Rail
Protection Degree:	IP20	Response Time:	≤25ns ≤100ns
Operating Temperature:	-40℃ To 80℃	Enclosure Material:	Thermoplastic UL94-V0
Voltage Protection Level:	≤2.3kV	Backup Fuse:	200A GG
Application:	AC Power, Telecom Towers	Test Standards:	IEC 61643-11
Highlight:	70kA Pluggable Surge Protection Device , 385V Type 2 Lightning Arrester , DIN-Rail Mounted AC SPD

385V Type 2 Surge Protection Device Pluggable Lightning Arresters 3+ Npe AC Safety Reserve

Product Features

Type 2, Imax 70kA
Degree of protection: IP20
For mounting on: 35 mm Din rail
Plug-in modules for easy replacement
Option to remotely monitor the status of the surge protector
BR-70 3P+NPE with dedicated protection of the neutral pole discharge the common and differential mode overvoltages that may occur in installations with TT and TN-S systems

Technical Specifications

Model	BR-70 150 3P+NPE	BR-70 275 3P+NPE	BR-70 320 3P+NPE	BR-70 385 3P+NPE
SPD classification (EN61643-11)	Type 2	Type 2	Type 2	Type 2
SPD classification (IEC61643-11)	Class II	Class II	Class II	Class II
Max. continuous operating voltage (L-N)Uc	150V	275V	320V	385V
Max. continuous operating voltage (N-PE)Uc	255V	255V	255V	255V
Nominal discharge current (8/20us) In	40kA	40kA	40kA	40kA
Max. discharge current (8/20μs) Imax	70kA	70kA	70kA	70kA
Voltage protection level (L-N)Up	≤1.0kV	≤1.7kV	≤2.0kV	≤2.3kV
Voltage protection level (N-PE)Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Follow current extinguishing capability (N-PE) Ifi	100Arms	100Arms	100Arms	100Arms
Max. backup fuse	200A gG	200A gG	200A gG	200A gG
Response time tA	≤25ns/≤100ns
Operating temperature range	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Order Code	B8292	B8294	B8296	B8298
Order Code (With remote signaling)	B8293	B8295	B8297	B8299

Product Dimensions

Applications

Lightning strikes create surge currents which generate overvoltages in the power distribution and data transmission networks. The surge protective devices divert the surge current harmlessly to the ground and limit overvoltage to values compatible with the equipment connected to the network.

The series protects private homes, industrial equipment, and radio base stations. Used for AC power lines in houses, banks, telecom towers, and similar applications.

Product Advantages

Easy changing of the surge protection module thanks to a two-part design
Clearly readable function control indication and status display
Customizable color options
Customizable logo
Customizable packaging

Our Services

22 years global leading profession manufacture of electrical products surge arrester
All products will be well packed before shipping
Standard packaging with custom packaging options available
Faster delivery
Individually tested prior to shipment

Certifications

Shipping Information

Company Profile

Wenzhou Britec Electric Co., Ltd. is founded in 2003, which is a professional SPD manufacturer. Through the unremitting efforts of company leaders and employees, it has formed a one-stop service enterprise integrating technology, research and development, design, production and sales, and is committed to creating high-quality surge protection products. Our products have been tested and certified by testing agencies and hold certification certificates.

Why You Need Surge Arresters

Surge arresters are designed to interrupt and divert transient surge events to ground. Surge events are responsible for significant damage annually and can be caused by electrical storms or bank switching on electrical distribution lines. These events can affect sensitive electrical equipment, telephone networks, and computer networks.

SPDs are designed to protect sensitive equipment, minimize preventative maintenance, and prevent unscheduled equipment downtime.
