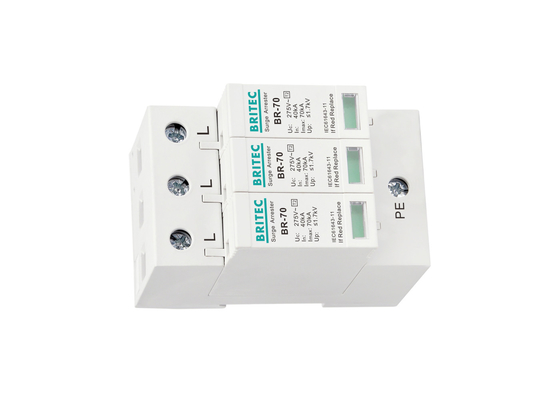

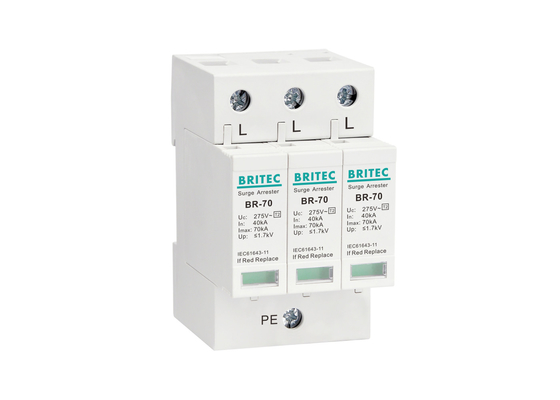

Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance

Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance

  • Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance
  • Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance
Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-70 3P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V
In: 40kA Imax: 70kA
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
System: Three Phase Class: Type 2
Highlight:

lightning surge arrester

,

2 pole surge protector


Three Phase Type 2 Surge Arrester 40kA~70kA 3P Fire Retardant Stable Performance

Three Phase Type 2 Surge Arrester Feature:


• Class II, Type 2, 70kA 3P.
• 70kA maximum surge current.
• This protector are tested following the Class II test from IEC61643-11 or EN61643-11 standards and based on 8/20 µs impulse current injection.
• The power supply surge protector, also known as the power supply lightning protection device, is suitable for TN-C system.
• Simple DIN rail mounting IP20 Protection.
• Remote signaling selectable.


Three Phase Type 2 Surge Arrester Product Details:


 BR150 70 3PBR275 70 3PBR320 70 3PBR385 70 3P
SPD classification according to EN61643-11Type 2Type 2Type 2Type 2
SPD classification according to IEC61643-11Class IIClass IIClass IIClass II
Max. continuous operating a.c. voltage     Uc150V275V320V385V
Nominal discharge current (8/20us)           In40kA40kA40kA40kA
Max. discharge current(8/20μs)             Imax70kA70kA70kA70kA
Voltage protection level                                 Up≤1.0kV≤1.7kV≤2.0kV≤2.3kV
Voltage protection level 5kA                         Up≤0.5kV≤0.9kV≤1.1kV≤1.3kV
Max. backup fuse200A gG200A gG200A gG200A gG
Response time                                           tA≤25ns≤25ns≤25ns≤25ns
Operating temperature range                   Tu-40℃-80℃-40℃-80℃-40℃-80℃-40℃-80℃
Operating state / fault indication  green / red    green / red    green / red    green / red
Cross-section area (Min.)4mm24mm24mm24mm2
Cross-section area (Max.)35mm235mm235mm235mm2
For mounting on35mm Din rail
Enclosure materialThermal plastic UL94-V0
Degree of protectionIP20IP20IP20IP20
Order CodeB8268B8270B8272B8274
Order Code (With remote signaling)B8269B8271B8273B8275


Dimension:

Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance 0

Three Phase Type 2 Surge Arrester Application:


• Surge Protective Devices provide protection against surge current resulted fromdirect or indirect lightning strike or similar surge voltage.
• Suitable for the indirect lightning and direct lightning impact or other instantaneous overvoltage surge protection, suitable for home housing, the third industry and industrial field surge protection requirements, with relative phase, relative.


Three Phase Type 2 Surge Arrester Advantage:


• Plug-in type function unit makes easy replacement
• Quick response less than 25ns
• Core components are strictly screened, stable performance and reliable operation
• Advanced production process and beautiful appearance


Our Services:


• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment


Working principle of product:

The lightning arrester can effectively protect the power equipment. Once the abnormal voltage appears, the lightning arrester will play a protective role. When the protected device is running under normal working voltage, the arrester will not work, and it will be regarded as a circuit for the ground. Once the high voltage is present and the insulation of the protected equipment is endangered, the lightning arrester acts immediately and leads the high voltage impact current to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the electrical equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so that the system can supply electricity normally. The main function of the lightning arrester is to reduce the voltage value of the protected equipment through the action of parallel discharge gap or nonlinear resistance, and to reduce the voltage value of the protected equipment, so as to protect the power equipment.

Company Information:

Wenzhou Britec Electric Co., Ltd is a company with production and sales of SPDs. Main business of our company is sale, manufacture and development of low voltage surge arrester.

Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance 1

Certifications:

Our major products have passed the CE, CB, TUV and several other qualification tests.

Three Phase Type 2 Surge Arrester 40kA - 70kA 3P Fire Retardant Stable Performance 2

FAQ:

Q1: What's your main product?
A1: Our mainly products are AC surge protection, PV(solar) surge protector, data surge protective device, and LED lightning arrester etc.

Q2: How do you control the quality?
A2: We do quality control by the factory testing department.

Q3: How long time you can make the shipping?
A3: Usually, we make the shipping around 20 days after confirming the order.

Q4: Are you manufacturer or trader?
A4: We are lightning protection manufacturer and have own factory.
