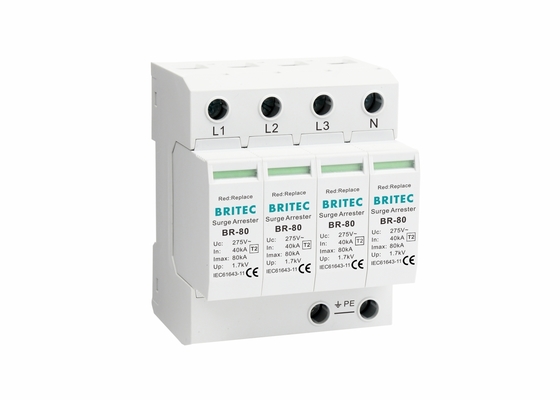

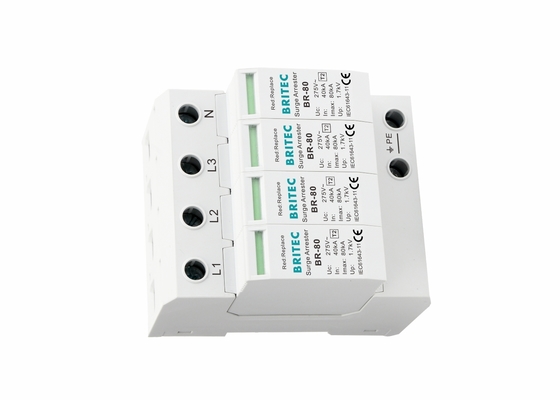

Imax 80kA Type 2 Surge Protection Device Feature:
• Class II, Type 2, 70kA
• 80kA maximum surge current
• Conforms to IEC 61643-11 and EN61643-11
• Protection Against Indirect Lightning and Switching Surges
• Simple DIN rail mounting IP20 Protection
• Remote signaling selectable.
Imax 80kA Type 2 Surge Protection Device Product Details:
| | BR-80 150 4P | BR-80 275 4P | BR-80 320 4P | BR-80 385 4P |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 40kA | 40kA | 40kA | 40kA |
| Max. discharge current(8/20μs) Imax | 80kA | 80kA | 80kA | 80kA |
| Voltage protection level Up | ≤1.0kV | ≤1.7kV | ≤2.0kV | ≤2.3kV |
| Voltage protection level 5kA Up | ≤0.6kV | ≤1kV | ≤1.1kV | ≤1.2kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 | IP20 | IP20 | IP20 |
| Order Code | B18260 | B18262 | B18264 | B18266 |
| Order Code (With remote signaling) | B18261 | B18263 | B18265 | B18267 |
Dimension:
Imax 80kA Type 2 Surge Protection Device Application:
• In case of surge current or voltage caused by lightningstrike or similar, SPD functions quickly to conduct the surge voltage/current to earth and thus effectively prevent the downstream equipments of its protected line from destruction.
• This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods).
• This surge protection devices are recommended for locations having a high exposure to lightning, for example, light entrances to buildings protected by lightning rods or powered by aerial lines.
Imax 80kA Type 2 Surge Protection Device Advantage:
• Pluggable cartridges on a fixed base plate, for easy installation and fast replacement.
• Quick response less than 25ns
• Mechanical status indicator
AC spd manufacturer.
Our price is lower than abb and dehn spd price.
Why do we need surge protection?
There are not many areas of the world today that do not experience surge-related incidents. Lightning is only one of the many causes of transient surge related problems. Today's modern electronic equipment is much smaller, much faster, and much more susceptible to transient related problems than was the last generation of equipment. The sheer number of control and communication devices interlinked together in today's networks make their susceptibility many times greater. These are new problems that were not nearly as frequent with previous generations of control equipment.
Our Services:
• 21 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment
Company information:
Our company has been in surge protector manufacture and export more than 21 years with good quality and nice price, CE certificate has gained. OEM servie is welcomed. We're happy to service each customer the best in the future.
Our workshop:
Our certificate:
FAQ:
Q1. Your company is a manufacturer or a trade company?
A: We are a manufacturer in the design and processing of all types of surge arrester products.
Q2. Which payment can offer?
A: We accept 30% payment in advance, the balance payment before shipping. We can accept the payment by T/T, Paypal and others.
Q3. Your shipment?
A: By Express: DHL, FEDEX, UPS, TNT and EMS etc. By Air: We can ship from Ningbo, Shanghai. By Sea: We can offer you FOB Ningbo, FOB Shanghai. We also can send to your forwarder or agent in China, who can arrange shipment for you.
