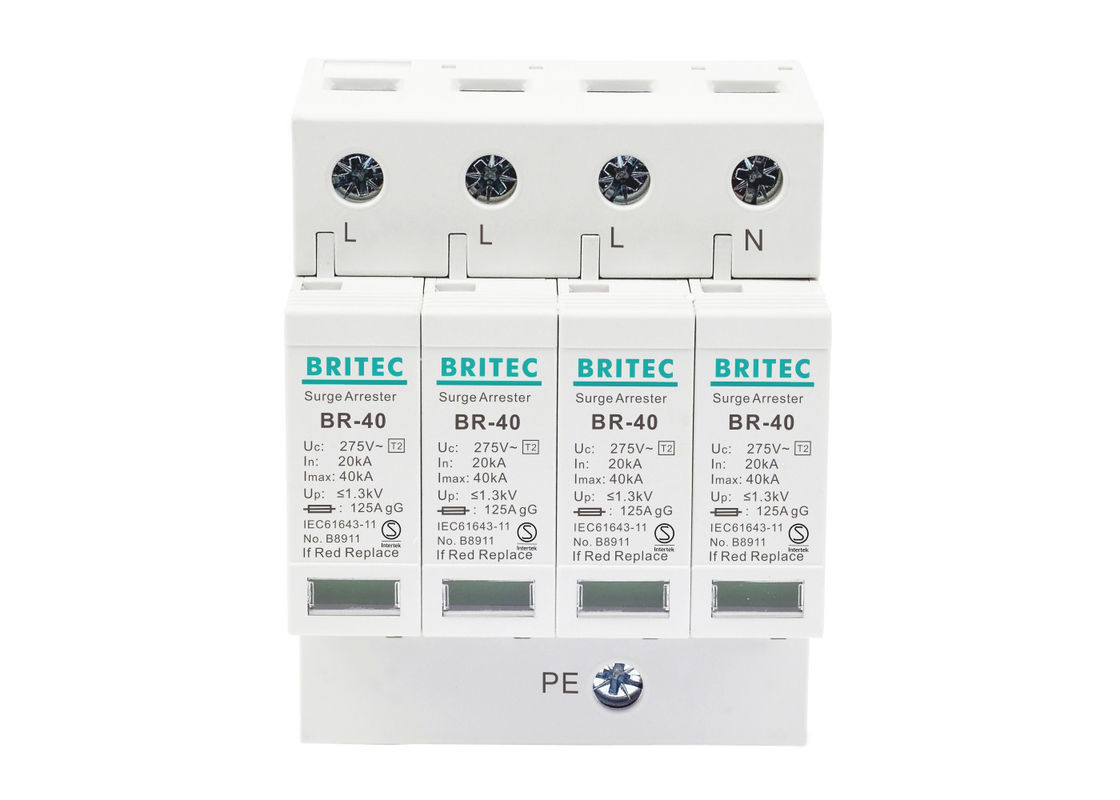

Name: AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified
Brand: BRITEC
SKU: BR-40 4P
Price: 1 USD
Availability: InStock
Rating: 4.8 (186 reviews)

Home Products Type 2 Surge Protection Device

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Uc:	150V / 275V / 320V / 385V / 440V
In:	20kA	Imax:	40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Tu:	-40℃...+80℃
Power:	AC	Item:	Surge Arrester
High Light:	2 pole surge protector , type 2 surge protector

Type 2 AC Surge Arrester 40kA SPD Din Rail 4P Surge Protector TUV Certified

AC Surge Arrester 40kA Type 2 Surge Protection Device Feature:

• Thermal stability 100A without additional protection

• Patented fast tripping mechanism

• SEMKO approval

• Imax 40kA 8/20us

• Modular design, standard 35mm DIN rail installation

• Working status indication window, and remote control contacts for your option

• Complies with EN 61643-11 on arresters connected to low voltage distribution systems.

• Enclosure material:Thermal plastic UL94-V0

• Surge arrester type 2 for three-phase systems with neutral

• Varistors protection L1, L2, L3, N, PE

AC Surge Arrester 40kA Type 2 Surge Protection Device Product Details:

	BR150 40 4P	BR275 40 4P	BR320 40 4P	BR385 40 4P	BR440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B8401	B8403	B8405	B8407	B8409
Order Code (With remote signaling)	B8402	B8404	B8406	B8408	B8410

Dimension:

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified 0

AC Surge Arrester 40kA Type 2 Surge Protection Device Application:

• Applicable to discharge overvoltage occurred by switch-type (8/20µs) over currents.

• BR-40 4 pole surge arrester is suitable for TN-S system.

• Used for lightning and overvoltage protection in AC50/60Hz, protect the low voltage power network from lightning or surge over votlage.

• Designed for installations where direct lightning strike risk is reduced (without LPS or medium risk)

• Also used in addition to the SPD type 1 in order to limit the operating voltage arresters

AC Surge Arrester 40kA Type 2 Surge Protection Device Advantage:

• High discharge current.

• Voltage protection level (Up) is low

• Interchangeable modules varistors

• IP20 protection

• Incorporate technology-based high energy varistors

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

AC Surge Arrester 40kA Type 2 Surge Protection Device Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.

• In areas where storms are frequent, it is strongly recommended to install additional protection systems.

Certificate:

Company profile:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified 2

Production flow:

AC Surge Arrester 40kA Type 2 Surge Protection Device SPD 4P TUV Certified 3

Laboratory equipment:

Shipping:

FAQ:

Q1: How can I trust you and your company?
A: Products pass CE, CB, TUV certificates.

Q2: How long is your products warranty?
A: The warranty period of our products is 2 Years.

Q3: How about inspection?
A: We have the whole inspection system from raw material to end products.

Q4: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
