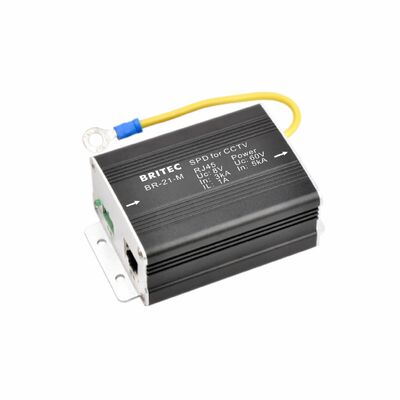

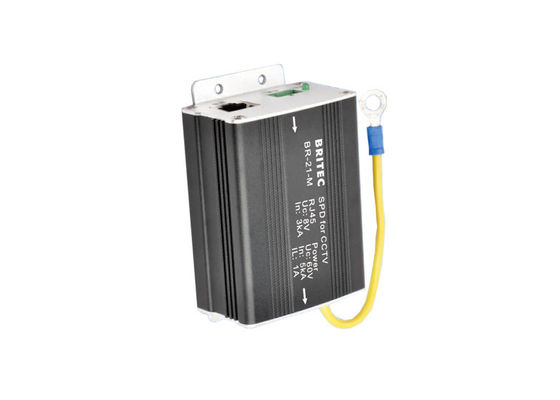

10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems

10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems
10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems 10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems

Large Image :  10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-CCTV-21M
Document: BR-CCTV.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month
Contact Now

10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems

Description
Name: Surge Arrester In: 5kA
Imax: 10kA Line Current IL: 1A
Interface: RJ45/Terminal Block Color: Black
Material: Aluminium Alloy Test Standards: IEC 61643-21
TA: ≤1ns Bandwidth: 30Mbps
Highlight:

spd surge protector

,

commercial surge protection devices

Imax 10kA CCTV Surge Protection Device Data SPD Surge Protector

Professional surge protection device for video monitoring systems with RJ45 connection and terminal block.

Key Features
  • Single channel, in-line, coaxial multi-stage video surge protector
  • Operating temperature range: -40℃ to +80℃
  • Designed for analog cameras or head-end applications
  • Provides multi-stage surge protection for video channels
Technical Specifications
Parameter CCTV-21M-48 CCTV-21M-230
Test standards IEC 61643-21
Max. continuous operating d.c. voltage (RJ45)Uc 8V 8V
Max. continuous operating a.c. voltage (RJ45)Uc 5.5V 5.5V
Max. continuous operating a.c. voltage (power)Uc 60V 275V
Nominal current IL 1A 1A
C2 Nominal discharge current (8/20us) In 3kA 3kA
C2 Max. discharge current(8/20μs) Imax 10kA 10kA
Voltage protection level [line-line/shield] (RJ45)Up ≤30V ≤30V
Voltage protection level [line/shield-PG] (RJ45)Up ≤500V ≤500V
Voltage protection level (power)Up ≤200V ≤1.2kV
Response time [line-line/shield] tA ≤1ns ≤1ns
Response time [line/shield-PG] tA ≤100ns ≤100ns
Operating temperature range Tu -40℃...+80℃ -40℃...+80℃
Connection input/output RJ45/Terminal block RJ45/Terminal block
Bandwidth 30Mbps 30Mbps
Insertion loss ≤0.3dB ≤0.3dB
Enclosure material Aluminium alloy Aluminium alloy
Degree of protection IP20 IP20
Order Code D9050 D9051
Product Dimensions
10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems 0
Applications
  • Protects monitor equipment (Power, Ethernet) in bank security systems
  • Video monitoring systems protection from lightning-induced surges
  • Security systems for schools, enterprises, and road monitoring
  • CCTV cameras and dome camera protection
  • Lightning protection for power and video transmission
Product Advantages
  • Easy installation and maintenance free
  • Low insertion loss
  • Quick response time
  • Multiple stage protection with high current discharge capability
  • High quality components ensure reliable performance
  • Matched interface for easy connection
  • Over current and overheating protection circuits
Manufacturer Services
  • 21 years professional manufacturer of electrical surge arresters
  • Prompt response to inquiries within 24 hours
  • OEM/ODM services available
  • Custom packaging options
  • IEC international standard compliance
  • Fast delivery and pre-shipment testing
IEC 61643-21 Standards

Defines performance requirements and testing methods for surge protective devices connected to telecommunications and signalling networks.

Manufacturing Workshop
10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems 1
Shipping Information
10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems 2
Product Certifications
10kA Surge Protection Device with Quick Response Multi-stage Protection and Low Insertion Loss for CCTV Systems 3
Frequently Asked Questions
Q1: Can I get some samples?
A: Yes, sample orders are welcome.
Q2: How to order our product?
A: Please provide the model, quantity, and any special requirements. We will prepare a proforma invoice for your confirmation before processing your order and arranging shipment with tracking information.
Q3: Can I use my own Logo or design on goods?
A: Yes, we offer customized logo and design options for mass production orders.
