Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un

Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un

  • Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un
  • Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un
  • Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un
  • Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un
Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-DB9 / BR-DB15 / BR-DB25
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 TU: -40℃…+80℃
Material: Aluminium Alloy TA: ≤1ns
Bandwidth: 10 Mbps Insertion Loss: ≤0.3dB
Un: 12V Uc: 15V
High Light:

data surge protection devices

,

commercial surge protection devices

10Mbps,SPDs for D-Sub,BR-DB,BR-DB9 / BR-DB15 / BR-DB25,aluminium alloy


Product Details:

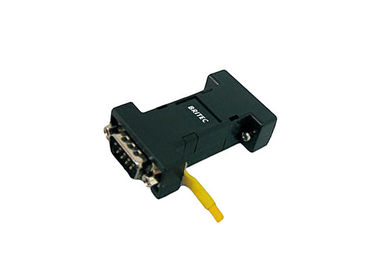

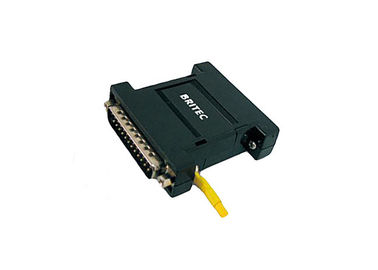

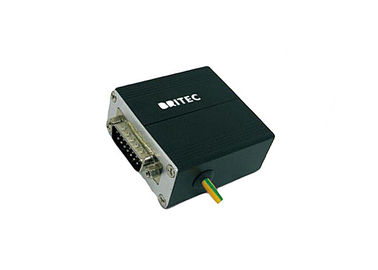

  BR-DB9 BR-DB15 BR-DB25
Test standards IEC 61643-21
Nominal voltage                                                Un 12V 12V 12V
Max.continuous operating d.c.voltage              Uc 15V 15V 15V
C2 Nominal discharge current (8/20us) line-SG In 5kA 5kA 5kA
C2 Nominal discharge current (8/20us) SG-PG In 10kA 10kA 10kA
Voltage protection level [line-SG]                     Up ≤40V ≤40V ≤40V
Voltage protection level [SG-PG]                      Up ≤500V ≤500V ≤500V
Response time [line-SG]                                    tA ≤1ns ≤1ns ≤1ns
Response time [SG-PG]                                    tA ≤100ns ≤100ns ≤100ns
Operating temperature range                           Tu -40℃…+80℃
Connection (input/output)  D-Sub 9 plug / socket   D-Sub 15 plug / socket  D-Sub 25 plug / socket
Pinning line:3/8,SG:5,PG:1 line:2/9,4/11,SG:8,PG:1 line:2/3/4/5/6/8/20,SG:7
Bandwidth 10Mbps 10Mbps 10Mbps
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Enclosure material aluminium alloy aluminium alloy aluminium alloy
Degree of protection IP20 IP20 IP20
Order Code D9070 D9071

D9072

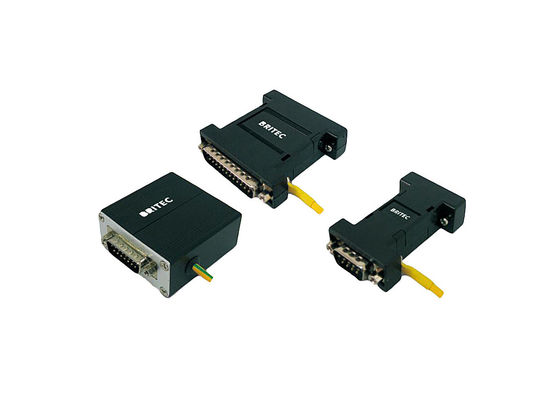

Product Description:

Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 0

Dimension:

Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 1Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 2


Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 3


Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 4


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 5


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 6


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 7


Product Uses:


Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

Aluminium Alloy Surge Protection Device Black Color 12 V Nominal Voltage Un 8


FAQ:



Q1. What Certificates Have You Got?
A1: Our company is verified by ISO9001, and products approved by CE, CB, TUV etc.



Q2. What is your terms of payment?
A2: T/T 30% as deposit, 70% before delivery.



Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF.



Q4. How about your delivery time?
A4: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A5: Yes, we could produce by your samples or technical drawings. We are power in R&D.
