| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BRRJ45-24 |
| Minimum Order Quantity: | 200 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Place Of Origin: | Zhejiang, China (Mainland) | Type: | RJ45 |
|---|---|---|---|
| Model Number: | BRRJ45-24 | Item Name: | Network Surge Protector |
| Tu: | -40℃-80℃ | Un: | 5v |
| Highlight: | ethernet lightning arrestor,ethernet surge protector poe |
||

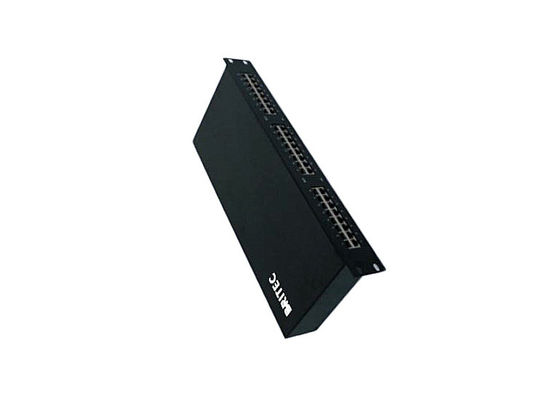

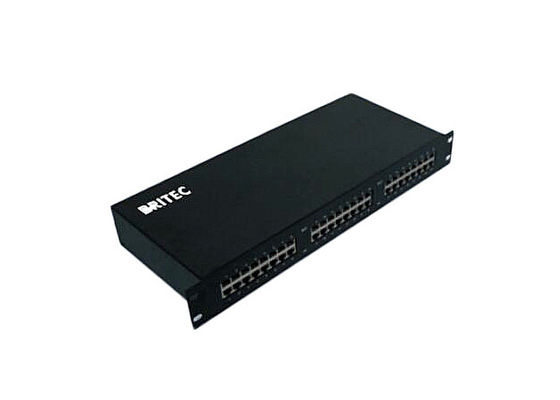

24 Port RJ45 Network Lightning Surge Protector With POE Support
Product Details:
| BRRJ45-24 | |
| Test standards | IEC 61643-21 |
| Nominal voltage Un | 5V |
| Max.continuous operating d.c.voltage Uc | 6V |
| Max.continuous operating a.c.voltage Uc | 4V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤30V |
| Voltage protection level [line-PG] Up | ≤500V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection (input/output) | RJ45 socket |
| Protect The Port Quantity | 24 ports |
| Bandwidth | 30 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Dimension:
Packaging & Shipping:
• Package: Export standard carton or according to customers' requests.
• Shipping: by express, by sea or by air.
Company Information:
Britec Electric Wenzhou Co.,Ltd. Which is a professional manufacturer, mainly work for low
voltage equipment research and development, manufacturing, selling and After-sale service,
which specialized in surge protection device.
FAQ:
Q1: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you, maybe he has other bussinesses temporarily.
So please leave your requirements on e-mail, we will reply you as soon as possible.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More important, we put a high value on our reputation.
Best quality is our principle all the time. You can be assured on our production completely.
Q3: What's your terms of payment?
A: T/T 30% deposit, and 70% before delivery. We will show you the photos of the products and
packages before you pay the balance.
Q4: What's the delivery time?
A: It depends on the type of the product and quantity, generally it takes about 15-30 days
for production.
Q5: What's your terms of packing?
A: Generally our packing is cartons, or customized packing according to customer needs.
