Place of Origin: | China |
Brand Name: | BRITEC |
Model Number: | BRRJ45-16 |
Minimum Order Quantity: | 200 Piece/Pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 15-30 days after payment |
Payment Terms: | T/T |
Supply Ability: | 50000 Piece/Pieces per Month |
Place Of Origin: | Zhejiang, China (Mainland) | Type: | RJ45 |
---|---|---|---|
Model Number: | BRRJ45-16 | Item Name: | Ethernet Surge Protector |
Tu: | -40℃-85℃ | Protaction: | IP20 |
High Light: | ethernet lightning arrestor,ethernet surge protector poe |
16 Channel Ethernet Surge Protector POE Connector Network Surge Arrester
Product Details:
BRRJ45-16 | |
Test standards | IEC61643-21 |
Nominal voltage Un | 5V |
Max.continuous operating d.c.voltage Uc | 6V |
Max.continuous operating a.c.voltage Uc | 4V |
Nominal current IL | 0.5A |
C2 Nominal discharge current (8/20us) per line In | 5kA |
Voltage protection level [line-line] Up | ≤30V |
Voltage protection level [line-PG] Up | ≤500V |
Response time [line-line] tA | ≤1ns |
Response time [line-PG] tA | ≤100ns |
Operating temperature range Tu | -40℃…+80℃ |
Connection (input/output) | 16 channels RJ45 |
Bandwidth | 100Mbps |
Insertion Loss | ≤0.3dB |
Enclosure material | aluminium alloy |
Degree of protection | IP20 |

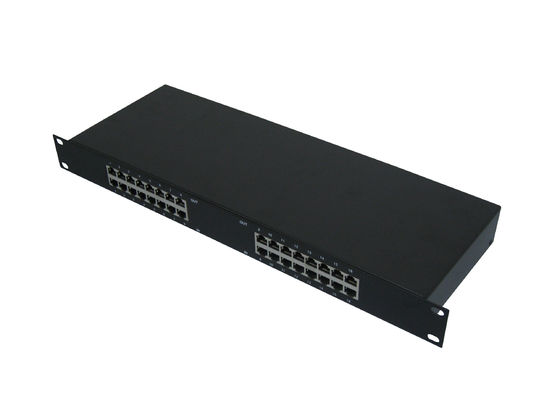

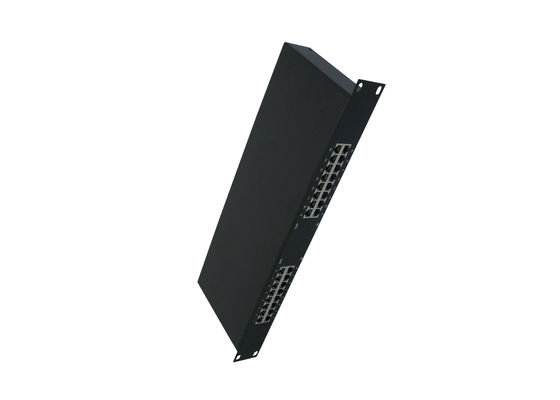

Product View:
Transport:
• For small batches, fast delivery is required. You can use UPS, DHL, TNT or FedEx.
• For large quantities, you can choose to air or sea.
FAQ:
Q1: Which country do you export?
A: Europe, South America, Southeast Asia, South Africa, Middle East.
Q2: What's the payment terms?
A: Payment term: 30% prepayment, 70% before shipment.
Q3: Are you the manufacturer or trader?
A: We are a professional manufacturer located in Yueqing city, Zhejiang province, China.
Q4: What is your after-sales service and delivery?
A: We can reply the customer's question and resolve it within 24 hours everyday and give full
technical support in time about our products. The delivery is base on the order quantity,
generally we need 15-30days can finish it.
Q5: What is the quality warranty about your product?
A: About the quality warranty, we have the quality certificates like CE, CB, TUV, ISO9001 etc..
Meanwhile, we also can supply 2 years quality guarantee.
