RJ45 8 Port Ethernet Surge Protector Cat6 IEC61643-21 Standard
Technology characteristic:
• Shielded RJ-45 sockets.
• Compliance: IEC 61643-21.
• Insertion loss: <0.5dB (100MHz).
• Nominal Discharge Current (8/20μs): 5 KA.
• Data line protection: RJ45 10/100Base-T Ethernet.
• Each module may be powered by separate power supply unit.
Product Details:
| |
BRRJ45-8 |
| Test standards |
IEC61643-21 |
| Nominal voltage Un |
5V |
| Max.continuous operating d.c.voltage Uc |
6V |
| Max.continuous operating a.c.voltage Uc |
4V |
| Nominal current IL |
0.5A |
| C2 Nominal discharge current (8/20us) per line In |
5kA |
| Voltage protection level [line-line] Up |
≤30V |
| Voltage protection level [line-PG] Up |
≤500V |
| Response time [line-line] tA |
≤1ns |
| Response time [line-PG] tA |
≤100ns |
| Operating temperature range Tu |
-40℃…+80℃ |
| Connection (input/output) |
RJ45 socket |
| Protect The Port Quantity |
8 Ports |
| Bandwidth |
100M |
| Insertion Loss |
≤0. 2dB |
| Enclosure material |
aluminium alloy |
| Degree of protection |
IP20 |

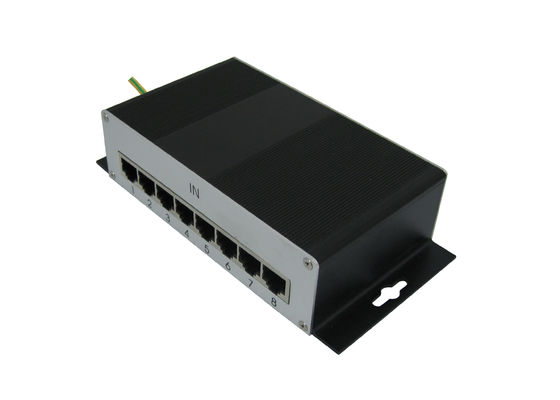

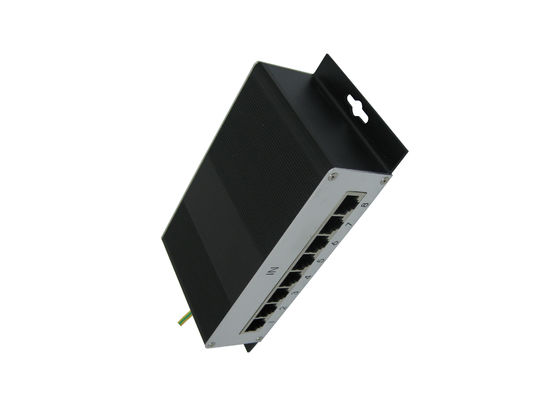

Product view:
Application:
• Protects any RJ45 Ethernet based device like switches, DSL modems, routers, computers, etc.
• Used for basic and fine protection of information-based systems from surges as caused by
atmospheric discharges (lightning) or by capacitive or inductive interferences.
• Protects data and POE pairs, against electrical surcharges that may occur during storms.
Advantage:
• Fast energy absorption on over-voltage.
• Low resistance and minimal capacitance - minimal influence on data link.
• Easy in-line installation.
Installation:
• It installs simply on a Cat5, Cat 5e or Cat6 4 twisted pair cable.
