| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR275-6-L |
| Minimum Order Quantity: | 200 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Item Name:: | Led Spd | Model Number:: | BR275-6-L |
|---|---|---|---|
| Material:: | Thermal Plastic | Protection: | IP20 |
| Application: | Lighting | Tu: | -40℃-80℃ |
| Un: | 230V | Standard:: | IEC 61643-11 And EN 61643-11 |
| High Light: | rcd residual current device,miniature circuit breaker |
||

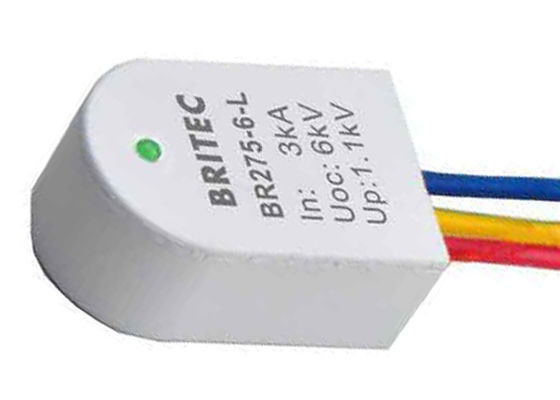

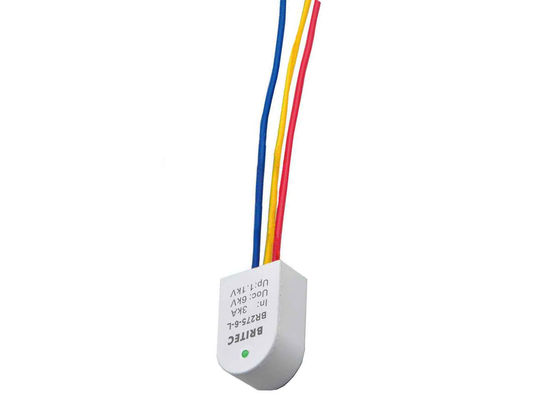

Class III 275V 230V Led Street Light 3kA SPD LED Surge Protectors For Street Lightings
Product Description:
| BR275-6-L | |
| SPD classification according to EN61643-11 | Type 3 |
| SPD classification according to IEC 61643-11 | Class III |
| Nominal a.c. voltage Un | 230V |
| Max. continuous operating a.c. voltage Uc | 275V |
| Max. continuous operating d.c. voltage Uc | 300V |
| Nominal discharge current (8/20us) In | 3kA |
| Combined impulse Uoc | 6kV |
| Voltage protection level Up | ≤1200V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state / fault indication | LED |
| For mounting on | 35mm Din rail |
| Enclosure materail | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
Technology characteristic:
Packaging & Shipping:
Inner package is usually white box, and the outer package is brown carton. Also special cartons can
be made for the customer if have any requirements.
Company Information:
Britec Electric Wenzhou Co., Ltd. is a factory that specialized in the production of SPDs, and it is
the manufacturer of design, production and sales of integrated.
Certifications:
FAQ:
Q1. Can I have a sample order for products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs just about 7-10 days, mass production time needs 2-3 weeks.
Q3. Do you have any MOQ limit for products order?
A: The MOQ for each product category is negotiated individually, for samples checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea
shipping also optional.
Q5. How to proceed an order for products?
A: Firstly let us know your requirements or application. Secondly We quote according to your
requirements or our suggestions. Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
