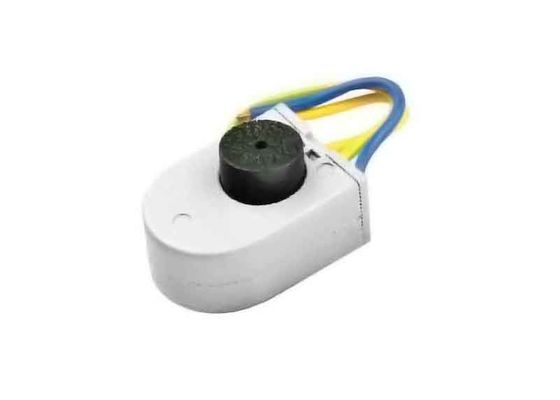

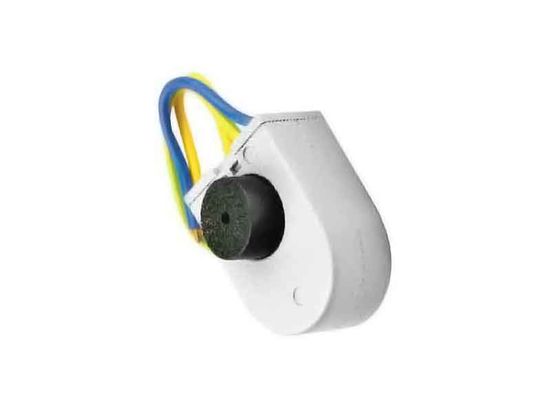

Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications

Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications

  • Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications
  • Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications
Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR275-6-B
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: LED Surge Protection Model Number:: BR275-6-B
Material:: Thermal Plastic UL94-V0 Un: 230V
Uc: AC 275V Tu: -40℃-80℃
In: 3kA Standard:: IEC61643-11 / EN 61643-11
Uoc: 6kV Up: ≤1200V
Highlight:

rcd residual current device

,

miniature circuit breaker

New Designed 3kA 6kV Surge Protection Device For LED Lighting Applications



Compact 3kA 6kV LED Surge Protection Device Product Description:



• Surge Protection Device: 275V AC.
• 3kA nominal discharge current (8/20us).
• Build-in beep status indication.
• Degree of protection: IP20.
• IEC 61643-11 / EN 61643-11 recognized.
• Features a thermally protected transient over-voltage circuit.
• This product is constructed with thermally protected varistors and a built-in thermal disconnect function.


Compact 3kA 6kV LED Surge Protection Device Product Details:



  BR275-6-B
SPD classification according to EN61643-11 Type 3
SPD classification according to IEC 61643-11 Class III
Nominal a.c. voltage                                                  Un 230V
Max. continuous operating a.c. voltage                     Uc 275V
Max. continuous operating d.c. voltage                     Uc 300V
Nominal discharge current (8/20us)                            In 3kA
Combined impulse                                                   Uoc 6kV
Voltage protection level                                              Up ≤1200V
Response time                                                            tA ≤25ns
Operating temperature range                                     Tu -40℃—80℃
Operating state / fault indication BEEP
For mounting on 35mm Din rail
Enclosure materail                    Thermal plastic UL94-V0
Degree of protection IP20



Dimension:



Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications 0



Compact 3kA 6kV LED Surge Protection Device Application:

• Protection of LED street light from surge and transient over-voltage caused by the inducted lightning stroke or by internal power systems.
• Provide an additional level of protection against power line disturbances in industrial, commercial and residential applications.
• Suitable for indoor and outdoor lighting, tunnel lighting, and building lighting.
• Recommended for industrial, commercial, and residential applications.

Why need LED surge protector?

LED lamp posts can be directly struck by lightning since they are usually in an exposed position. In some cases, this can affect entire streets, since the lights are interconnected within the power grid. If there are no suitable protective devices in place, the lightning current quickly can be dispersed across the entire installation and incur significant damage. Accordingly, suitable surge protection should be used as protection against damage from lightning or surge voltages.



Certifications:



Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications 1



Company information:



Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing city, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has got highly praise from customers.



Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications 2



Workshop:



Compact 3kA 6kV LED Surge Protection Device For LED Lighting Applications 3



FAQ:



Q1. What Certificates Have You Got?
A1: Our company is verified by ISO9001, and products approved by CE, CB, TUV etc.



Q2. What is your terms of payment?
A2: T/T 30% as deposit, 70% before delivery.



Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF.



Q4. How about your delivery time?
A4: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A5: Yes, we could produce by your samples or technical drawings. We are power in R&D.
