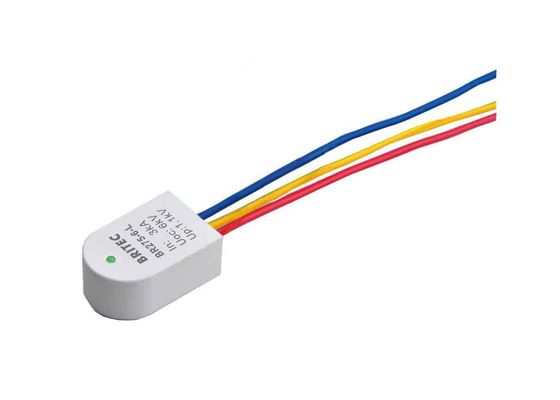

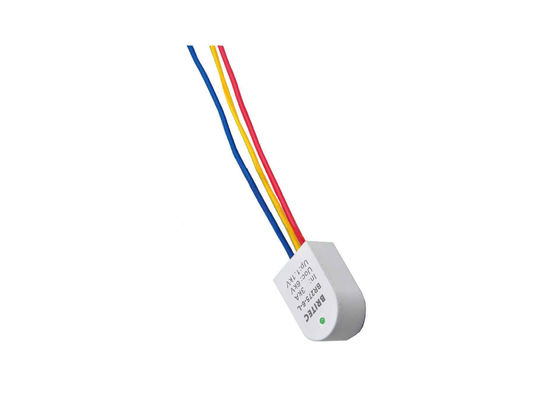

Name: Type 3 Class III SPD LED Surge Protection Device 3kA 6kV With Status Indicator
Brand: BRITEC
SKU: BR275-6-L

Home Products LED Surge Protection Device

Type 3 Class III SPD LED Surge Protection Device 3kA 6kV With Status Indicator

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR275-6-L

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	Surge Arrester	Classification:	Type 3 / Class III
Un:	230V	Uc:	AC 275V
In:	3kA	Tu:	-40℃—80℃
Uoc:	6kV	Up:	≤1200V
TA:	≤25ns	Materail:	Thermal Plastic UL94-V0
High Light:	rccb circuit breaker , miniature circuit breaker

Type 3 Class III SPD 3kA 6kV For LED Lighting Surge Protection

Product Description:

• Nominal Discharge current: 3kA.

• With status indicator.

• Thermally protected varistor technology.

• IP20 degree of protection.

• Thermal plastic UL94-V0.

• Compliant with IEC 61643-11 Class III and EN 61643-11 Type 3.

Product Details:

	BR275-6-L
SPD classification according to EN61643-11	Type 3
SPD classification according to IEC 61643-11	Class III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Max. continuous operating d.c. voltage Uc	300V
Nominal discharge current (8/20us) In	3kA
Combined impulse Uoc	6kV
Voltage protection level Up	≤1200V
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	LED
For mounting on	35mm Din rail
Enclosure materail	Thermal plastic UL94-V0
Degree of protection	IP20

Dimension:

Type 3 Class III SPD LED Surge Protection Device 3kA 6kV With Status Indicator 0

Application:

• Provide transient overvoltage protection for LED lighting fixtures.

• Used to roadway lighting, traffic lighting, flood lighting, tunnel lighting and street lighting.

Advantage:

• High-quality.

• Dependable materials.

• Compact form and easy to install.

• Robust surge current handling capability.

• A built-in thermal disconnect function.

Why need LED surge protector?

• In the field of street lighting, LED luminaires are directly exposed to close and distant lightning

strikes and surge voltages, on account of their exposed position. These loads can lead to a

reduction in the luminous intensity or to the destruction of the electronic ballasts. There is the risk

of failure and of high repair costs. Accordingly, suitable surge protection should be used as

protection against damage from lightning or surge voltages.

Shipping:

Company Introduction:

Britec Electric Wenzhou Co., Ltd. was built in 2003, we are the suppliers of SPDs in China. And

specializing in OEM&ODM surge protection products for more than 17 years. Located in Liushi

electrical capital of China, the City of Electrical Appliance, adjoining on the Wenzhou Airport 45

minutes, our cooperation owns the advantaged recourses in convenient transportation and basic

facilities. The special production are as follows : AC surge arrester, PV(solar) surge protective

device, data surge protector, LED lightning protection, etc.. All the products have achieved the

standard of IEC, and have passed ISO9001: the international quality control system. Some of the

products have passed the international attestations such as CE, CB, TUV, etc.

Type 3 Class III SPD LED Surge Protection Device 3kA 6kV With Status Indicator 2

FAQ:

Q1: What is the price?
A: Please contact with us on E-mail/Wechat/Skype/WhatsApp, all your enquiry will be replied as soon

as possible.

Q2: Do you have a catalogue?
A: Yes, we have product catalogues, if needed we can send to you one by one.

Q3: Can I get a sample before the order?
A: Yes, we can provide samples, but it is not free.

Q4: How long is the product warranty period?
A: Normally, warranty period is two years.
