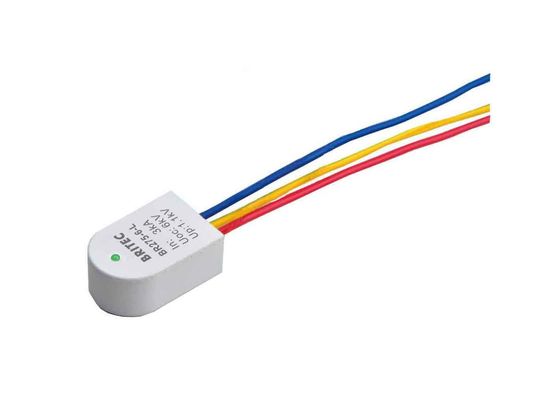

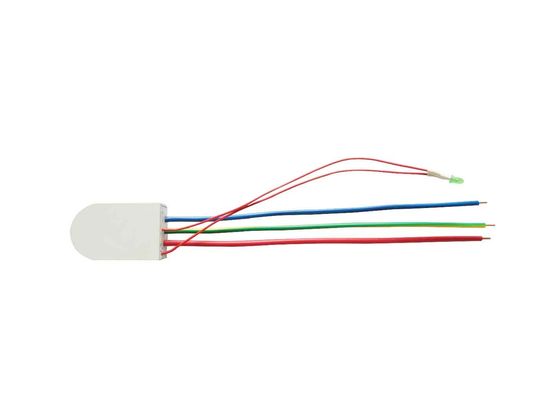

UL94-V0 Thermoplastic Surge Protective Device Type 3 SPD with 3kA Nominal Discharge Current and -40 to 80 ℃ Operating Temperature

UL94-V0 Thermoplastic Surge Protective Device Type 3 SPD with 3kA Nominal Discharge Current and -40 to 80 ℃ Operating Temperature
UL94-V0 Thermoplastic Surge Protective Device Type 3 SPD with 3kA Nominal Discharge Current and -40 to 80 ℃ Operating Temperature UL94-V0 Thermoplastic Surge Protective Device Type 3 SPD with 3kA Nominal Discharge Current and -40 to 80 ℃ Operating Temperature

Large Image :  UL94-V0 Thermoplastic Surge Protective Device Type 3 SPD with 3kA Nominal Discharge Current and -40 to 80 ℃ Operating Temperature

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR275-6
Document: BR275-6.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month
Contact Now

UL94-V0 Thermoplastic Surge Protective Device Type 3 SPD with 3kA Nominal Discharge Current and -40 to 80 ℃ Operating Temperature

Description
Un: 230V In: 3kA
Uoc: 6kV Up: ≤1200V
TA: ≤25ns Tu: -40℃…+80℃
Mounting On: 35mm Din Rail Materail: Thermoplastic UL 94-V0
Item: Surge Protective Device Class: Type 3
Keyword: Lightning Protection Test Standards: IEC 61643-11 / EN61643-11
Warranty: 5 Years
Highlight:

type 3 surge protector

,

type 3 surge arrester

UL94-V0 Surge Protective Device Type 3 SPD -40 - 80 ℃ Operating Temperature
Type 3 surge arrester is installed between LPZ2 and LPZ3, providing protection for equipment.
Dimensions
Dimension diagram of UL94-V0 Surge Protective Device Type 3 SPD
Product Specifications
Parameter BR275-6-L BR275-6-B
SPD classification according to EN61643-11 Type 3 Type 3
SPD classification according to IEC61643-11 Class III Class III
Nominal a.c. voltage Un 230V 230V
Max. continuous operating a.c. voltage Uc 275V 275V
Max. continuous operating d.c. voltage Uc 300V 300V
Nominal discharge current (8/20μs) In 3kA 3kA
Combined impulse Uoc 6kV 6kV
Voltage protection level Up ≤1200V ≤1200V
Response time tA ≤25ns ≤25ns
Operating temperature range Tu -40℃ - 80℃ -40℃ - 80℃
Operating state / fault indication LED BEEP
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20
Order Code B8455 B8457
Manufacturing Facility
Britec owns advanced test equipment and production lines, perfect management systems, professional technical personnel, and well-trained workers. Our team continuously develops new products for our customers, ensuring our technical level reaches leading industry standards. We also provide OEM/ODM services.
Britec manufacturing workshop and production facilities
Company Profile
Wenzhou Britec Electric Co., Ltd. was established in 2003 and is a professional surge protective devices (SPD) manufacturer with many years of experience. We provide quality products, competitive pricing, prompt delivery, and excellent service, and look forward to greater cooperation with overseas trade partners based on mutual benefits.
Wenzhou Britec Electric Company facility and operations
Global Presence
Britec has a strong sales team, and our surge protection devices are sold to many countries worldwide. Europe and Asia are our main markets. We are committed to cooperating with global customers and helping you succeed in your market.
Certifications
Britec offers a full range of SPD products with CE, RoHS, TUV, SEMKO, and CB certifications. The company implements ISO9001 quality management systems.
Britec product certifications and quality standards
Product Applications
Britec has developed a wide range of products covering requirements in low voltage lightning protection, including SPDs for power systems, PV systems, and data systems. These products are widely applied in electronic systems, computer networks, security systems, and protection for power industry, petroleum chemical industry, and national defense industry.
Applications of Britec surge protection devices in various industries
Frequently Asked Questions
Q1: Are you a manufacturer of surge arresters?
A1: Yes. We have 22 years of export experience.
Q2: What is the delivery time?
A2: 30 days after order confirmation.
Q3: What after-sales service do you provide?
A3: If you have any questions about the product, we will try our best to resolve them.
Q4: What is your return policy?
A4: If the product has quality issues, we will accept returns and send replacements.
