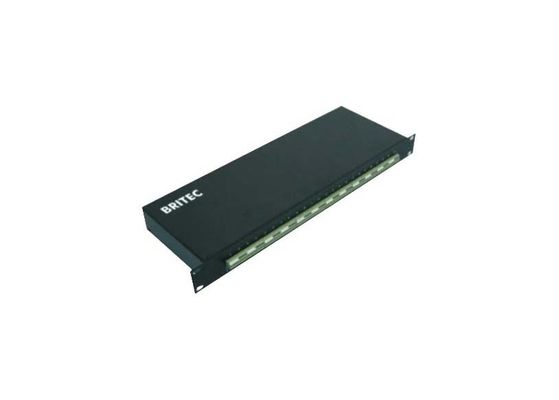

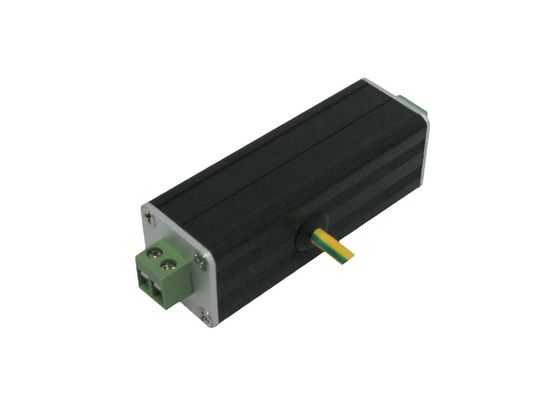

5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy

5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy

  • 5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy
  • 5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy
5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRGI-2L
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 TU: -40℃…+80℃
Enclosure Material: Aluminium Alloy Degree Of Protection (plugged-in): IP20
IL: 0.5A In: 5kA
Bandwidth: 10 Mbps Insertion Loss: ≤0.3dB
Highlight:

data surge protection devices

,

commercial surge protection devices

5kA SPD for Date BRGI-2L aluminium alloy,for general information



Product Details:



   BRGI-2L-6  BRGI-2L-12  BRGI-2L-24  BRGI-2L-48  BRGI-2L-60  BRGI-2L-180
Test standards IEC 61643-21
Nominal voltage                                     Un 6V 12V 24V 48V 60V 180V
Max.continuous operating d.c.voltage   Uc 8V 15V 29V 56V 70V 180V
Max.continuous operating a.c.voltage   Uc 5V 11V 20V 40V 49V 130V
Nominal current                                       IL 0.5A 0.5A 0.5A 0.5A 0.5A 0.5A
C2 Nominal discharge current (8/20us) per line                                                    In 5kA 5kA 5kA 5kA 5kA 5kA
Voltage protection level [line-line]          Up ≤30V ≤40V ≤60V ≤100V ≤130V ≤320V
Voltage protection level [line-PG]          Up ≤600V ≤600V ≤600V ≤600V ≤600V ≤600V
Response time [line-line]                        tA ≤1ns ≤1ns ≤1ns ≤1ns ≤1ns ≤1ns
Response time [line-PG]                         tA ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns ≤100ns
Operating temperature range                 Tu -40℃…+80℃
Connection (input/output) Terminal Block
Bandwidth 10Mbps 10Mbps 10Mbps 10Mbps 10Mbps 10Mbps
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB
Enclosure material aluminium alloy
Degree of protection (plugged-in) IP20 IP20 IP20 IP20 IP20 IP20
Order Code 1 port D9001 D9002 D9003 D9004 D9005 D9006
Order Code 24ports D9007 D9008 D9009 D9010 D9011 D9012



Product Description:

5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy 0

Dimension:


5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy 1


Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy 2


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy 3


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy 4


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy 5


Product Uses:


Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

5 KA Spd Surge Protection Device , Stable Industrial Surge Protector Aluminium Alloy 6


FAQ:



Q1. What Certificates Have You Got?
A1: Our company is verified by ISO9001, and products approved by CE, CB, TUV etc.



Q2. What is your terms of payment?
A2: T/T 30% as deposit, 70% before delivery.



Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF.



Q4. How about your delivery time?
A4: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A5: Yes, we could produce by your samples or technical drawings. We are power in R&D.
