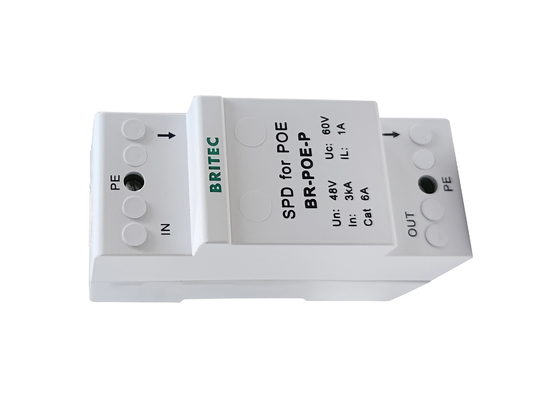

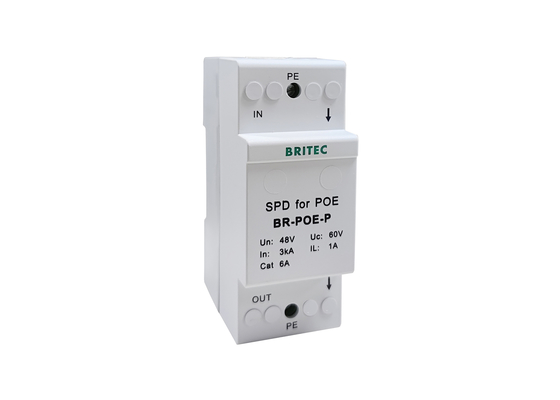

Type2 P1 SPD for POE Network Surge Protection Signal Surge Protective Devices
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-POE-P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 SPD Class: TYPE2 P1
TU: -40℃…+80℃ Material: Polyamide PA 6.6
Limp: 0.5kA Mounting On: 35mm DIN Rails Acc. To EN 60715
Connection: RJ45 Socket /RJ45 Socket Pinning: 1/2,3/6,4/5,7/8
Un: 48V IL: 1A
High Light:

spd surge protector

,

commercial surge protection devices

Type2 P1 SPD for POE Network Surge Protection, Signal Surge Protective Devices



Type2 P1 SPD for POE Network Surge Protection Feature:



• Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.

• Protect transmission of Ethernet signals with 48V DC / 34V AC power supply circuits against lightning induced surges.

• Standard: IEC 61643-21

• Enhanced surge protection.

• For mounting on 35mm DIN rails acc. to EN 60715

• It can effectively ensure the equipments work properly



Dimension:



Type2 P1 SPD for POE Network Surge Protection Signal Surge Protective Devices 0



Type2 P1 SPD for POE Network Surge Protection Product Details:



  BR-POE-P
Test standards IEC 61643-21
SPD class TYPE2 P1
Nominal voltage                                                                  Un 48V
Max.continuous operating d.c.voltage                                Uc 48V
Max.continuous operating a.c.voltage                                Uc 34V
Max.continuous operating d.c.voltage pair-pair(Poe)         Uc 57A
Nominal current at 45℃                                                       IL 1A
D1 Lightning impluse current (10/350us)per line              limp 0.5kA
C2 Nominal discharge current (8/20us)line-line                   In 150A
C2 Nominal discharge current (8/20us)line-PG                    In 2.5kA
C2 Total nominal discharge current (8/20us)line-PG           In 10kA
C2 Nominal discharge current (8/20us)pair-pair(POE)        In 150A
Voltage protection level pair-pair for In C2                         Up   ≤180V
Voltage protection level line-PG for In C2                           Up   ≤500V
Voltage protection level line-line for In C2(Poe)                 Up   ≤600V
Insertion loss at 250MHz  ≤3dB
Capacitance line-line                                                            C   ≤30pF
Capacitance line-PG                                                            C   ≤25pF
Operating temperature range                                             Tu -40℃…+80℃
For mounting on        35mm DIN rails acc. to EN 60715
Connection (input/output) RJ45 socket/ RJ45 socket
Pinning 1/2,3/6,4/5,7/8
Earthing via 35mm DIN rails acc. to EN 60715
Enclosure material polyamide PA 6.6
Degree of protection (plugged-in) IP 10
Order Code D9161



Production process:



Type2 P1 SPD for POE Network Surge Protection Signal Surge Protective Devices 1



About us:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.



Type2 P1 SPD for POE Network Surge Protection Signal Surge Protective Devices 2



Laboratory:



Type2 P1 SPD for POE Network Surge Protection Signal Surge Protective Devices 3



Certification:



Type2 P1 SPD for POE Network Surge Protection Signal Surge Protective Devices 4



Shipping:



Type2 P1 SPD for POE Network Surge Protection Signal Surge Protective Devices 5
