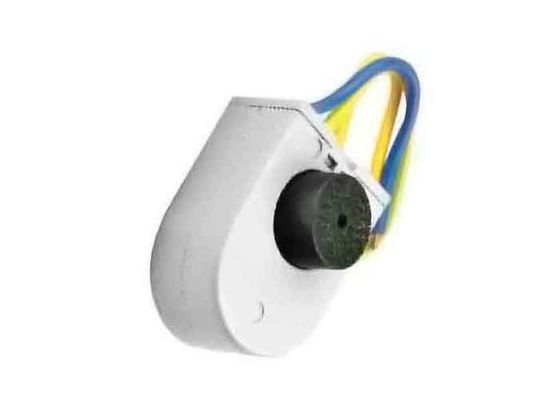

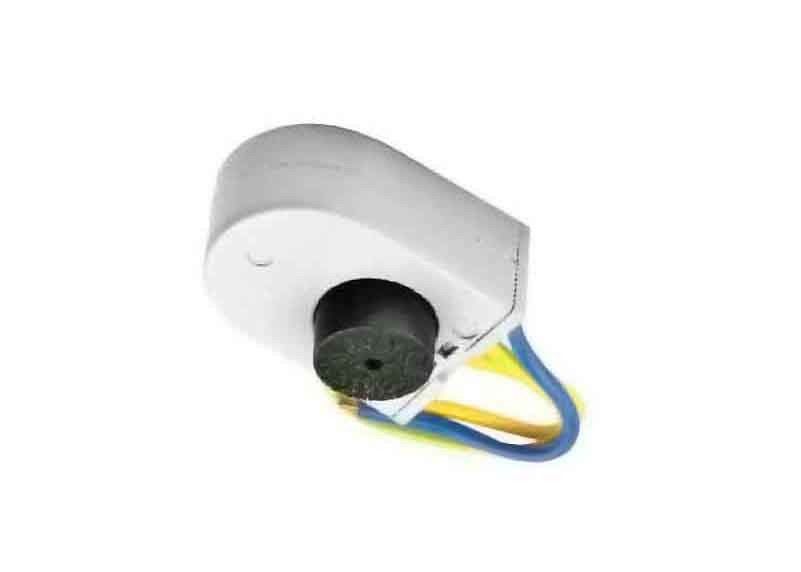

Name: 6kA SPD LED Surge Protection Device For LED Street Lighting , Long Life
Brand: BRITEC
SKU: BR275-6-B
Rating: 4.7 (162 reviews)

Home Products LED Surge Protection Device

6kA SPD LED Surge Protection Device For LED Street Lighting , Long Life

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR275-6-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Type:	Type 3
Model Number:	BR275-6-B	Item Name:	LED Surge Protector
Material:	Thermal Plastic UL94-V0	Un:	230v
Uc:	275v	In:	3kA
Uoc:	6kv	Up:	≤1200v
Rated Frequency:	50/60 Hz	TA:	≤25ns
Highlight:	rccb circuit breaker , miniature circuit breaker

LED Surge Protector 6kA SPD Surge Protection for LED Street Lighting

Feature:

• Class III Protection.

• Build-in beep status indication.

• IEC 61643-11 / EN 61643-11 recognized.

• Resistant to Peaks and Surges of up to 6kA.

• For use with Voltage up to 275V, 50/60 Hz. Power Supply.

• High Temperature Enclosure: Up to 80°C max. Surface Temperature Rating.

• This product is constructed with thermally protected varistors and a built-in thermal disconnect function.

Product detail:

	BR275-6-B
SPD classification according to EN61643-11	Type 3
SPD classification according to IEC 61643-11	Class III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Max. continuous operating d.c. voltage Uc	300V
Nominal discharge current (8/20us) In	6kA
Combined impulse Uoc	6kV
Voltage protection level Up	≤1200V
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	BEEP
For mounting on	35mm Din rail
Enclosure materail	Thermoplastic UL94-V0
Degree of protection	IP20

Dimension:

Application:

• Prevent costly outages, time-consuming repair work and expensive replacement of the luminaires.

• Used in a large number of applications where overall exposure to atmospheric phenomena is generally high: street lighting, tunnels, public lighting, stadiums, industries, etc.

• For LED applications prevent the destruction of sensitive ballasts caused by overload.

• It is widely used in LED lamps, tunnel lights, outdoor landscape lights and many other outdoor Lighting system.

Why need LED surge protector?

LED lights are more susceptible to surges and a lot more expensive to replace than conventional luminaires. Even if the luminaire continues to function, surges usually have a negative influence on its service life. Powerful surge arresters prevent damage and increase the service life of LED luminaires. This enables you to reduces the costs of maintenance and replacement of luminaires.

Installation:

It can be installed both in the connection box in pylons, as well as directly in front of the distribution board.

Our Service:

• OEM Manufacturing welcome: Product, Package.
• We will reply you for your inquiry in 24 hours.
• After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.

Factory images:

FAQ:

Q1: What's your offer validity period?
A: Price offered by our company will be good for 90 working days upon quotation email sent. And we'll keep you updated time.

Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3: What is your terms of delivery?
A: FOB, CFR, EXW, CIF, DDP, etc.

Q4: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5: What is the guarantee of the quality of your products?
A: We can accept any third party inspection.
