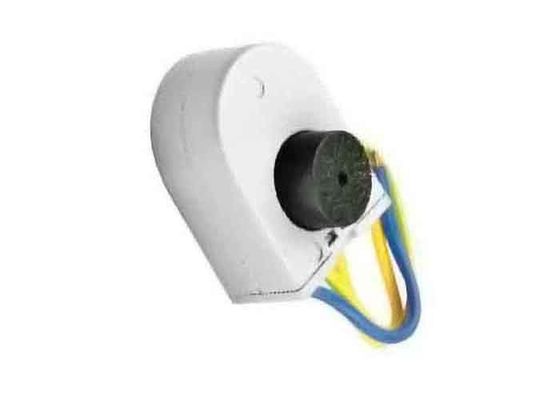

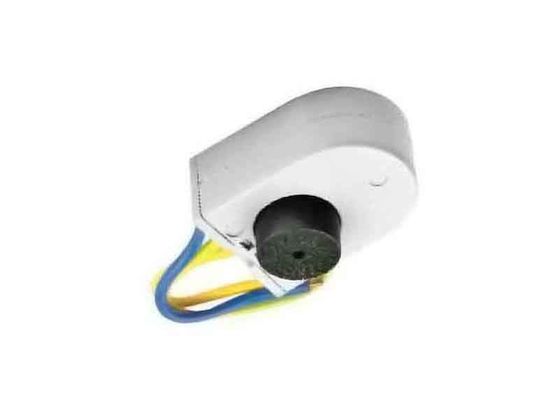

Name: 6kA LED Surge Protection Device 230V Surge Protection For LED Lighting
Brand: BRITEC
SKU: BR275-6-B
Price: 1 USD
Availability: InStock
Rating: 4.8 (136 reviews)

Home Products LED Surge Protection Device

6kA LED Surge Protection Device 230V Surge Protection For LED Lighting

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR275-6-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Type:	Type 3	Item Name:	LED Surge Protector
Material:	Thermal Plastic UL94-V0	Un:	230v
Uc:	AC 275V	Imax:	6kA
Uoc:	6kV	Up:	1.5 KV
Rated Frequency:	50/60 Hz	Protection:	IP20
High Light:	rccb circuit breaker , rcd residual current device

Lightning 6kA Surge Protector 230V Surge Protection for LED Lighting

6kA LED Surge Protection Device 230V Surge Protection Characteristic:

• Compact type 3 surge protector.

• This item is BR275-6-B.

• It provides surge protection up to 6Ka.

• EN 61643-11, IEC 61643-11 compliance.

• It is designed to operate through single phase.

• The operating condition of the arrester is signaled by buzzer.

• The high temperature, flame retardant plastic enclosure has an 80 degree Celsius maximum surface temperature rating.

6kA LED Surge Protection Device 230V Surge Protection Product detail:

	BR275-10-B
SPD classification according to EN61643-11	Type 3
SPD classification according to IEC 61643-11	Class III
AC system	TT-TN
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Max. continuous operating d.c. voltage Uc	300V
Nominal discharge current (8/20us) In	3kA
Max. discharge current (8/20 µs) Imax	6kA
Combined impulse Uoc	6kV
Voltage protection level Up	1.5 kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	BEEP
Technology	MOV+GDT
Enclosure materail	Thermal plastic UL94-V0
Connection to Network	wires
Mounting	AC outlet or screw terminal
Degree of protection	IP20
Failsafe behavior	Disconnection
Thermal disconnector	Internal

Dimension:

6kA LED Surge Protection Device 230V Surge Protection For LED Lighting 0

6kA LED Surge Protection Device 230V Surge Protection Application:

• Universal 230V applications.

• Protect the most sensitive components against line surges and transients.

• Used in conjunction with LED Drivers and fixtures to provide an additional level of protection against power-line disturbances in industrial, commercial and residential applications.

6kA LED Surge Protection Device 230V Surge Protection Installation:

Wall mounting and hard wired connection.
