Place of Origin: | China |
Brand Name: | BRITEC |
Model Number: | BR-POE-M |
Minimum Order Quantity: | 100 Piece/Pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 50000 Piece/Pieces Month |
Place Of Origin: | Zhejiang, China (Mainland) | Type: | Ethernet Network(LAN) |
---|---|---|---|
Model Number: | BR-POE-M | Brand: | BRITEC |
LED Indication: | NO | Color: | Black |
Classification: | Ethernet Network(LAN) | Application: | Power Transmission & Distribution Control System |
Class: | TYPE2 P1 | MOQ: | 100 Pcs |
Highlight: | dc surge suppressor,dc surge protector solar |

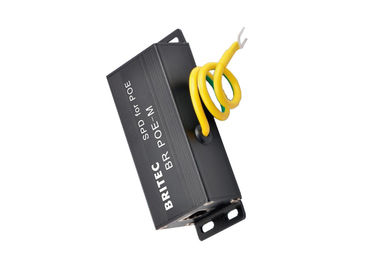

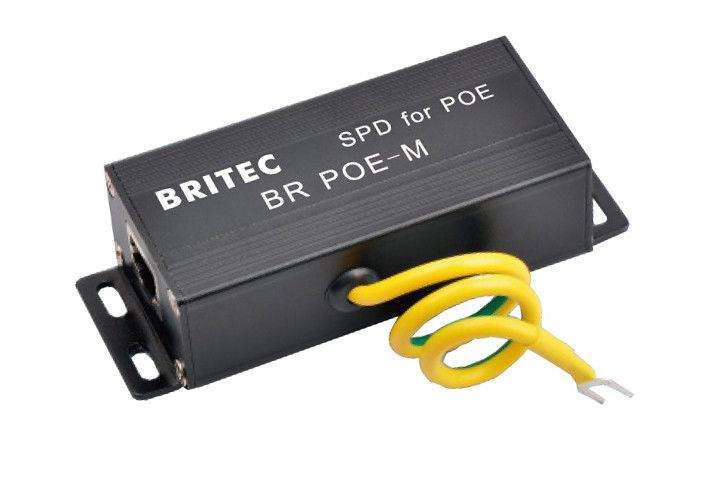

DC 48V Ethernet Network SPD rj45 POE Surge Protector Lightning TVSS
48V Ethernet Network DC Surge Protection Device SPD Characteristic:
48V Ethernet Network DC Surge Protection Device SPD Product detail:
BR-POE-M | |
Test standards | IEC 61643-21 |
SPD class | TYPE2 P1 |
Nominal voltage Un | 48V DC |
Max.continuous operating d.c.voltage Uc | 48V DC |
Max.continuous operating d.c.voltage pair-pair(Poe) Uc | 57V DC |
Nominal current at 45℃ IL | 1A |
D1 Lightning impluse current (10/350us)per line limp | 0.5kA |
C2 Nominal discharge current (8/20us)line-line In | 150A |
C2 Nominal discharge current (8/20us)line-PG In | 2.5kA |
C2 Total nominal discharge current (8/20us)line-PG In | 10kA |
C2 Nominal discharge current (8/20us)pair-pair(POE) In | 150A |
Voltage protection level pair-pair for In C2 Up | ≤180V |
Voltage protection level line-PG for In C2 Up | ≤500V |
Voltage protection level line-line for In C2(Poe) Up | ≤600V |
Insertion loss at 250MHz | ≤3dB |
Capacitance line-line C | ≤30pF |
Capacitance line-PG C | ≤25pF |
Operating temperature range Tu | -40℃…+80℃ |
Connection (input/output) | RJ45 socket/ RJ45 socket |
Pinning | 1/2,3/6,4/5,7/8 |
Degree of protection (plugged-in) | IP10 |
Q1. Is your company a manufacturer or a trader?
A: We are the manufacture, 17 years production experience, our factory has passed ISO9001, we have own quality control.
Q2. Do you have export experience?
A: More than 17 years export experience. Surge protection products have been exported to Malaysia, UK, Russia, Spain, France, Italy, UAE, Egypt, Bolivia, Argentina, Brazil etc.
Q3. How to choose products?
A: Standard products: Please select standard code according to the above reference file; Customized product: please tell us.
