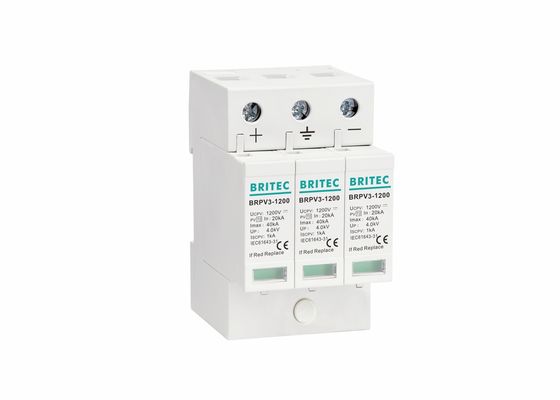

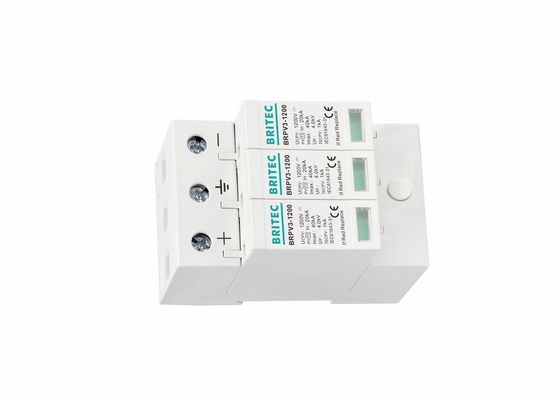

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor
Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor

Large Image :  Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRPV3-1200
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor

Description
Place Of Origin: Zhejiang, China (Mainland) Type: Type 2
Model Number: BRPV3-1200 Item Name: DC Surge Arrester
Material: Thermoplastic UL94-V0 Ucpv: 1200v
Pole Number: 3P Tu: -40℃-80℃
In: 20kA Standard: IEC61643-31
Highlight:

dc surge suppressor

,

dc surge protector solar

High Quality PV Surge Protector 3P Solar SPD 12000V DC Surge Arrestor



Mini Pv Dc Surge Protection Device 3p Solar Spd Characteristic:



• BRPV3-1200 surge protective device.
• Plug-in module.
• Anti-flame material.
• For DIN rail mounting.
• Design according to IEC and GB standard.
• Achieve remote control by communication.
• These SPDs are tested according to Class II.
• Nominal discharge current In 20 kA (8/20 µs).
• High energy MOVs equipped with specific thermal disconnections and related failure indicators.
• With specific thermal disconnects and failure indicator(visual indicator/ optional): green-good, red-replace.

Mini Pv Dc Surge Protection Device 3p Solar Spd Product detail:



3 Mod BRPV3-1200
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                     Ucpv 1200V
Nominal discharge current (8/20us)                              In 20kA
Max. discharge current (8/20us)                               Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                   Up ≤4.0kV
Response time                                                              tA ≤25ns
Operating temperature range                                       Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                   Thermoplastic UL94-V0
Degree of protection IP20

Dimension:

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor 0

Mini Pv Dc Surge Protection Device 3p Solar Spd Application:

• Protect against lightning surge voltages in solar system (photovoltaic power supply system).
• Applied to provide fine overvoltage protection of electronic equipment whose power is supplied by direct-current power supply.
• Used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.
• Widely used in the DC power lightning protection of solar power systems, mobile communication base stations, microwave communications bureau, telecommunications room, plant, civil aviation, finance, securities and other system.

Mini Pv Dc Surge Protection Device 3p Solar Spd Advantage:

• Anti-flame.
• Remote control.
• Easy to install wiring.
• Visual indicator window.
• Approved TUV certificate at IEC61643-31 standard.

Noted:

These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.

Workshop:

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor 1

Laboratory:

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor 2

Certifications:

Certificates: TUV, CE, CB, ISO9001, etc.

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor 3

Shipping:

Mini Pv Dc Surge Protection Device 3p Solar Spd 1200v Dc Surge Arrestor 4


FAQ:



Q1: What is your company's Main Products? You are the Manufacturer or the trader?
  A: Surge protection products. We're the Manufacturer with more than 17 years experience.


Q2: How can I get the Quotation of the products?
  A: Send your Message to us by E-mail, we'll reply you within 24 hours in the Working Time.


Q3: How does your company do regarding Quality Control?

  A: All raw material we selected the high quality one. Professional & Skilful workers care every details in handling the producing. Quality Control Department specially responsible for quality checking in each process.


Q4: Do you provide OEM Project Service?
  A: OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.


Q5: How Could I get the Sample?
  A: We are honored to offer you samples, but sample is not free.
