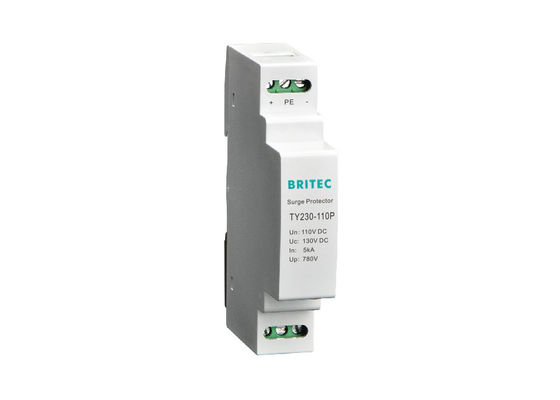

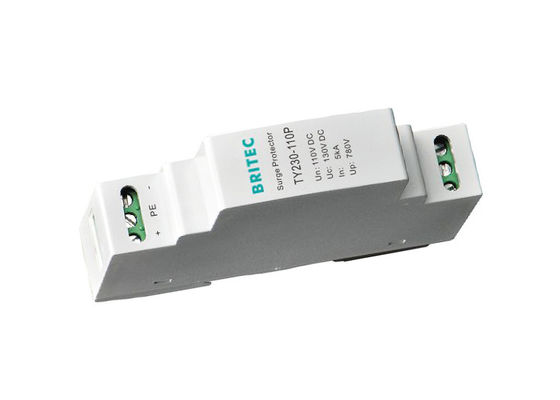

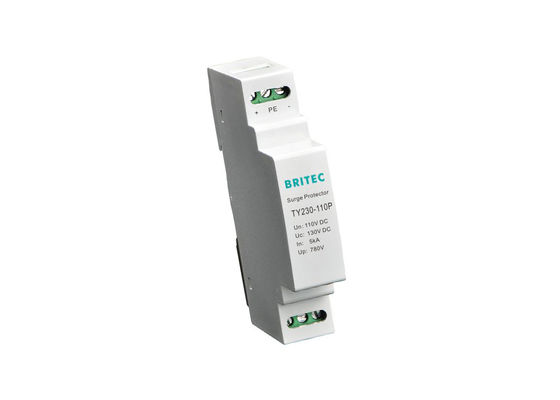

5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System

5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System

  • 5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System
  • 5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System
  • 5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System
5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRTY230-110P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Type: DC SPD
Model Number: BRTY230-110P Item Name: DC Surge Protector
Material: Thermal Plastic Un: 110V DC
Pole Number: 1P Tu: -40℃-80℃
In: 5kA Standard: IEC60898
High Light:

12v dc surge protector

,

dc surge protector solar



5KA SPD DC 110v Power in Line Surge Protector for Electrical Distribution System



5KA SPD 110v Power In Line DC Surge Protection Device Characteristic:



• DIN Rail mountable.
• Nominal Discharge Current: 5 kA.
• Max. Discharge Current (8/20) of 10 kA.
• Data network protector in accordance with IEC 61643-21.
• Works in an ambient temperature range of -40°C to +80°C.
• Contains a wide range of voltages: DC 12V, 24V, 36V, 48V, 110V.



5KA SPD 110v Power In Line DC Surge Protection Device Product detail:


Specification                                                       BRTY230-110P
Test standards IEC 61643-21
Nominal voltage                                               Un DC 110V
Max. Continuous Operating Voltage                Uc DC 130V
Leakage current ≤20µA
Nominal discharge current (8/20μs)                  In 5kA
Max. Discharge Current(8/20μs)                  Imax 10kA
Voltage protection level                                    Up ≤780V
Response time                                                  tA <25ns
Protection Mode "+"-PE/"-"-PE
Operating temperature range                           Tu -40℃-80℃
Enclosure material                         Thermal plastic UL94-V0
Degree of protection IP20



5KA SPD 110v Power In Line DC Surge Protection Device Application:

• Suited for use with telecommunication lines, data lines or industrial buses.
• Suitable for lightning protection of 12, 24, 48, 110V DC and broadcast line.
• Used for DC electrical distribution system, DC circuit of machine-room, DC electrical distribution cabinet, Equipment with DC power.

5KA SPD 110v Power In Line DC Surge Protection Device Advantage:

• Low residual voltage.
• Easy installation.
• React to voltage impulses in a few nanoseconds.

5KA SPD 110v Power In Line DC Surge Protection Device Installation:

• The power should be disconnected during the installation of the SPD.
• It is to be installed in series with the DC supply line, cutting the cables and connecting the positive and negative terminals to the corresponding connectors.
• It is essential to connect correctly the input and output terminals. Otherwise the SPD components will not work properly.



Our company:



Wenzhou Britec Electric Co., Ltd. We have the first-class production equipment and testing equipment. The related products have passed international certifications such as CE and TUV. At present, it has a series of AC surge protector, DC surge protection, data surge arrester, LED lightning arrester. High-standard products meet the diverse needs of the market.



5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System 0



Product line:



5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System 1



Shipping:



5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System 2



Payment:



5KA SPD 110v Power In Line DC Surge Protection Device For Electrical Distribution System 3



FAQ:



Q1. What's the payment term?
  A. We accept T/T, PAYPAL, etc.

Q2. What's the delivery time ?
  A. Usually it will take about 3 weeks for production.

Q3. What is the standard of package?
  A. Export standard package or special package according to customer requirement.

Q4. What kind of product quality your factory offer?
  A. We offer most competitive prices with best quality.

Q5. Do you accept OEM business?
  A. We accept OEM with your autherization.
